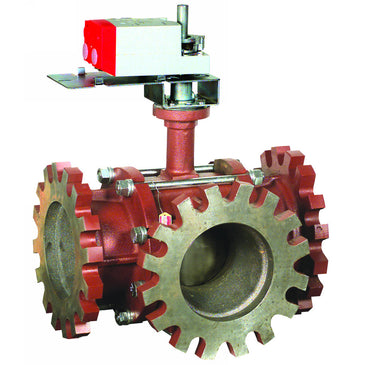

Honeywell VBF3L41SRB 6-Inch 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3L41SRB is a 6-inch, 3-way actuated control ball valve suitable for hot and chilled water control in HVAC systems. This valve can handle up to 50% glycol solutions in a closed-loop environment. The valve features ANSI Class 125 flanged connections and a durable cast iron body. It also has a Teflon seat along with a stem and ball made from 316 stainless steel. The flow characteristics are equal percentage or linear, and it includes a removable manual handle for operation.

• Weather protection with a NEMA 3R enclosure.
• Capacity rating of 346 Cv.
• Fluid temperature range from minus twenty-two degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is ideal for mixing or diverting control applications in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBF3L41SRB

Technical Specifications

• Valve Type: Control Ball Valve
• Connection Type: Flanged
• Pipe Size: Six inches
• Body Pattern: Three-way
• Capacity (Cv): 346 Cv
• Maximum Safe Operating Pressure: 240 psi
• Maximum Differential Pressure Ratings: 70 psi
• Fluid Temperature Range: -22 F to +250 F
• Controlled Fluid: Chilled or hot water with up to 50% glycol
• Materials (Body): Cast Iron
• Materials (Seat): Teflon
• Materials (Stem): 316 Stainless Steel
