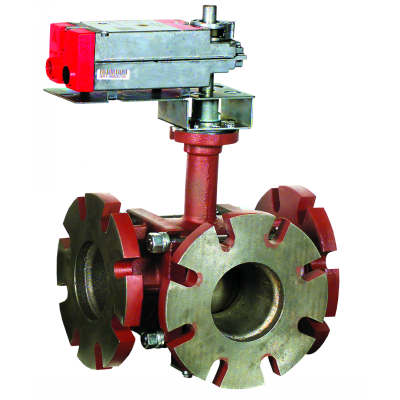

HONEYWELL VBF3L41S0X Three-Way Flanged Control Ball Valve

HONEYWELL
Brand: HONEYWELL
SKU: VBF3L41S0X
Ships in 4 - 5 Weeks
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$4,465.62
$4,465.62
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Honeywell VBF3L41S0X is a three-way control ball valve designed for HVAC systems. This assembly controls hot and chilled water, including solutions with up to fifty percent glycol. It is suitable for closed-loop systems and can perform both two-position and modulating functions.
  • ANSI Class 125 flanged connections
  • Stainless steel ball and stem
  • Non-isolating mixing or diverting control

Product Highlights

This valve is designed for equal percentage or linear flow characteristics, ensuring precise control in various applications.

Product Information

Standard Information

  • Brand: Honeywell
  • Control Valves Type: Ball Valve

Technical Specifications

  • Max Static Pressure: 240 PSI
  • Frequency: 50/60 Hz
  • Power Supply: 24V
  • Leakage: ANSI Class IV A-port seat leakage (0.01% of Cv)
  • Sizes: Ranges from four to six inches
