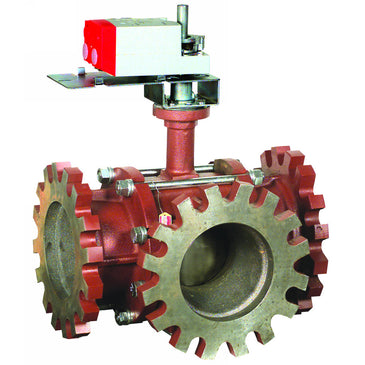

Honeywell VBF3L41S0B 6-Inch 3-Way Control Ball Valve

Product Description

The Honeywell VBF3L41S0B is a 6-inch, 3-way control ball valve. It is ideal for HVAC systems, controlling hot and chilled water along with glycol solutions in closed-loop setups. This valve features a flanged connection and uses a non-spring return modulating actuator. It can function as either a mixing or diverting valve. The valve ball and stem are made from 316 stainless steel.

• Features ANSI Class 125 flanged connections.
• Offers equal percentage or linear flow characteristics.
• Suitable for 2-position, floating, or modulating actuators.

Product Highlights

This control ball valve is essential for many HVAC applications, ensuring reliable performance in various heating and cooling tasks.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3L41S0B

Technical Specifications

• Valve Size: 6 inches
• Valve Piping: 3-Way
• Connection: Flanged
• CV: 346
• Fail-Safe: Non-Spring Return
• Actuator: MN7234A2008
• Voltage: 24VAC
• Power Supply: 24V
• Frequency: 50/60 Hz
• Feedback Signal: 2-10VDC
• Control Signal: On/Off, Floating, 0-10VDC, 2-10VDC, 4-20mA
• Max Static Pressure: 240 PSI
• Close-Off Rating: 70 PSI
• Nema Rating: Nema 2
• Runtime: 95 seconds
• Trim: Stainless Steel
