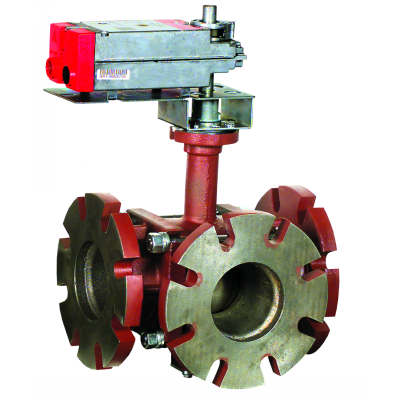

HONEYWELL VBF3L21S0X Control Ball Valve 3-Way 6 inch Flanged

Product Description

The Honeywell VBF3L21S0X is a 3-way control ball valve for managing hot and chilled water in HVAC systems. This valve is compatible with up to fifty percent glycol solutions. It has flanged connections and a flow coefficient of 268 Cv. The body is made from durable stainless steel, enabling it to function effectively as either a mixing or diverting valve.

• 6 inch ANSI Class 125 flanged connections
• Valve ball and stem constructed from 316 stainless steel
• Suitable for medium temperatures from minus thirty to one hundred twenty degrees Celsius

Product Highlights

This valve is designed for two-position on/off actuators, as well as three-position floating or modulating actuators, making it versatile for various applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3L21S0X

Technical Specifications

• Model: P1911921
• Max Static Pressure: 240 PSI
• Frequency: 50/60 Hz
• Position: Normally Closed
