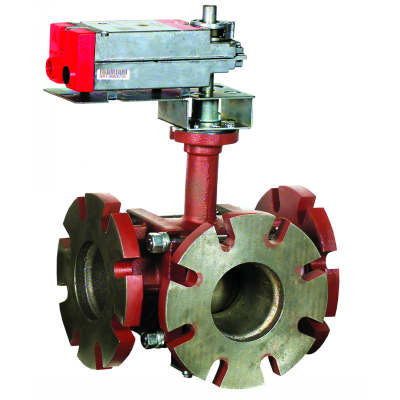

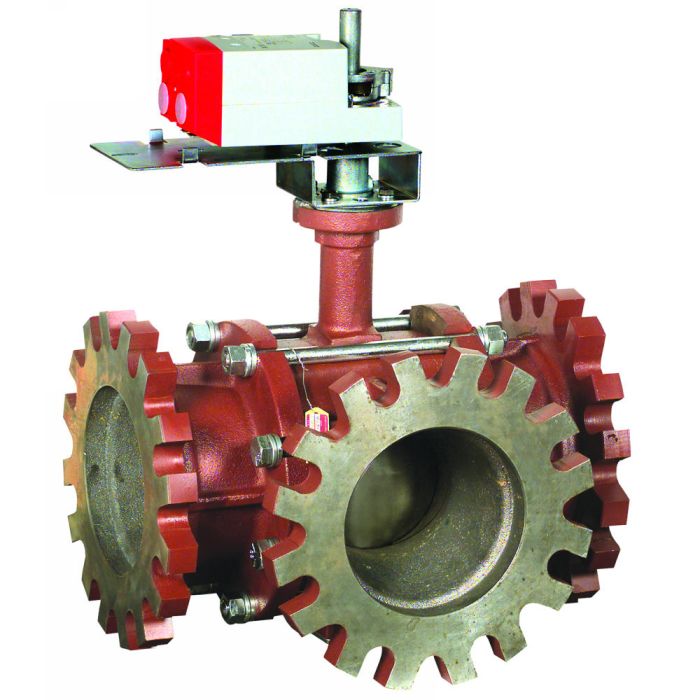

Honeywell VBF3L21S0B 3-Way Control Ball Valve

Product Description

The Honeywell VBF3L21S0B is a 3-way control ball valve made for managing hot and chilled water in HVAC systems. This valve is compatible with up to 50% glycol solutions. It supports both two-position and modulating functions, making it versatile for various applications.

• ANSI Class 125 flanged connections.
• Equal percentage or linear flow characteristics.
• Includes a removable manual operating handle.

Product Highlights

The valve is durable and suitable for closed-loop systems. It can be used as a mixing or diverting valve, depending on your needs.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3L21S0B

Technical Specifications

• Model: P1911921
• Flow Characteristic: Port A To AB: Equal Percentage/ Port B To AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22 F To 250 F (-30 C To 121 C)
• Close Off Pressure: 70 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
• Service: Hot And Chilled Water with Glycol Solutions Up To 50%
