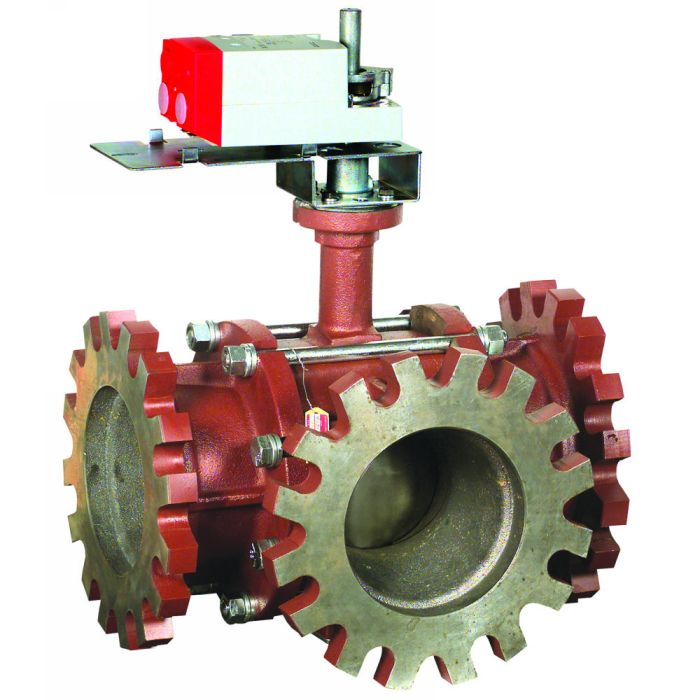

HONEYWELL VBF3L11S0D 3-Way Control Ball Valve

Product Description

The Honeywell VBF3L11S0D is a 3-way control ball valve suitable for managing hot and chilled water with up to 50% glycol solutions in closed-loop HVAC systems. This valve features a flanged connection and can function in either two-position or modulating applications. Constructed with a cast iron body, Teflon seat, and 316 stainless steel stem, it is designed for durability and reliability in demanding environments.

• ANSI Class 125 flanged connections.
• Equal percentage or linear flow characteristics.
• Compatible with 2-P on/off actuators and 3-P floating or 0-10Vdc modulating actuators.

Product Highlights

Ideal for HVAC applications where efficient control of fluid flow is required.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VBF3L11S0D
• Model: P1911921
• Control Valves Type: Ball Valve
• Service: Hot and Chilled Water with Glycol Solutions Up to 50%
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
• Max Static Pressure: 240 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Position: Normally Closed
