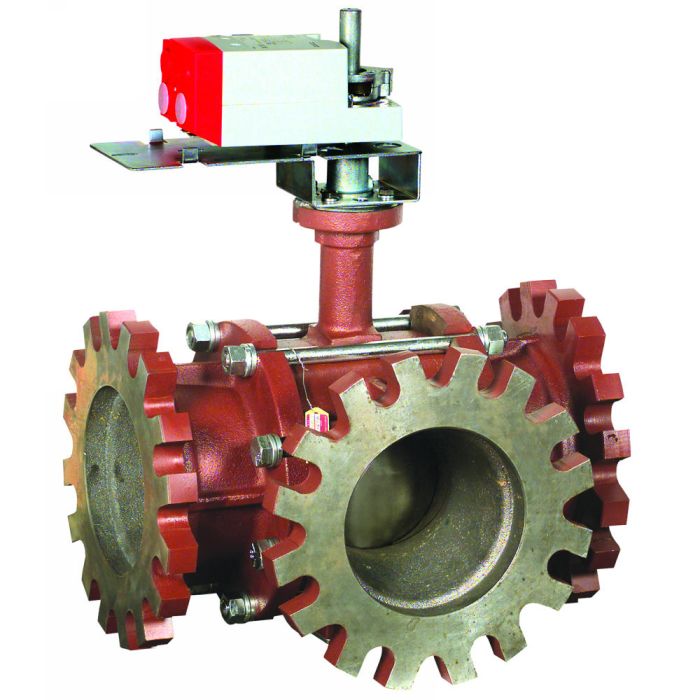

Honeywell VBF3L11S0B 3-Way Ball Valve

Product Description

The Honeywell VBF3L11S0B is a three-way ball valve designed for effective control of hot and chilled water, including up to fifty percent glycol solutions in closed-loop HVAC systems. This valve features a flanged connection that allows for reliable installation. It supports both two-position and modulating functions, making it versatile for various applications.

• ANSI Class 125 flanged connections
• Offers equal percentage or linear flow characteristics
• Compatible with on/off, floating, or modulating actuators

Product Highlights

This product is ideal for HVAC professionals needing precise control in their systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3L11S0B

Technical Specifications

• Valve Size: 6 inches
• Valve Piping: 3-Way
• Connection: Flanged
• CV: 208
• Close Off Pressure: 70 psi
• Max Static Pressure: 240 psi
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Service: Hot and chilled water with glycol solutions up to 50%
• Flow Characteristic: Port A to AB: Equal percentage / Port B to AB: Linear with 20% reduced flow capacity
• Voltage: 24VAC
• Frequency: 50/60 Hz
• Fail-Safe: Non-spring return
• Actuator: MN7234A2008
• Control Signal: On/Off, Floating, 0-10VDC, 2-10VDC, 4-20mA
• Runtime: 95 seconds
• Trim: Stainless steel
• Position: Normally closed
