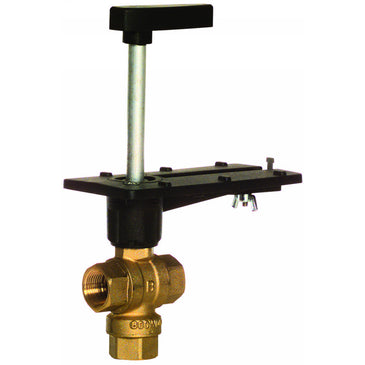

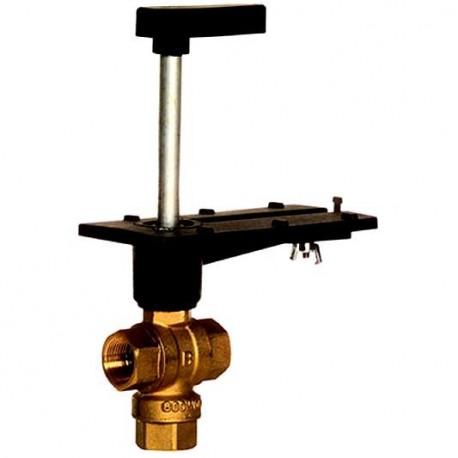

Honeywell VBF3KU1S0X Three-Way Flanged Control Ball Valve

Product Description

The Honeywell VBF3KU1S0X is a three-way flanged control ball valve designed for HVAC systems. It effectively manages hot and chilled water, including solutions with up to fifty percent glycol. This valve supports both two-position and modulating functions.

• Use for mixing or diverting control applications.
• ANSI Class 125 flanged connections.
• Constructed with a 316 stainless steel ball and stem.

Product Highlights

This valve features ANSI Class 125 connections, making it versatile for various installations.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBF3KU1S0X

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: From four to six inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear flow
• Actuation Control Schemes: Factory-installed options include Floating, Modulating (2-10 V), 24V 2-Position, Spring Return Modulating/Floating
• Fail-Safe Position: Configurable for normally open or closed
• Manual Operation: Removable handle for operation during power failure
• Seat Leakage: ANSI Class IV A-port leakage (0.01% of Cv)
• Enclosure: Optional NEMA 3R (IP54) rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from ninety-one to six hundred fifty
• Material: Valve ball and stem made of 316 stainless steel
• Control: Non-isolating mixing or diverting control
