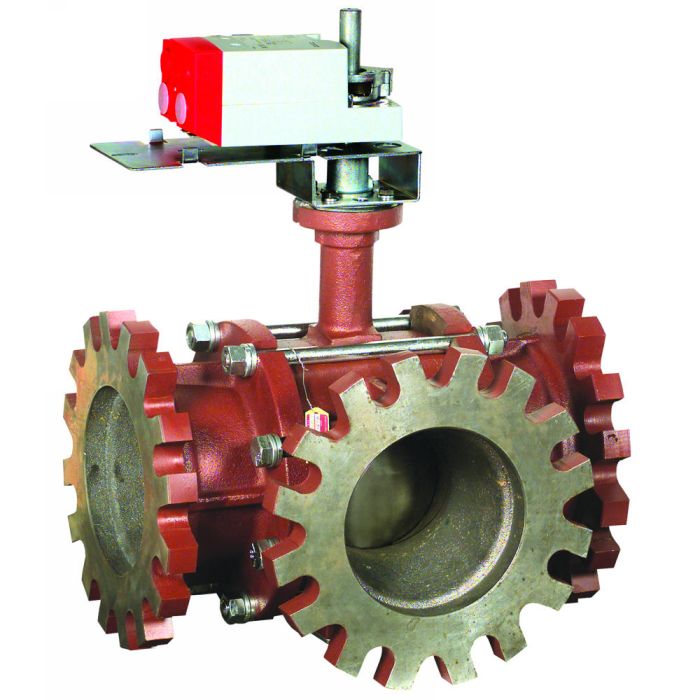

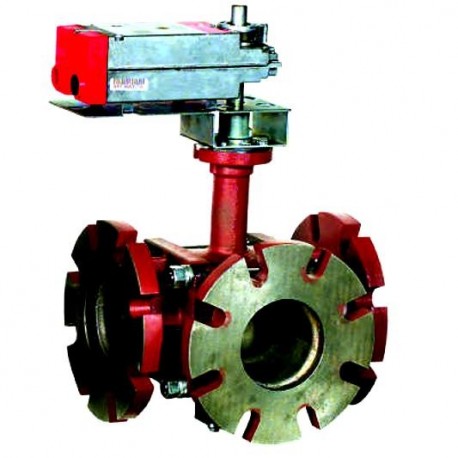

HONEYWELL VBF3KU1S0D 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3KU1S0D is a 3-way actuated control ball valve ideal for controlling hot and chilled water with glycol solutions in closed-loop HVAC systems. This valve can function in either two-position or modulating modes.

• Suitable for use with hot and chilled water up to 50% glycol.
• ANSI Class 125 flanged connections included.
• Provides non-isolating mixing or diverting control.

Product Highlights

The Honeywell VBF3KU1S0D valve is constructed from durable cast iron with a Teflon seat and a stainless steel stem. It supports various actuator mounting options and can be configured for either normally open or normally closed fail-safe positions.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3KU1S0D

Technical Specifications

• Control Valves Type: Ball Valve
• Service: Hot And Chilled Water w/Glycol Solutions Up To 50%
• Operating Temperature: -22 F To 250 F
• Close Off Pressure: 70 psi
• Sizes: From 4 to 6 inch
• Flow Characteristics: Equal percentage or linear flow characteristics
• Actuation Control Schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating
• Fail-safe Position: Field configurable
• A-port Seat Leakage: ANSI Class IV
• Enclosure: Optional NEMA 3R
• Cv Choices: Range from 91 to 650
• Valve Ball and Stem Material: 316 stainless steel
