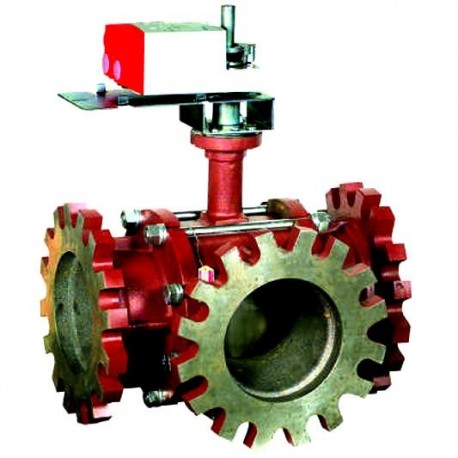

Honeywell VBF3KU1S0B 3-Way Flanged Control Ball Valve

Product Description

The Honeywell VBF3KU1S0B is a three-way ball valve designed for hot and chilled water control in HVAC systems, handling solutions with up to 50% glycol. It is suitable for both mixing and diverting control. The valve meets ANSI Class 125 standards for flanged connections and includes a durable 316 stainless steel ball and stem.

• Operates with a 24V power supply at 50/60 Hz.
• Can be configured for normally open or normally closed fail-safe positions.
• Removable manual operating handle for installation or power failure operation.

Product Highlights

Reliable solution for controlling fluid flow in HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3KU1S0B

Technical Specifications

• Max Static Pressure: 240 PSI
• Position: Normally Closed
• Power Supply: 24V
• Frequency: 50/60 Hz
• Sizes: From 4 to 6 inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options available
• Fail-Safe Position: Configurable for normally open or closed
• Seat Leakage: ANSI Class IV A-port seat leakage (0.01% of Cv)
• Enclosure: Optional NEMA 3R rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from 91 to 650
• Valve Ball and Stem: 316 stainless steel construction
• Control: Non-isolating mixing or diverting
