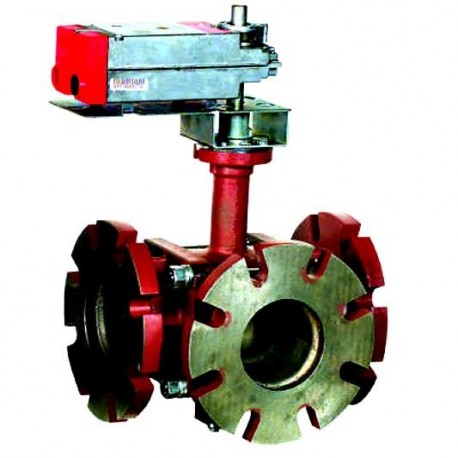

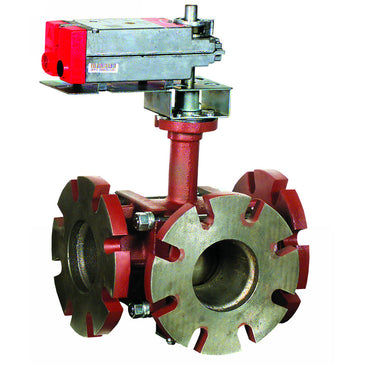

Honeywell VBF3K41S0C 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3K41S0C is a 3-way actuated control ball valve. It is built for managing hot and chilled water with glycol solutions in closed-loop HVAC systems. This valve has two-position and modulating functions for effective mixing or diverting control.

• Manufactured with ANSI Class 125 flanged connections.
• Made with a durable 316 stainless steel ball and stem.
• Configurable for normally open or closed fail-safe positions.

Product Highlights

This valve is essential for HVAC systems that require precise control over fluid flow.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3K41S0C

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: from 4 to 6 inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear flow
• Actuation Control Schemes: Four factory-installed options including Floating and Modulating
• Fail-Safe Position: Configurable for normally open or closed
• Manual Operation: Includes a removable manual operating handle
• Seat Leakage: ANSI Class IV A-port (0.01% of Cv)
• Enclosure: Optional NEMA 3R (IP54) rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Ranges from 91 to 650
• Ball and Stem Material: 316 stainless steel
• Control Type: Non-isolating mixing or diverting control
