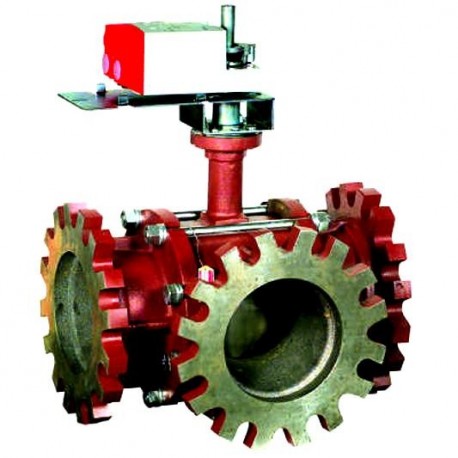

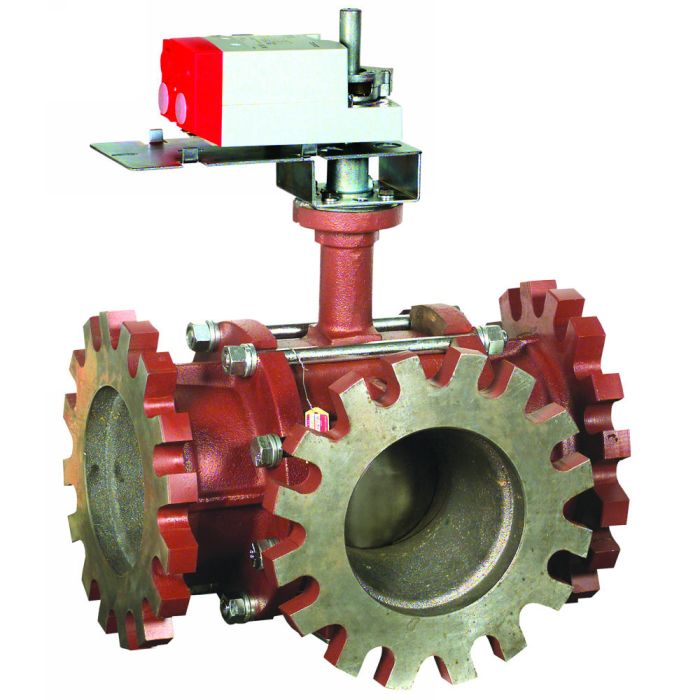

Honeywell VBF3K41S0B Three-Way Ball Valve Assembly

Product Description

The Honeywell VBF3K41S0B is a three-way ball valve assembly designed for controlling hot and chilled water in HVAC systems. This valve supports glycol solutions up to fifty percent in closed systems. It features a cast iron body and Teflon seat, along with a stem and ball made from 316 stainless steel, which ensures durability and reliability.

• Suitable for mixing or diverting control applications.
• Available in sizes ranging from four to six inches, compatible with ANSI Class 125 flanged connections.
• Operating temperature range from negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

The valve includes a removable manual operating handle and is configured for both two-position and modulating functions.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3K41S0B

Technical Specifications

• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with twenty percent reduced flow capacity
• Operating Temperature: Negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close Off Pressure: seventy psi
