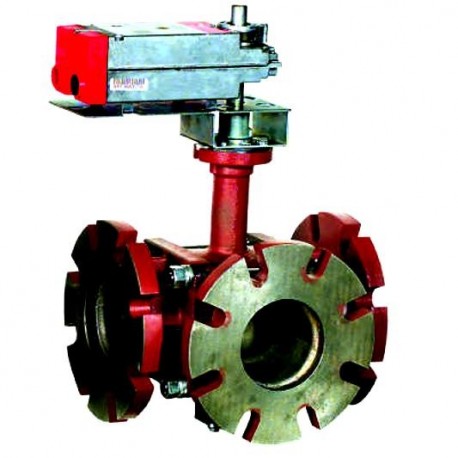

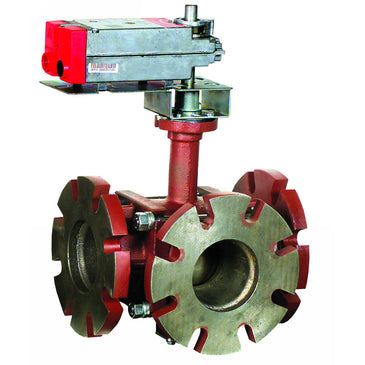

Honeywell VBF3K31S0D 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3K31S0D is a 3-way ball valve designed for use in HVAC systems to control hot and chilled water and glycol solutions. This unit supports both two-position and modulating functions. The valve includes ANSI Class 125 flanged connections and is available in sizes from four inches to six inches. It can be set up for non-isolating mixing or diverting control.

• Suitable for mixing or diverting control
• Features ANSI Class 125 flanged connections
• Constructed with a valve ball and stem made of 316 stainless steel

Product Highlights

This valve is ideal for controlling fluid flow in various HVAC applications, featuring a robust construction to withstand demanding environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3K31S0D

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: From 4 to 6 inches
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options available
• Fail-Safe Position: Configurable to normally open or normally closed
• Manual Operation: Removable handle for manual control
• Seat Leakage: ANSI Class IV leakage
• Enclosure: Optional NEMA 3R rated for outdoor use
• Actuator Mounting Positions: Four mounting options available
• Cv Choices: Range from 91 to 650
• Valve Ball and Stem: 316 stainless steel
• Control: Non-isolating mixing or diverting
