HONEYWELL VBF3K31S0B 3-Way Flange Actuated Control Ball Valve

Product Description

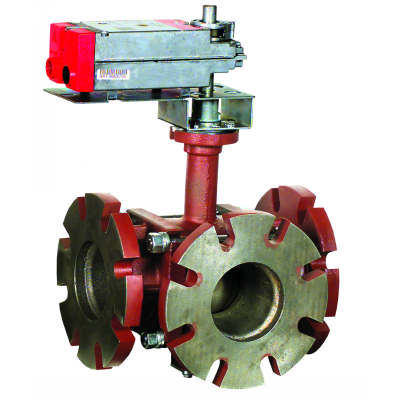

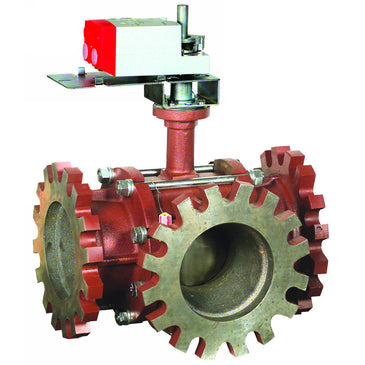

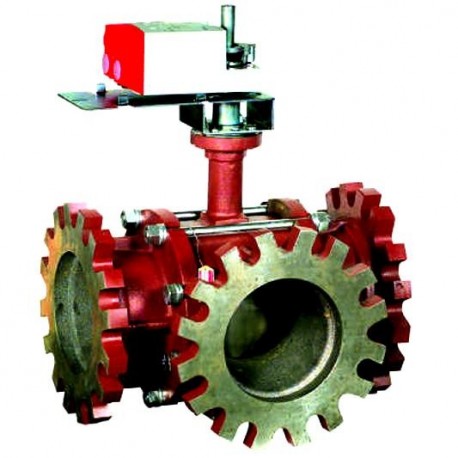

The Honeywell VBF3K31S0B is a three-way ball valve designed for HVAC systems. It controls hot and chilled water with up to fifty percent glycol solutions in closed-loop setups. This valve offers two-position or modulating functions and features flanged connections made from stainless steel.

• ANSI Class 125 flanged connections for secure fittings.
• Equal percentage or linear flow characteristics for precise control.
• Valve ball and stem made from durable 316 stainless steel.

Product Highlights

This valve is suitable for mixing or diverting control in HVAC applications, ensuring reliable operation under various conditions.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3K31S0B

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: Flange
• Pattern: 3-way
• Size: 3 inches
• Cv: 309 CV
• Trim Material: Stainless Steel
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
