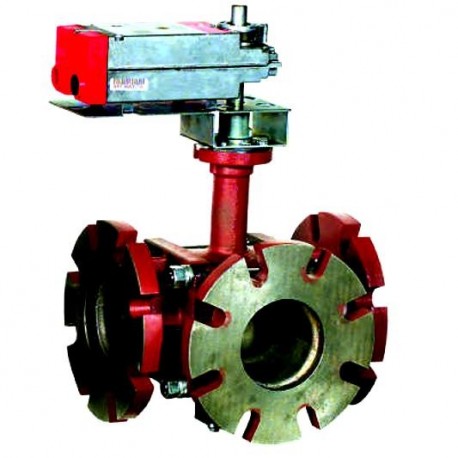

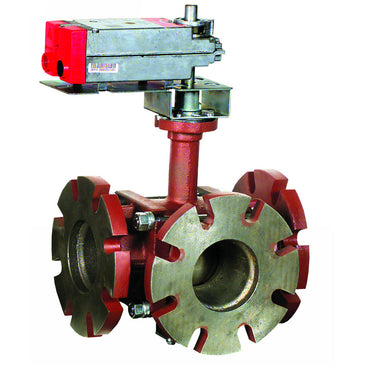

Honeywell VBF3K11S0D 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3K11S0D is a three-way flanged ball valve designed for controlling hot and chilled water in HVAC systems. It can manage up to fifty percent glycol solutions in closed-loop systems. This valve supports two-position and modulating functions, offering flexibility in application.

• Field configurable for normally open or normally closed fail-safe positions.
• Removable manual operating handle for control during installation or power failure.
• Sizes range from four to six inches with ANSI Class 125 flanged connections.

Product Highlights

The valve offers robust construction with a stainless-steel ball and stem. It efficiently provides equal percentage or linear flow characteristics, making it suitable for non-isolating mixing or diverting control.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3K11S0D

Technical Specifications

• Control Valves Type: Ball Valve
• Flow characteristics: Equal percentage or linear flow
• Actuation control schemes: Four factory-installed options
• Fail-safe position: Configurable for normally open or closed
• Seat leakage: ANSI Class IV
• Actuator mounting positions: Four options available
• Cv choices: Ranging from ninety-one to six hundred fifty
• Valve ball and stem material: 316 stainless steel
