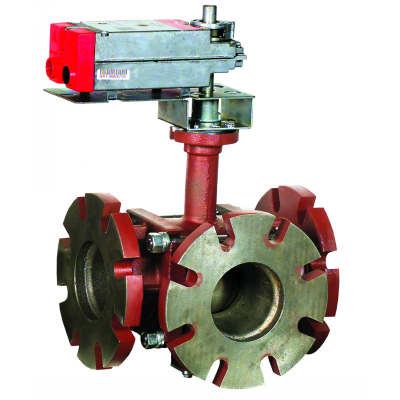

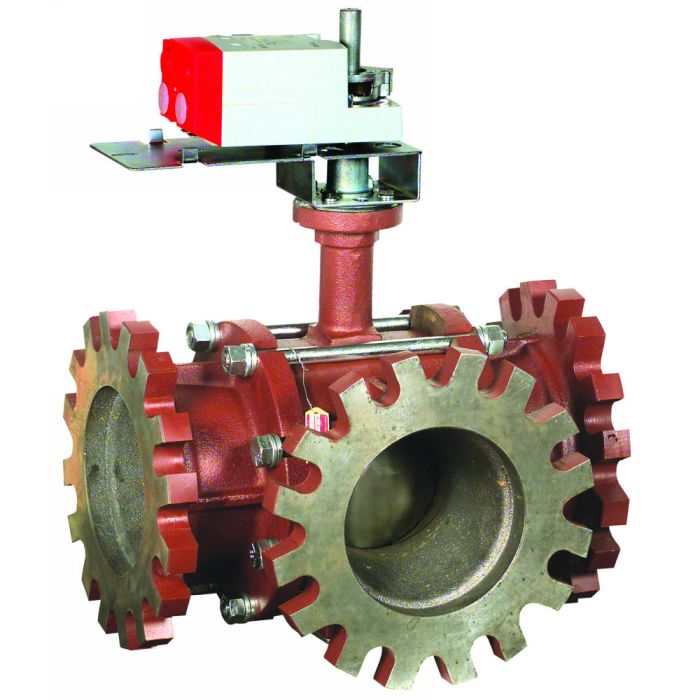

HONEYWELL VBF3K11S0B 3-Way Control Ball Valve

Product Description

The Honeywell VBF3K11S0B is a three-way control ball valve designed for managing hot and chilled water in HVAC systems. This valve is compatible with up to 50% glycol solutions, making it versatile for various applications.

• ANSI Class 125 flanged connections
• Equal percentage and linear flow characteristics
• Suitable for hot and chilled water service

Product Highlights

This valve features a robust cast iron body with a Teflon seat and a durable stainless steel stem. It comes with a removable manual operating handle for easy operation.

Product Information

Standard Information

• Brand: Honeywell
• Control Valve Type: Ball Valve

Technical Specifications

• Flow Characteristic: Port A To AB: Equal Percentage / Port B To AB: Linear with Reduced Flow Capacity
• Operating Temperature: Negative twenty-two degrees Fahrenheit To Two hundred fifty degrees Fahrenheit
• Close Off Pressure: Seventy psi
• Power Supply: Twenty-four volts
• Frequency: Fifty / Sixty Hertz
• Max Static Pressure: Two hundred forty psi
• Position: Normally Closed
