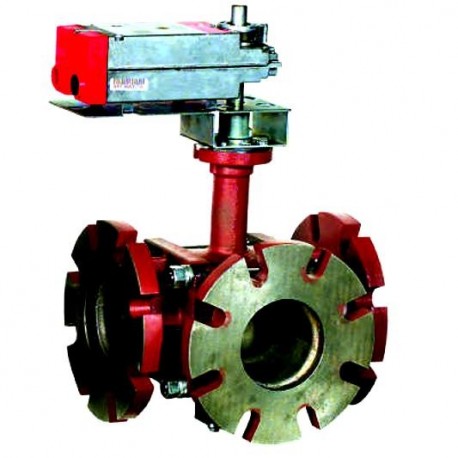

Honeywell VBF3JU1S0D 3-Way Actuated Control Ball Valve
Ships in 4 - 5 Weeks
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
- $2,718.80
- $2,718.80
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe Honeywell VBF3JU1S0D is a 3-way actuated control ball valve that manages hot and chilled water, including up to 50% glycol solutions, in closed-loop HVAC systems. This valve is available in sizes from four to six inches and uses ANSI Class 125 flanged connections.
- Removable manual operating handle included.
- Configurable for normally open or normally closed fail-safe positions.
- Compatible with various types of actuators including 2-P on/off, 3-P floating, and 0 to 10Vdc modulating actuators.
Product Highlights
This valve is suitable for both mixing and diverting control applications.Product Information
Standard Information
-
Manufacturer: Honeywell
-
Part Number: VBF3JU1S0D
Technical Specifications
-
Control Valves Type: Ball Valve
-
Service: Hot and chilled water with glycol solutions up to 50%
-
Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% reduced flow capacity
-
Operating Temperature: -22 F to 250 F (-30 C to 121 C)
-
Close Off Pressure: 70 psi
-
Sizes: from four to six inches with ANSI Class 125 flanged connections
-
Fail-safe position: Field configurable for normally open or normally closed
-
Seat Leakage: ANSI Class IV A-port seat leakage (0.01% of Cv)
-
Enclosure: Optional NEMA 3R (IP54) rated for outdoor applications
-
Actuator Mounting Positions: Option of four positions available
-
Valve Ball and Stem: 316 stainless steel
-
Control: Non-isolating mixing or diverting control
- Removable manual operating handle included.
- Configurable for normally open or normally closed fail-safe positions.
- Compatible with various types of actuators including 2-P on/off, 3-P floating, and 0 to 10Vdc modulating actuators.
Product Highlights
This valve is suitable for both mixing and diverting control applications.Product Information
Standard Information
- Manufacturer: Honeywell
- Part Number: VBF3JU1S0D
Technical Specifications
- Control Valves Type: Ball Valve
- Service: Hot and chilled water with glycol solutions up to 50%
- Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% reduced flow capacity
- Operating Temperature: -22 F to 250 F (-30 C to 121 C)
- Close Off Pressure: 70 psi
- Sizes: from four to six inches with ANSI Class 125 flanged connections
- Fail-safe position: Field configurable for normally open or normally closed
- Seat Leakage: ANSI Class IV A-port seat leakage (0.01% of Cv)
- Enclosure: Optional NEMA 3R (IP54) rated for outdoor applications
- Actuator Mounting Positions: Option of four positions available
- Valve Ball and Stem: 316 stainless steel
- Control: Non-isolating mixing or diverting control
