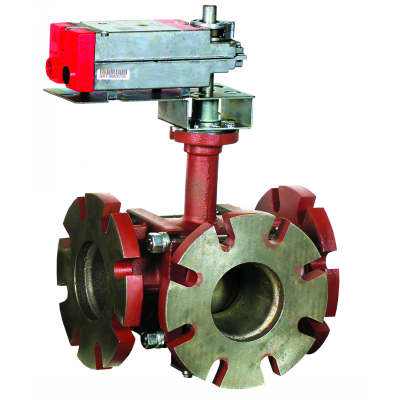

Honeywell VBF3JU1S0C 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3JU1S0C is a 3-way actuated control ball valve intended for controlling hot and chilled water in HVAC systems, suitable for closed-loop applications with up to fifty percent glycol solutions. This valve features flanged connections compatible with ANSI Class 125, making it a reliable choice for various applications.

• Can function as a mixing or diverting valve.
• Equipped with a spring return actuator.
• Field configurable for normally open or normally closed fail-safe positions.

Product Highlights

This valve is customizable for either two-position or modulating control, providing flexibility in system integration.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3JU1S0C

Technical Specifications

• Control Valves Type: Ball Valve
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
• Valve Size: 4 inches
• Flow Coefficient (Cv): 152
