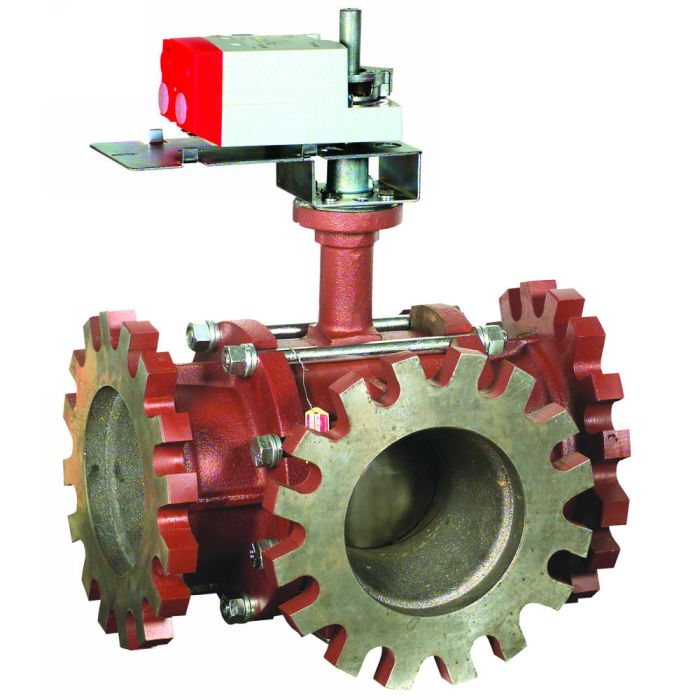

Honeywell VBF3JU1S0B 4-Inch 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3JU1S0B is a 4-inch, 3-way control ball valve ideal for HVAC systems. This valve is effective for managing hot and chilled water flows, even with up to fifty percent glycol solutions in closed-loop setups.

• Flanged connection facilitates easy installation.
• Compatible with on/off, floating, or modulating actuators.
• Features a robust cast iron body with stainless steel trim.

Product Highlights

The Honeywell VBF3JU1S0B provides high performance for managing HVAC systems efficiently.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VBF3JU1S0B
• Model: P1911921
• Valve Size: Four inches
• Valve Piping: 3-Way
• Connection: Flanged
• Cv: One hundred fifty-two
• Actuator: MN7510A2001
• Fail-Safe: Non-Spring Return
• Voltage: Twenty-four vac
• Power Supply: Twenty-four volts
• Frequency: Fifty/Sixty Hertz
• Control Signal: On/Off, Floating, Zero to ten VDC, Two to ten VDC, Four to twenty mA
• Feedback Signal: Two to ten VDC
• Close Off Pressure: Seventy psi
• Close-Off Rating: Seventy PSI
• Max Static Pressure: Two hundred forty PSI
• Operating Temperature: Negative twenty-two Fahrenheit to two hundred fifty Fahrenheit (Negative thirty Celsius to one hundred twenty-one Celsius)
• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with twenty percent reduced flow capacity
• Nema Rating: Nema 2
• Position: Normally Closed
• Runtime: Ninety-five seconds
• Trim: Stainless steel
• Linkage: Standard flange valve linkage
