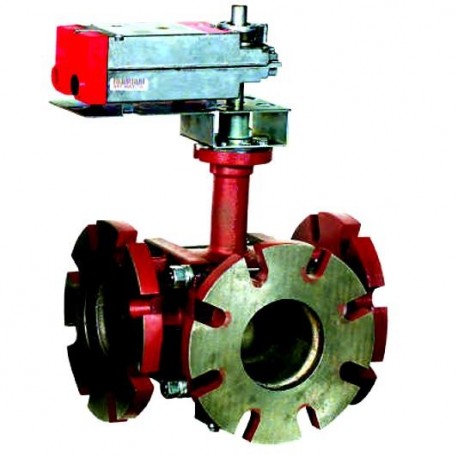

Honeywell VBF3JT1S0D 3-Way Actuated Control Ball Valve

HONEYWELL
Brand: HONEYWELL
SKU: VBF3JT1S0D
Ships in 4 - 5 Weeks
$2,379.22
$2,379.22
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Honeywell VBF3JT1S0D is a 3-way actuated control ball valve designed for precise control of hot and chilled water with up to fifty percent glycol solutions in closed-loop HVAC systems. This valve supports both two-position and modulating functions, enhancing the efficiency and flexibility of your HVAC setup. It features ANSI Class 125 flanged connections and is available in sizes from four to six inches. The valve provides non-isolating mixing or diverting control with equal percentage or linear flow characteristics. It also includes a removable manual operating handle for added convenience.

  • Controls hot and chilled water with up to fifty percent glycol solutions.
  • Offers two-position or modulating functions.
  • Constructed with 316 stainless steel valve ball and stem for durability.

Product Highlights

This valve is suitable for various HVAC applications, ensuring efficient handling of fluid in both hot and chilled water systems.

Product Information

Standard Information

  • Manufacturer: Honeywell
  • Brand: Honeywell
Technical Specifications
Manufacturer Part Number
VBF3JT1S0D
Control Valves Type
Ball Valve
Sizes
From four to six inches with ANSI Class 125 flanged connections.
Flow characteristics
Equal percentage or linear flow characteristics.
Actuation control schemes
Choice of four factory-installed actuation control schemes including Floating, Modulating (2-10 V), Spring Return 24V 2-Position, and Spring Return Modulating/Floating.
Fail-safe position
Field configurable for normally open or normally closed positions.
Manual operation
Removable manual operating handle included.
Seat leakage
ANSI Class IV A-port seat leakage (0.01% of Cv).
Enclosure
Optional NEMA 3R (IP54) rated for outdoor use.
Actuator mounting positions
Option of four positions on the valve.
Cv choices
Range from 91 to 650.
Valve ball and stem
Made of 316 stainless steel.
Control
Non-isolating mixing or diverting control.
Condition
New
Unit of Measurement
EA (Each)
Production Status
Active
