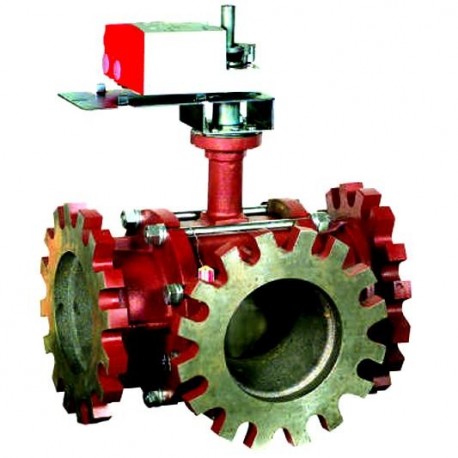

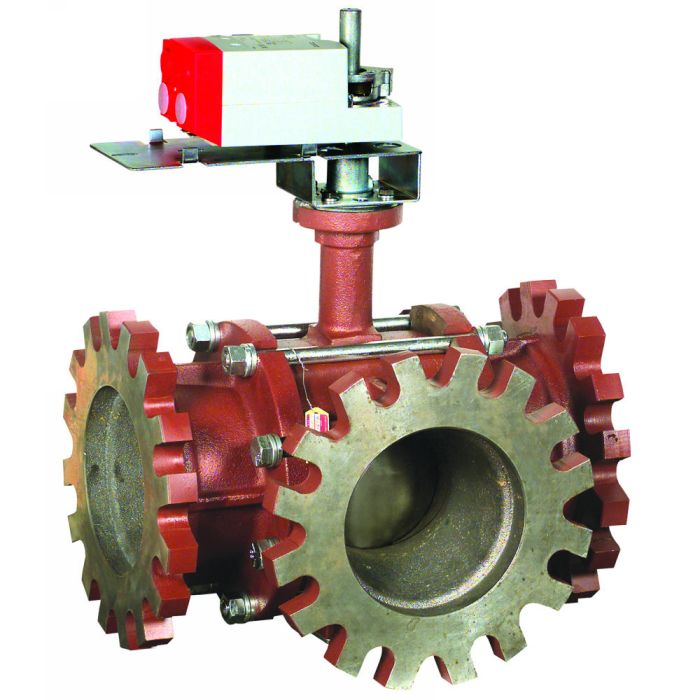

Honeywell VBF3JT1S0B Three-Way Ball Valve Assembly

Product Description

The Honeywell VBF3JT1S0B is a three-way ball valve assembly suitable for controlling hot and chilled water in HVAC systems. It is compatible with up to 50% glycol solutions, making it versatile for various applications.

• Designed for two-position or modulating functions.
• Features a cast iron body and Teflon seat.
• Includes a removable manual operating handle.

Product Highlights

This valve assembly offers equal percentage or linear flow characteristics, ensuring efficient operation in HVAC setups.

Product Information

Standard Information

• Valve Type: Ball Valve
• Number of Ways: 3-Way

Technical Specifications

• Nominal Size: 4 inches
• Flow Coefficient (Cv): 118
• Body Material: Cast Iron
• Seat Material: Teflon
• Stem Material: 316 Stainless Steel
• Service: Hot and Chilled Water with Glycol Solutions up to 50%
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22°F to 250°F (-30°C to 121°C)
• Close Off Pressure: 70 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 psi
• Position: Normally Closed
