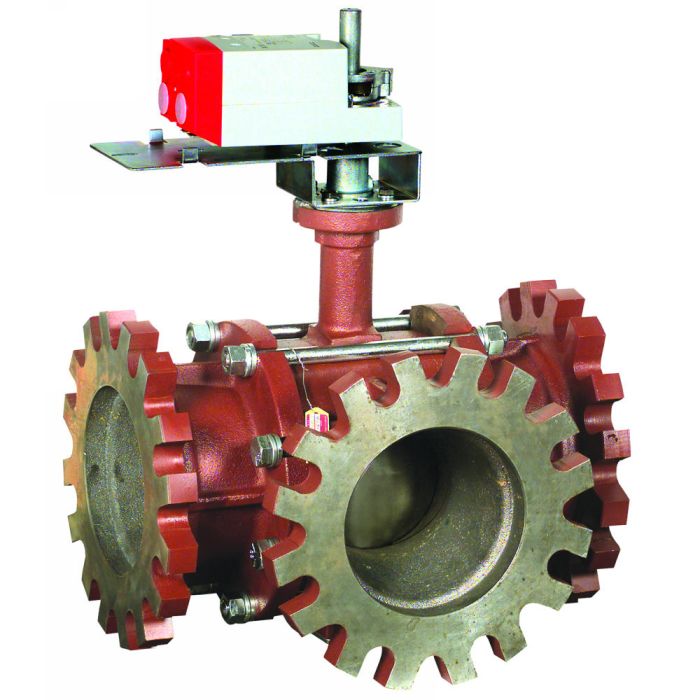

HONEYWELL VBF3JS1SRB 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3JS1SRB is a versatile 3-way flanged ball valve suitable for modulating control applications. This valve features a durable cast iron body, a Teflon seat for enhanced sealing, and a 316 stainless steel stem making it ideal for various fluid handling tasks. It can effectively manage hot and chilled water, including glycol solutions up to a fifty percent concentration. The valve can operate as a mixing or diverting valve based on system requirements. Designed for compatibility with actuators, it includes a NEMA 3R enclosure for effective weather protection.

• Manufactured with ANSI Class 125 flanged connections.
• Operates efficiently in temperature ranges from negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit.
• Close off pressure rated at seventy psi.

Product Highlights

This ball valve suits applications requiring reliable fluid control in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VBF3JS1SRB
• Model: P1911921
• Control Valve Type: Ball Valve
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with twenty percent reduced flow capacity
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
• Service: Hot and chilled water with glycol solutions up to 50%
• Connection Type: Flange
