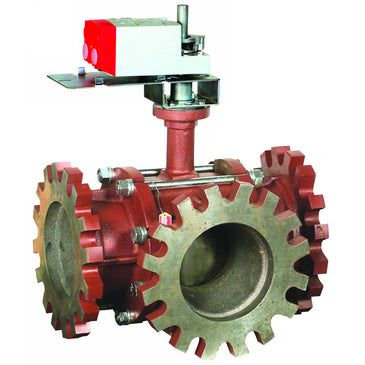

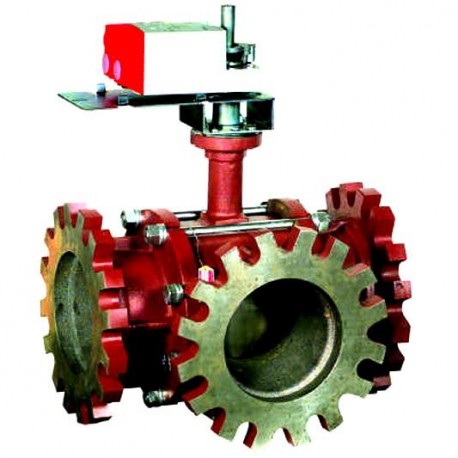

Honeywell VBF3JS1S0B 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3JS1S0B is a three-way ball valve assembly suitable for managing hot and chilled water systems with glycol solutions up to fifty percent. It offers flexibility with two-position or modulating functionalities, making it ideal for closed-loop HVAC applications. Featuring a cast iron body, Teflon seat, and stainless steel stem, the valve is engineered for durability and performance.

• Designed for closed-loop HVAC systems with glycol solutions up to fifty percent
• Removable manual operating handle for convenience
• Four actuator mounting positions for versatile installation

Product Highlights

This valve provides non-isolating mixing or diverting control, allowing efficient management of fluid flow.

Product Information

Standard Information

• Brand: Honeywell
• Control Valves Type: Ball Valve

Technical Specifications

• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Port A to AB: Equal Percentage, Port B to AB: Linear with twenty percent reduced flow capacity
• Operating Temperature: Minus twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close Off Pressure: Seventy psi
• Sizes: Four to six inches with ANSI Class 125 flanged connections
• Actuation Control Schemes: Four factory-installed options, including Floating, Modulating (two to ten volts), Spring Return twenty-four volts two-position, and Spring Return Modulating/Floating
• Fail-Safe Position: Configurable for normally open or normally closed
• Manual Operation: Removable manual handle for power failure situations
• Seat Leakage: ANSI Class IV A-port leakage
• Enclosure: Optional NEMA 3R (IP54) rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from ninety-one to six hundred fifty
• Valve Ball and Stem: Made of 316 stainless steel
• Control: Non-isolating mixing or diverting
