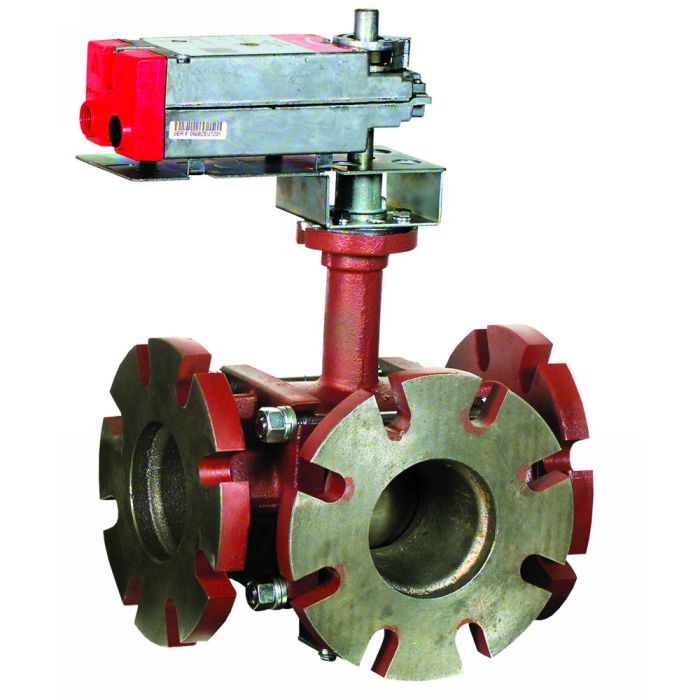

Honeywell VBF3J31S0C 4-Inch 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3J31S0C is a 4-inch, 3-way actuated control ball valve. It is designed for flow control and isolation in various applications. The valve features ANSI Class 125 flanged connections and a cast iron body for durability.

• Configurable for normally open or normally closed fail-safe positions
• Includes a removable manual operating handle
• Suitable for use as mixing or diverting valves

Product Highlights

This control valve is compatible with hot and chilled water, including solutions with up to fifty percent glycol.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VBF3J31S0C
• Model: P1911921
• Control Valves Type: Ball Valve
• Valve Size: 4 inches
• Flow Coefficient (Cv): 327
• Service: Hot and chilled water with glycol solutions up to 50%
• Operating Temperature: -22°F to 250°F (-30°C to 121°C)
• Close Off Pressure: 70 psi
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% reduced flow capacity
