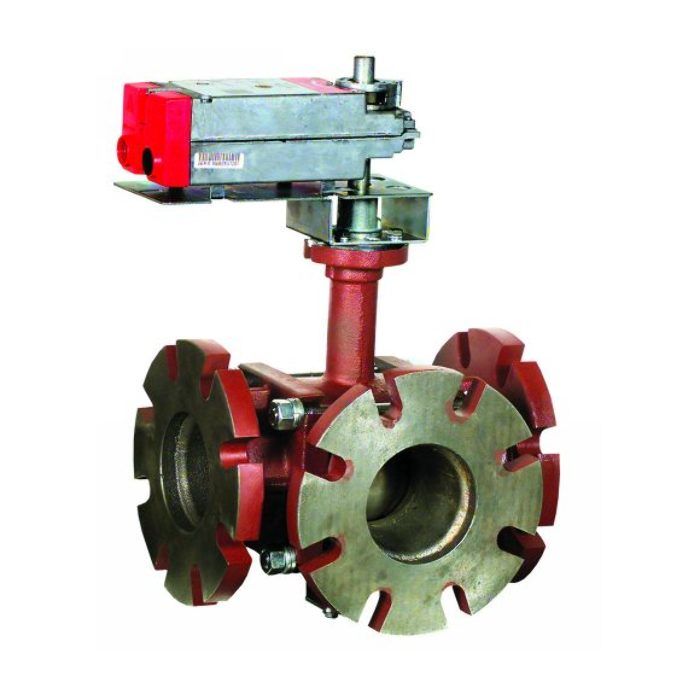

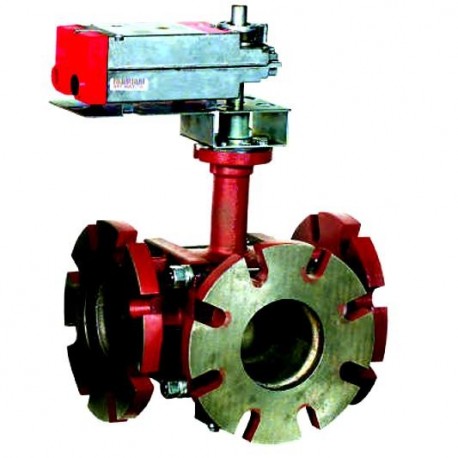

HONEYWELL VBF3J21S0C 3-Way Flanged Ball Valve

Product Description

The Honeywell VBF3J21S0C is a 3-way flanged ball valve ideal for regulating hot and chilled water alongside glycol solutions in closed-loop HVAC systems. It accommodates both two-position and modulating functions. Constructed with a cast iron body and Teflon seat, it features a stainless steel stem and can function as either a mixing or diverting valve. This valve supports sizes ranging from four to six inches and utilizes ANSI Class 125 flanged connections.

• ANSI Class 125 flanged connections.
• Compatible with hot and chilled water and glycol solutions up to 50%.
• Provides equal percentage or linear flow characteristics.

Product Highlights

This valve is designed for optimal performance in HVAC applications, effectively managing fluid flow with reliability and precision.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VBF3J21S0C
• Control Valves Type: Ball Valve
• Service: Hot And Chilled Water w/Glycol Solutions Up To 50%
• Flow Characteristic: Port A To AB: Equal Percentage/ Port B To AB: Linear w/20% Reduced Flow Capacity
• Operating Temperature: -22 F To 250 F (-30 C To 121 C)
• Close Off Pressure: 70 psi
• Max Static Pressure: 240 PSI
• Power Supply: 24V
• Frequency: 50/60 Hz
• Position: Normally Closed
