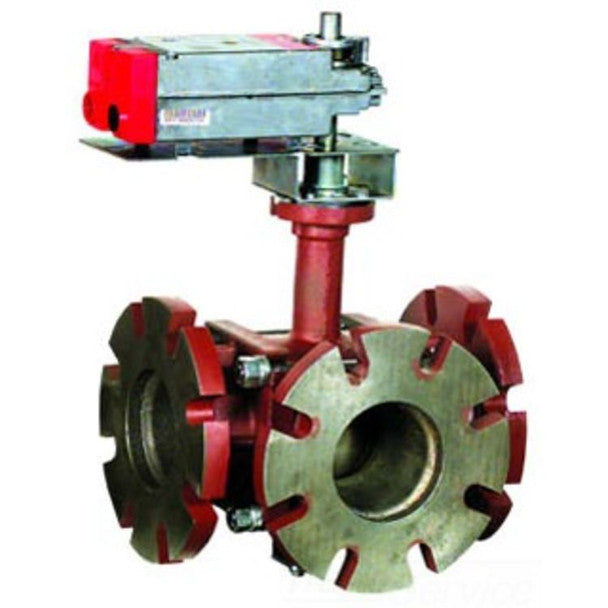

HONEYWELL VBF3J11S0X Three-Way Flanged Actuated Control Ball Valve

Product Description

The Honeywell VBF3J11S0X is a three-way flanged control ball valve suitable for hot and chilled water applications. It supports up to 50% glycol solutions and is designed for closed-loop HVAC systems. This valve offers two-position or modulating functions and can be used with 2-P on/off actuators, 3-P floating, or 0-10Vdc modulating actuators.

• The valve can operate as a mixing or diverting valve.
• It features ANSI Class 125 flanged connections.
• Constructed from 316 stainless steel for durability.

Product Highlights

The valve is suitable for medium temperatures ranging from minus thirty to one hundred twenty degrees Celsius. It features ANSI Class IV A-port seat leakage, maintaining a standard of 0.01% of Cv, which ensures reliability in performance.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3J11S0X

Technical Specifications

• Model: P1911921
• Control Valves Type: Ball Valve
• Valve Type: 3-Way
• Connection Type: Flanged
• Cv Capacity: 197
