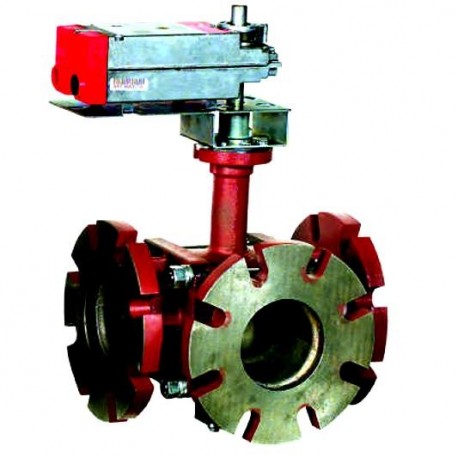

HONEYWELL VBF3J11S0D 4-Inch 3-Way Flanged Ball Valve

Product Description

The HONEYWELL VBF3J11S0D is a 4-inch, 3-way flanged ball valve. It is suitable for controlling hot and chilled water with up to 50% glycol solutions in closed-loop HVAC systems. The valve features a cast iron body, a Teflon seat, and a stainless steel stem. Users can configure this valve for two-position or modulating functions, and it allows for normally open or normally closed fail-safe positions.

• Suitable for hot and chilled water with glycol solutions.
• ANSI Class 125 flanged connections.
• Offers equal percentage or linear flow characteristics.

Product Highlights

This ball valve provides reliable function in HVAC systems, ensuring efficient control for various applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VBF3J11S0D

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: Flange
• Size: 4 inches
• Cv: 197 CV
• Trim Material: Stainless Steel
• Pattern: 3-way
• Service: Hot and chilled water with glycol solutions up to 50%
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22 F to 250 F
• Close Off Pressure: 70 psi
• Actuation Control Schemes: Choice of four factory-installed options
• Fail-safe Position: Field configurable for normally open or closed
• Manual Operation: Removable handle for manual control
• Seat Leakage: ANSI Class IV A-port seat leakage
• Enclosure: Optional NEMA 3R rated enclosure
• Actuator Mounting Positions: Four options available
• Valve Ball and Stem: 316 stainless steel
• Control: Non-isolating mixing or diverting control
