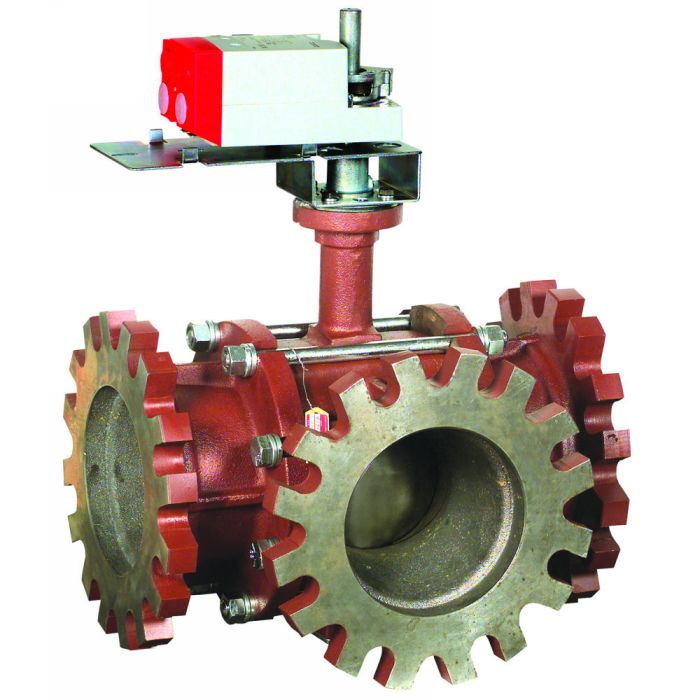

Honeywell VBF3J11S0B 3-Way Ball Valve 4 in 197 Cv

Product Description

The Honeywell VBF3J11S0B is a 3-way ball valve with a four-inch size and a flow coefficient of 197 Cv. This valve is made with a durable cast iron body and features a Teflon seat along with a stainless steel stem. It is compatible with hot and chilled water systems, including glycol solutions up to 50%. The VBF3J11S0B can work as a mixing or diverting valve.

• ANSI Class 125 flanged connections
• Medium temperature operation from negative thirty degrees Celsius to one hundred twenty degrees Celsius
• Flow characteristics: Port A to AB equal percentage; Port B to AB linear with twenty percent reduced flow capacity

Product Highlights

This valve is suitable for various applications where reliable flow control is necessary.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBF3J11S0B

Technical Specifications

• Model: P1911921
• Service: Hot and chilled water with glycol solutions up to 50%
• Operating Temperature: negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit (negative thirty degrees Celsius to one hundred twenty-one degrees Celsius)
• Close Off Pressure: 70 psi
