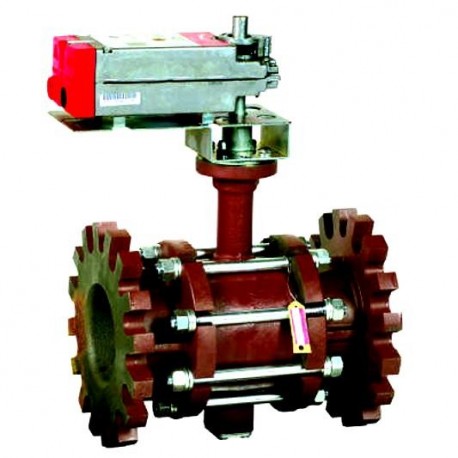

Honeywell VBF2L71S0B 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2L71S0B is a two-way flanged ball valve designed for controlling hot and chilled water flow in HVAC systems. This valve operates effectively with up to fifty percent glycol solutions in closed-loop configurations. It is equipped for both two-position and modulating functions, providing flexibility based on system requirements.

• Cast iron body offers durability and strength
• Teflon seat ensures reliable sealing
• 316 stainless steel stem enhances corrosion resistance

Product Highlights

This valve features a removable manual operating handle for convenience and can be configured for normally open or closed fail-safe positions, adapting to system needs effectively.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF2L71S0B

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: Flange
• Size: Six inches
• Cv: Six hundred fifty CV
• Fail-Safe: Non-Spring Return
• Trim Material: Stainless Steel
• Pattern: Two-way
• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Equal percentage, linear with full port
• Operating Temperature: Negative twenty-two Fahrenheit to two hundred fifty Fahrenheit
• Close Off Pressure: Seventy psi
• Valve Ball and Stem: 316 stainless steel
• Leakage Specification: ANSI Class IV leakage specification (0.01% of Cv)
