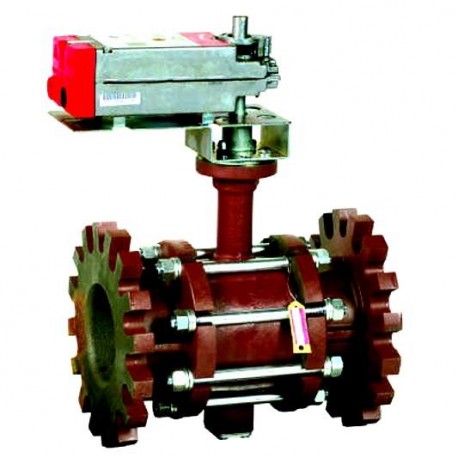

Honeywell VBF2L51S0C 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2L51S0C/M is a robust 2-way actuated control ball valve. This valve is designed for effective control of hot and chilled water systems, including those with up to fifty percent glycol solutions within closed-loop HVAC systems. It operates in two-position or modulating functions, making it versatile for various applications.

• Controls hot and chilled water with glycol solutions.
• Offers equal percentage or linear flow characteristics.
• Features configurable fail-safe positions for reliable operation.

Product Highlights

This valve is suitable for use with a variety of actuators, including 2-position on/off and modulating options. Its design allows for superior flow control and isolation capabilities in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF2L51S0C

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: From four to six inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options available
• Fail-Safe Position: Configurable for open or closed
• Manual Operation: Removable handle for manual control
• Leakage Specification: ANSI Class IV leakage (0.01% of Cv)
• Enclosure: Optional NEMA 3R rated for outdoor use
• Actuator Mounting Positions: Four options available
• Cv Choices: Range from 91 to 650
• Ball and Stem Material: 316 stainless steel
