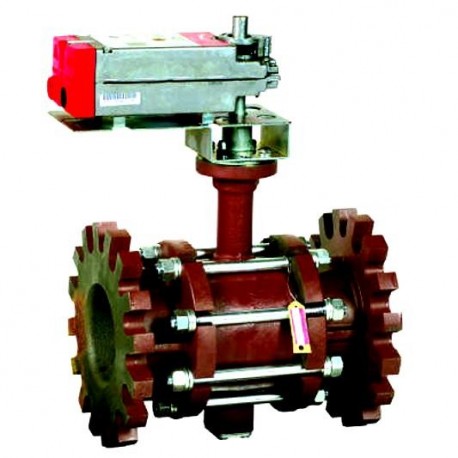

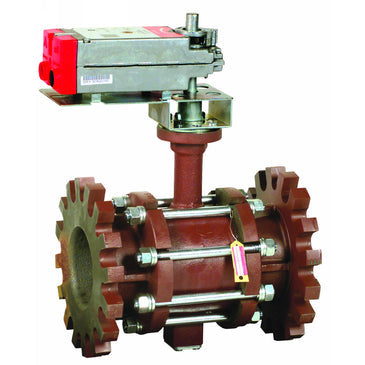

Honeywell VBF2L21S0X Two-Way Flanged Actuated Control Ball Valve

Product Description

The Honeywell VBF2L21S0X is a two-way flanged ball valve suitable for controlling hot and chilled water, along with up to fifty percent glycol solutions in closed-loop HVAC systems. This valve can perform two-position or modulating functions, making it versatile for different applications.

• ANSI Class 125 flanged connections enhance durability.
• Constructed with a stainless steel ball and stem.
• Compatible with various actuator types, including 2-P on/off, 3-P floating, and 0-10Vdc modulating actuators.

Product Highlights

This valve excels in energy efficiency and reliability for flow control and isolation applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF2L21S0X

Technical Specifications

• Control Valves Type: Ball Valve
• Valve Type: 2-Way
• Connection Type: Flanged
• Valve Size: 6 inches
• Cv Capacity: 268
• Medium Temperature Range: -30 to 120 °C
• Size Availability: 4 to 6 inches
