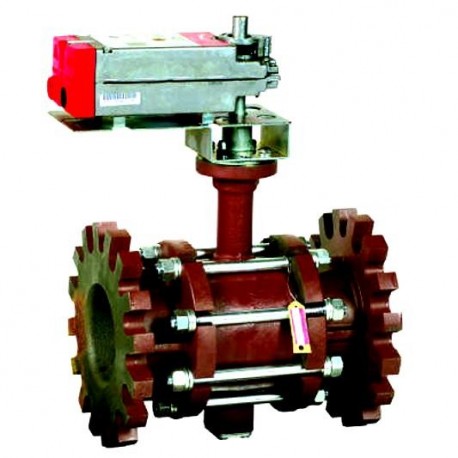

Honeywell VBF2L11S0C Two-Way Ball Valve Assembly

Product Description

The Honeywell VBF2L11S0C is a two-way ball valve assembly designed for controlling hot and chilled water with glycol solutions. It is suitable for closed-loop HVAC systems. The valve is compatible with two-position or modulating functions, making it versatile for various applications.

• Features ANSI Class 125 flanged connections for secure installation.
• Offers equal percentage or linear flow characteristics for accurate control.
• Meets ANSI Class IV leakage specification (0.01% of Cv).

Product Highlights

This valve provides reliable performance in HVAC systems, ensuring efficient control of water flow in heating and cooling applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2L11S0C

Technical Specifications

• Model: P1911921
• Valve Type: Ball Valve
• Way: 2-Way
• Size: 6 inches
• Connection Type: Flanged
• Cv: 208
• Fail Safe: Spring Return
• Medium Temperature Range: -30 to 120 degrees Celsius
