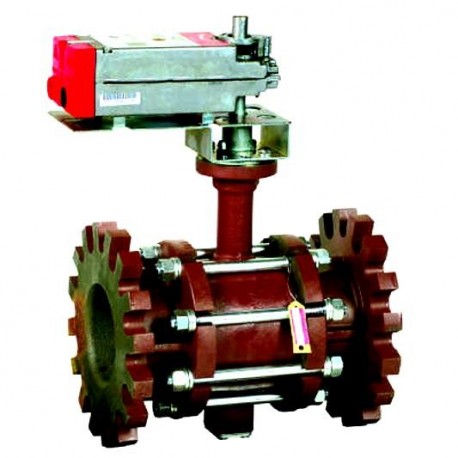

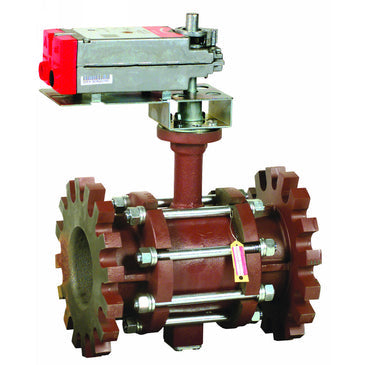

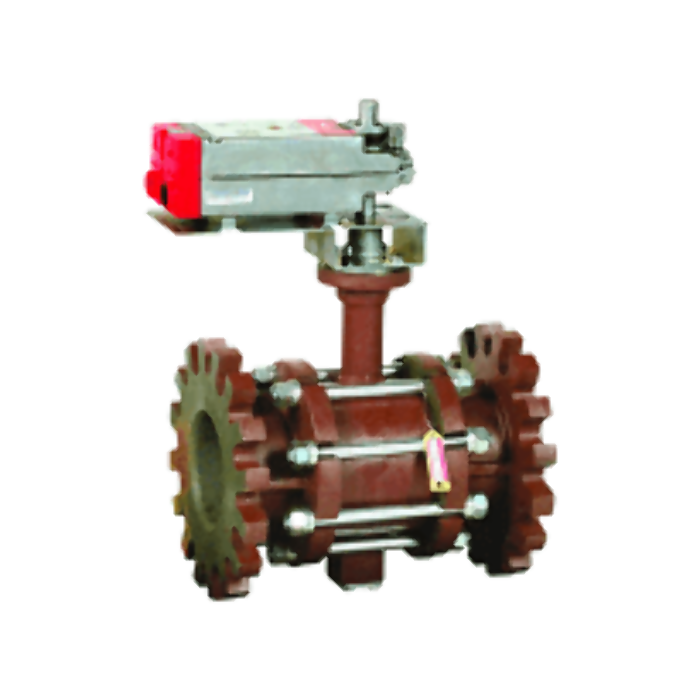

Honeywell VBF2K21S0D 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2K21S0D is a reliable 2-way ball valve used for controlling hot and chilled water in HVAC systems. The valve can handle fluid with up to 50% glycol solutions, making it suitable for various applications. The construction includes a cast iron body, Teflon seat, and a stainless steel stem, ensuring durability.

• Designed for flow control and isolation.
• Compatible with ANSI Class 125 flanged connections.
• Can function in both two-position and modulating applications.

Product Highlights

This valve ensures effective flow regulation with equal percentage or linear flow characteristics.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2K21S0D

Technical Specifications

• Control Valve Type: Ball Valve
• Service: Hot and Chilled Water with Glycol Solutions up to 50%
• Flow Characteristic: Equal Percentage, Linear with Full Port
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
