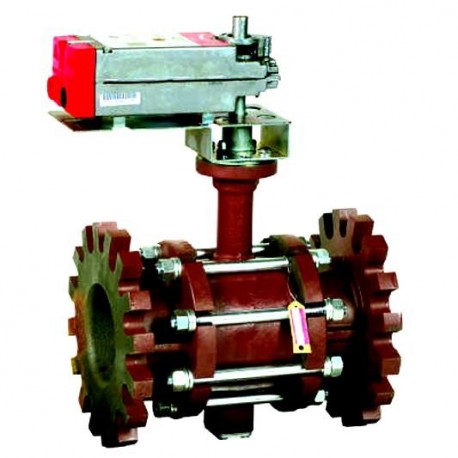

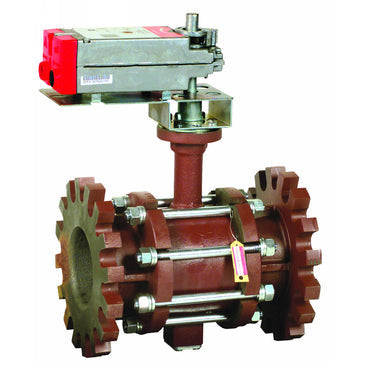

HONEYWELL VBF2K21S0C 2-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF2K21S0C is a two-way actuated control ball valve designed for use in HVAC systems. It is suitable for controlling hot and chilled water along with glycol solutions up to fifty percent in closed-loop systems.

• Offers flow control and isolation capabilities.
• Compatible with 2-position on/off actuators.
• Features a durable 316 stainless steel ball and stem.

Product Highlights

This valve is ideal for applications needing reliable flow management and is built to meet ANSI Class IV leakage specifications, ensuring minimal leakage and efficient operation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBF2K21S0C

Technical Specifications

• Control Valves Type: Ball Valve
• Sizes: Four to six inches with ANSI Class 125 flanged connections
• Flow Characteristics: Equal percentage or linear
• Actuation Control Schemes: Four factory-installed options: Floating, Modulating, Spring Return 24V 2-Position, Spring Return Modulating/Floating
• Fail-Safe Position: Configurable for normally open or normally closed
• Manual Operation: Removable handle for manual control
• Leakage Specification: ANSI Class IV (0.01% of Cv)
• Actuator Mounting Positions: Four options available
• Valve Ball and Stem: 316 stainless steel
