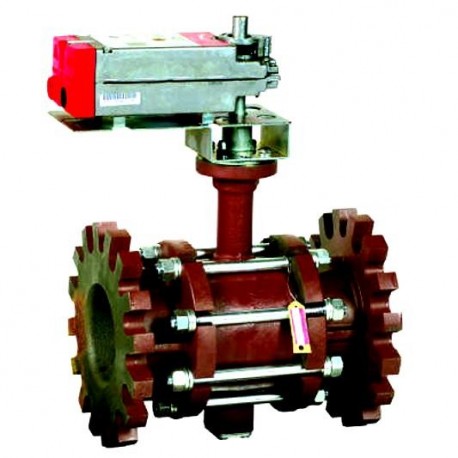

HONEYWELL VBF2JU1S0X 4-inch 2-Way Flanged Control Ball Valve No Actuator

Product Description

The Honeywell VBF2JU1S0X is a 4-inch, 2-way flanged control ball valve. It is designed for controlling hot and chilled water with glycol solutions up to fifty percent in closed-loop HVAC systems.

• Features ANSI Class 125 flanged connections.
• Offers equal percentage or linear flow characteristics.
• Valve ball and stem are constructed of 316 stainless steel.

Product Highlights

This valve is suitable for use with various actuators such as 2-position on/off, 3-position floating, or 0-10Vdc modulating actuators. Note that it does not include a pre-assembled actuator or weather enclosure.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBF2JU1S0X

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: Flange
• Size: 4 in
• Pattern: 2-way
• Cv: 152 CV
• Trim Material: Stainless Steel
• Service: Hot And Chilled Water w/Glycol Solutions Up To 50%
• Flow Characteristic: Equal Percentage, Linear w/Full Port
• Operating Temperature: -22 F To 250 F (-30 C To 121 C)
• Close Off Pressure: 70 psi
