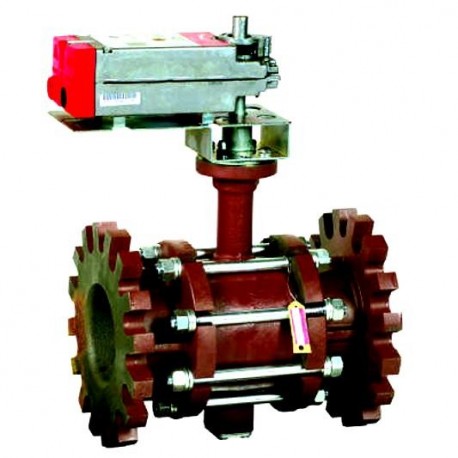

HONEYWELL VBF2JT1S0X Two-Way Flanged Ball Valve

Product Description

The Honeywell VBF2JT1S0X is a two-way flanged ball valve suitable for managing the flow of hot and chilled water with glycol solutions up to fifty percent in closed-loop HVAC systems. It can operate in both two-position and modulating functions. The valve is constructed with a cast iron body, Teflon seat, and features a three hundred sixteen stainless steel stem and ball.

• Compatible with hot and chilled water with glycol solutions up to fifty percent.
• Includes a removable manual operating handle.
• Field configurable for normally open or normally closed settings.

Product Highlights

This valve is an essential component for HVAC systems requiring effective flow control.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF2JT1S0X

Technical Specifications

• Control Valves Type: Ball Valve
• Service: Hot and chilled water with glycol solutions up to fifty percent
• Flow Characteristic: Equal percentage, linear with full port
• Operating Temperature: Minus twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close Off Pressure: Seventy psi
• Max Static Pressure: Two hundred forty psi
• Position: Normally closed
• Frequency: Fifty/sixty Hz
• Sizes: From four to six inches with ANSI Class one hundred twenty-five flanged connections
• Valve Ball and Stem: Three hundred sixteen stainless steel
• Cv Choices: Range from ninety-one to six hundred fifty
