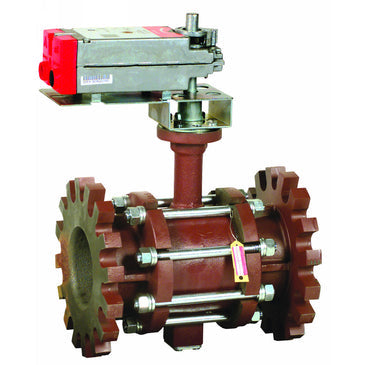

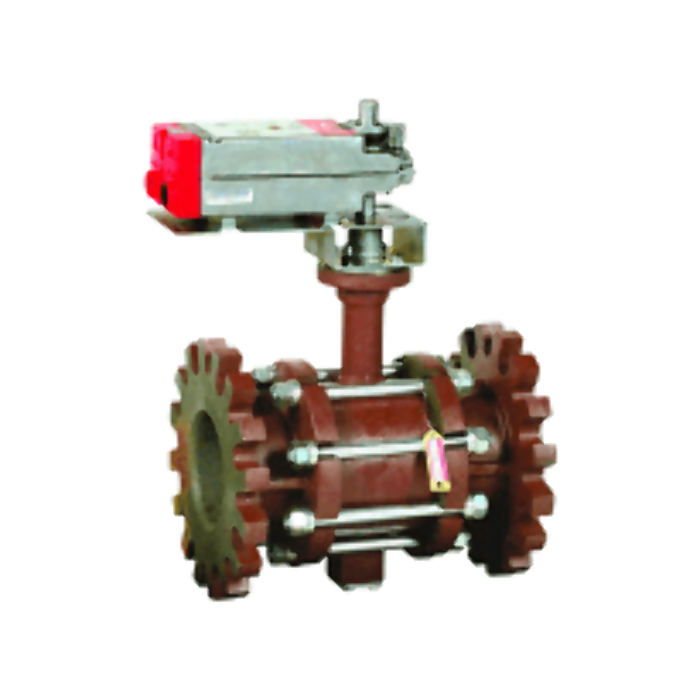

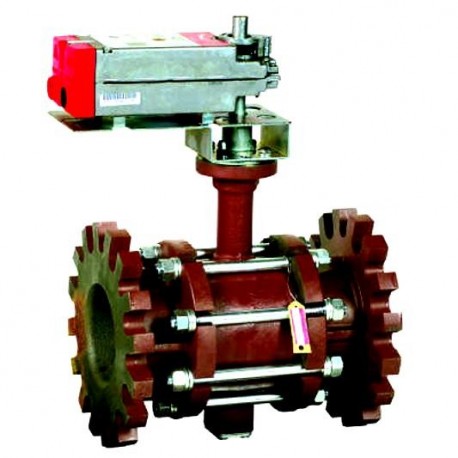

Honeywell VBF2J21SRB 4-Inch 2-Way Ball Valve

Product Description

The Honeywell VBF2J21SRB is a 4-inch, 2-way ball valve designed for controlling hot and chilled water with up to fifty percent glycol solutions in closed-loop HVAC systems. It features a cast iron body, Teflon seat, and a stainless steel stem. This valve suits two-position on/off actuators, three-position floating or 0-10 Vdc modulating actuators, allowing for flexible control.

• ANSI Class 125 flanged connections.
• Equal percentage or linear flow characteristics.
• Medium temperature range from minus twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is built for durability and reliability in HVAC systems, ensuring efficient flow management.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2J21SRB

Technical Specifications

• Model: P1911921
• Control Valves Type: Ball Valve
• Service: Hot And Chilled Water with Glycol Solutions Up To 50%
• Flow Characteristic: Equal Percentage, Linear with Full Port
• Operating Temperature: minus twenty-two degrees Fahrenheit To two hundred fifty degrees Fahrenheit
• Close Off Pressure: 70 psi
