Honeywell VBF2J11S0X 2-Way Flanged Ball Valve 4 in Replacement MPN

Product Description

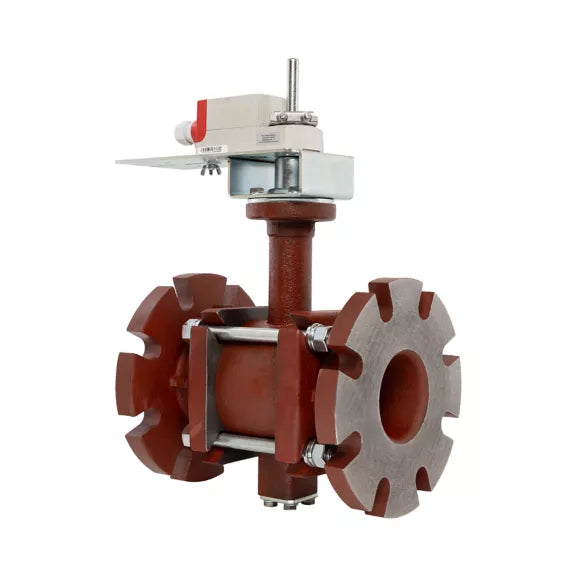

The Honeywell VBF2J11S0X is a 2-way flanged ball valve designed for HVAC systems. This valve is optimal for managing hot and chilled water, including solutions with up to 50% glycol. The valve has a connection size of four inches and a flow coefficient of 197 Cv.

• Constructed from a cast iron body, stainless steel stem, and Teflon seat.
• Compatible with various actuator types including 2-position on/off and modulating actuators.
• Meets ANSI Class IV leakage specification with a low leakage rate.

Product Highlights

Ideal for controlling water flow in heating and cooling systems. Ensures durability and reliability in challenging environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2J11S0X

Technical Specifications

• Model: P1911921
• Connection: Flange
• Cv: 197 Cv
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 4 inches
• Service: Hot and chilled water with glycol solutions up to 50%
• Flow Characteristic: Equal percentage and linear with full port
• Operating Temperature: -22°F to 250°F (-30°C to 121°C)
• Close Off Pressure: 70 psi
• Application: HVAC systems
• Controlled Medium: Hot and chilled water with glycol solutions up to 50%
• Valve Type: Ball Valve
• Valve Size Diameter: 4 to 6 inches
• Valve Connection Type: ANSI Class 125 flanged connections
• Valve Ball Material: 316 stainless steel
• Valve Stem Material: 316 stainless steel
• Leakage Rating: ANSI Class IV leakage specification (0.01% of Cv) on most configurations
