Honeywell VBF2J11S0B 2-Way Flanged Ball Valve

Product Description

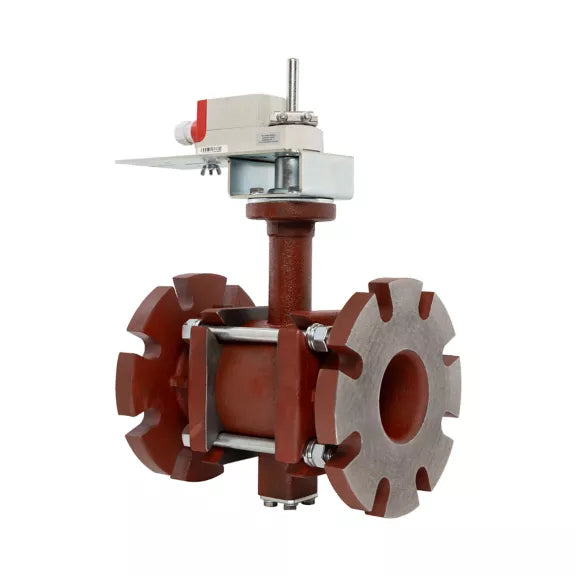

The Honeywell VBF2J11S0B is a 2-way flanged ball valve designed for regulating hot and chilled water, including systems with glycol solutions up to fifty percent. The cast iron body ensures durability, while the Teflon seat provides reliable sealing. This valve is offered in sizes ranging from four to six inches and features ANSI Class 125 flanged connections. It is versatile, enabling equal percentage and linear flow characteristics.

• ANSI Class 125 flanged connections for secure attachment.
• Removable manual operating handle for manual control.
• Compatible with hot and chilled water with glycol solutions.

Product Highlights

This valve is ideal for HVAC applications, providing stable control in various temperature ranges and being field configurable for either normally open or normally closed positions.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF2J11S0B

Technical Specifications

• Valve Type: Ball valve
• Body Material: Cast Iron
• Seat Material: Teflon
• Stem Material: 316 Stainless Steel
• Valve Size: Four to six inches
• Connection Type: ANSI Class 125 Flanged
• Flow Characteristic: Equal percentage
• Operating Temperature: Minus twenty-two Fahrenheit to two hundred fifty Fahrenheit
• Maximum Pressure: Seventy psi
• Compatible Fluids: Hot and chilled water with glycol solutions up to fifty percent
• Leakage Specification: ANSI Class IV (zero point zero one percent of Cv)
• Flow Coefficient (Cv): Ninety-one to six hundred fifty
• Application: Heating, ventilating, and air conditioning systems
• Actuator Type: Non-spring return or spring return direct-coupled actuators
• Actuator Enclosure Rating: Optional NEMA three R (IP fifty-four)
