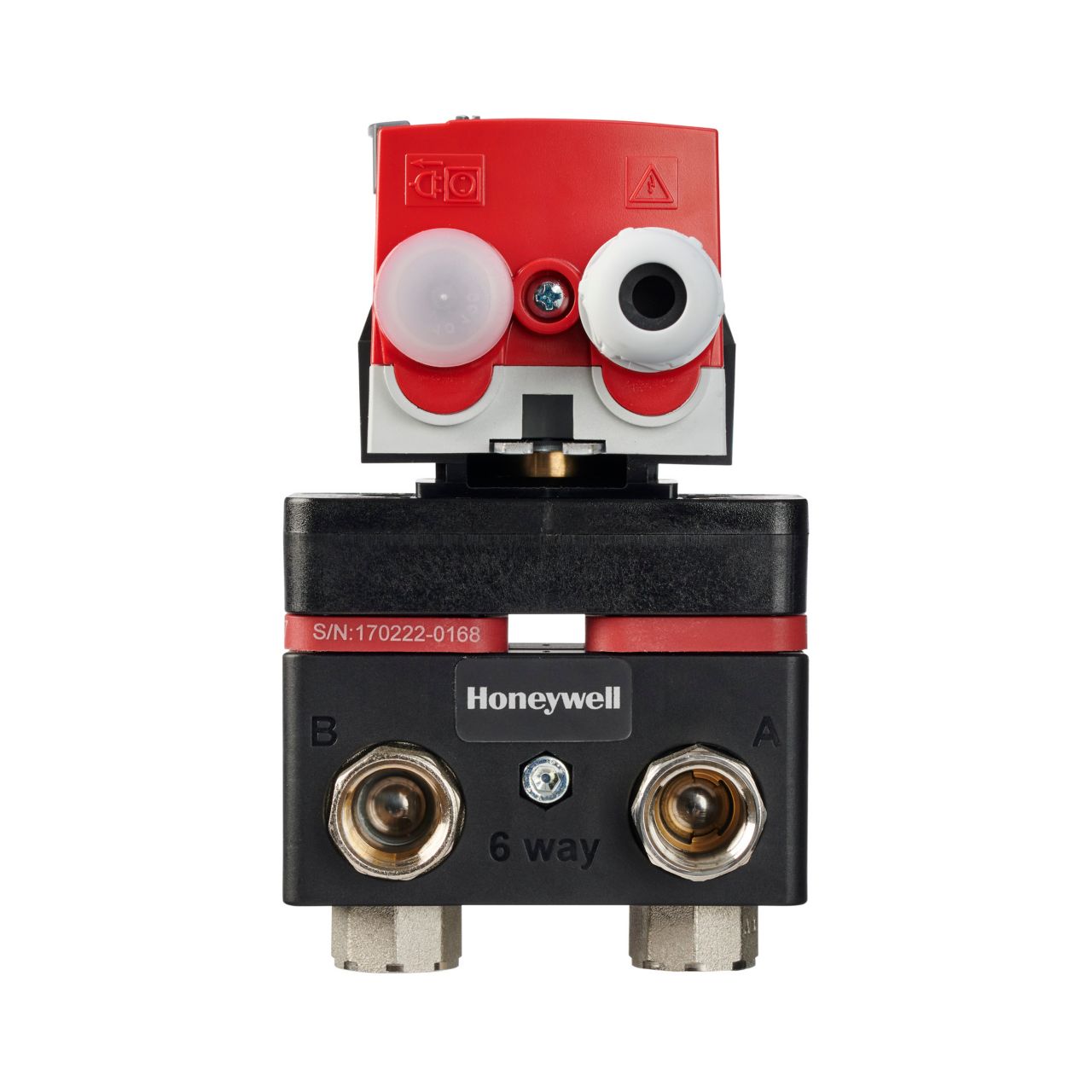

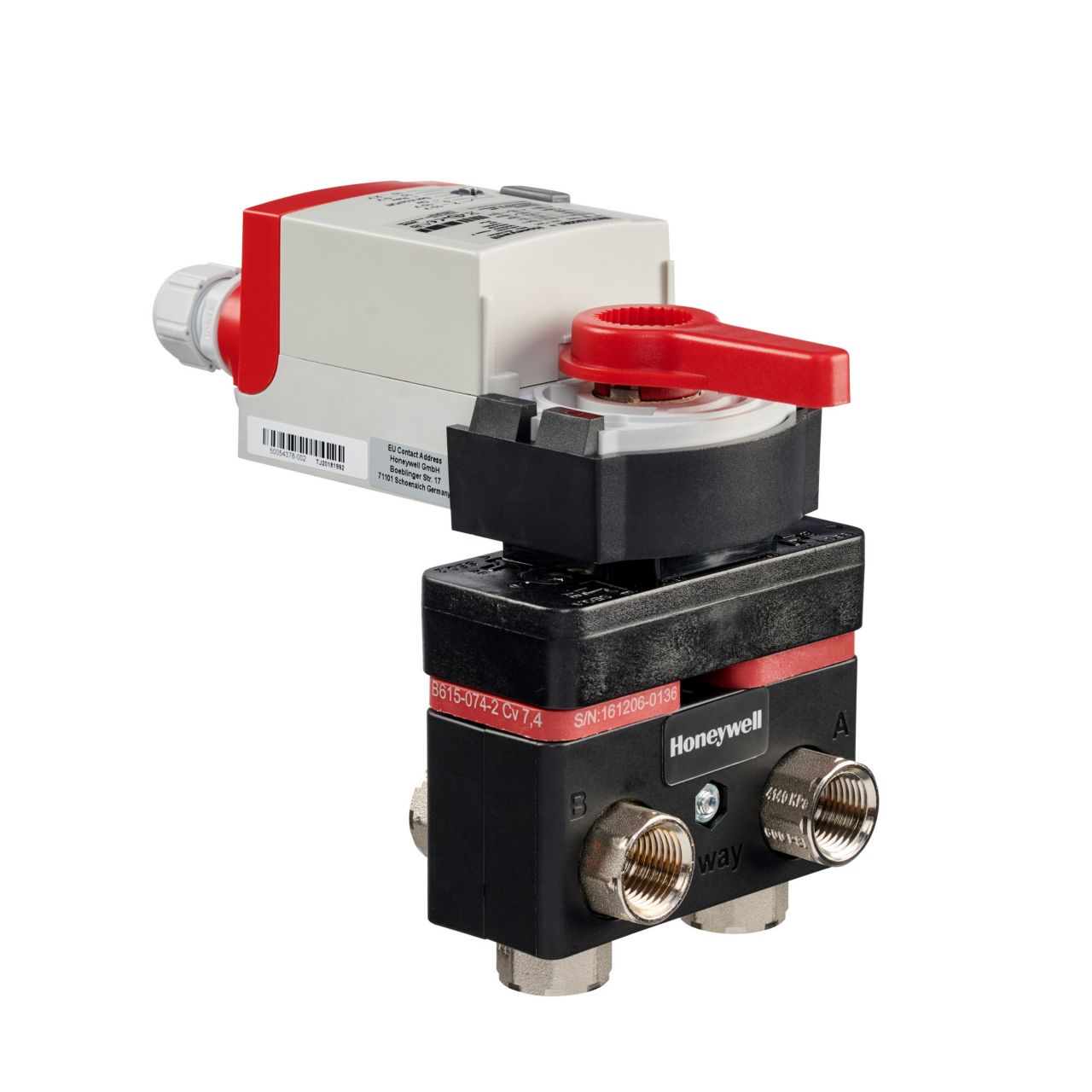

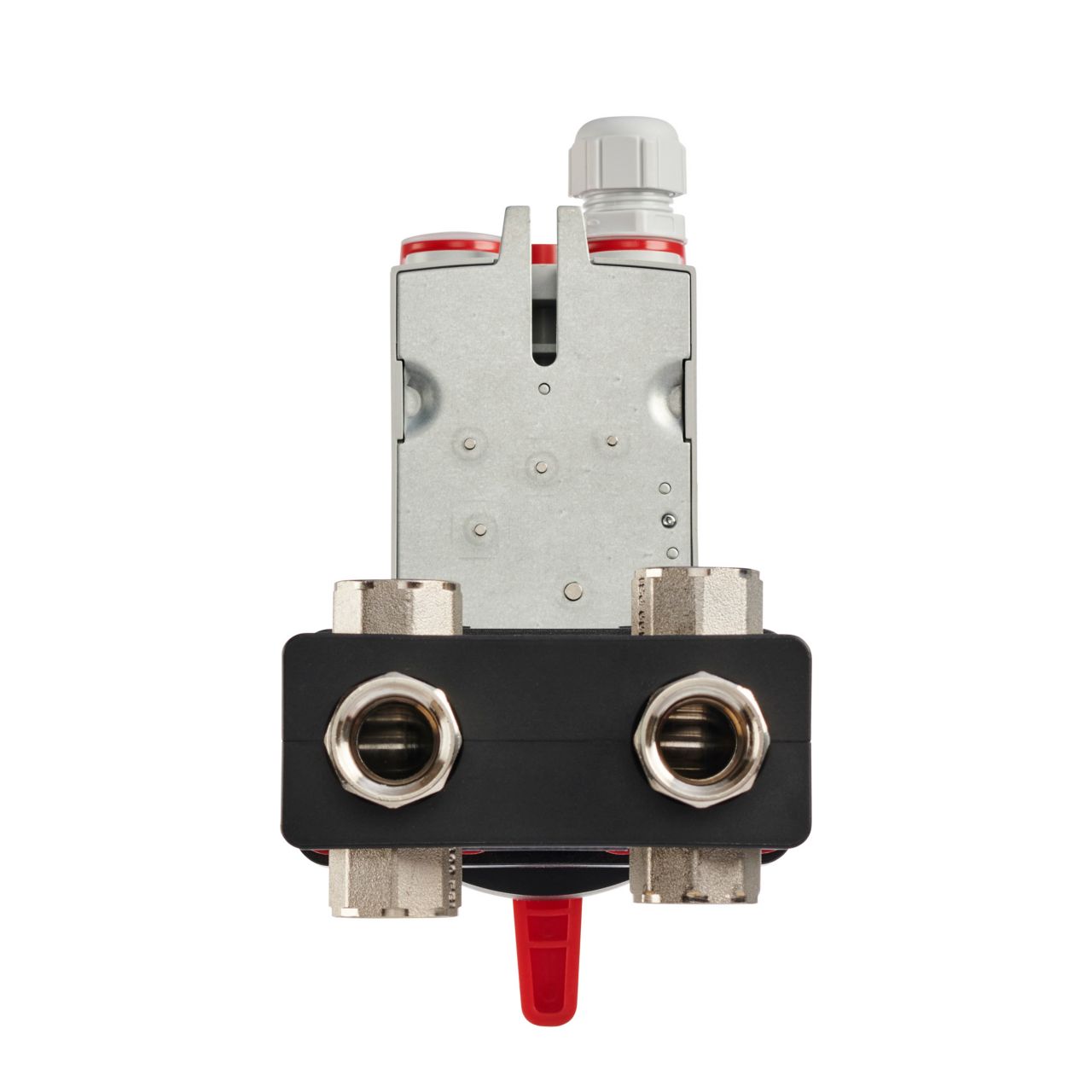

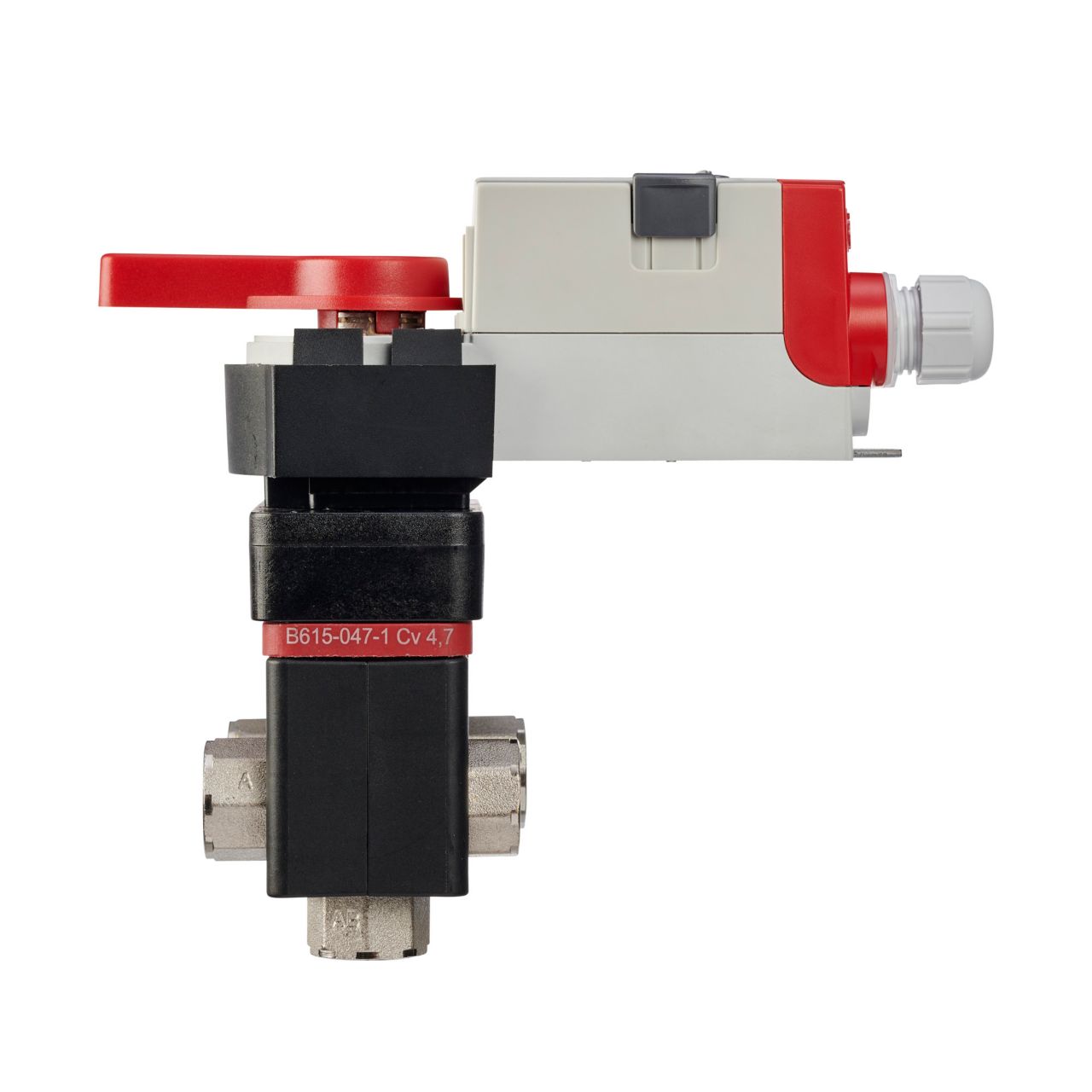

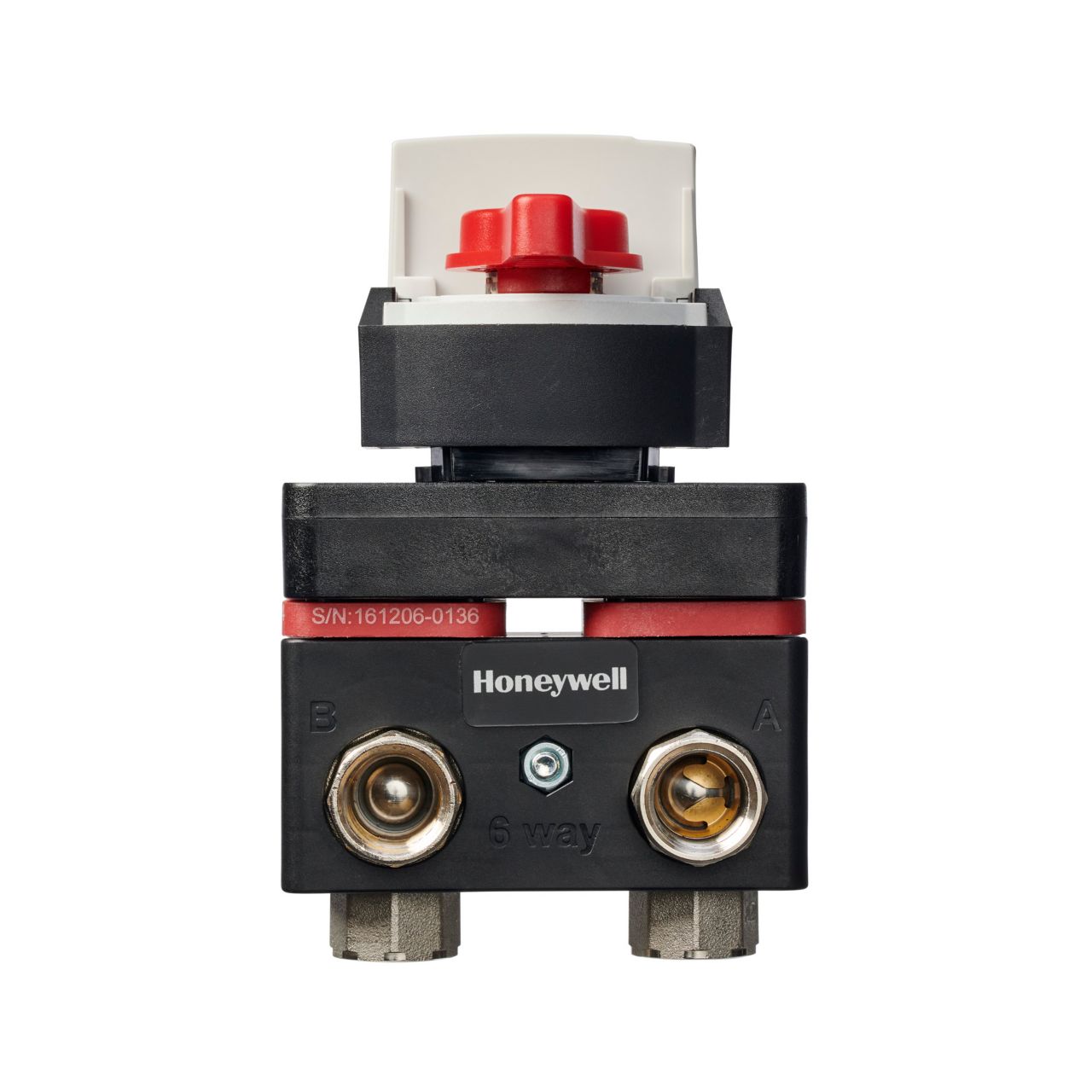

Honeywell VB6B140+100+AL VB6 Series 6-Way Control Ball Valve and Actuator

Product Description

The Honeywell VB6B140+100+AL is a six-way control ball valve and actuator assembly designed for reliable operation in closed loop systems. It combines change-over and control valve functions into a single modulating actuator. The valve features a nickel-plated forged brass body with a stainless steel ball and stem. It is suitable for hot or chilled water systems, enhancing efficiency in HVAC applications.

• Valve body made from nickel-plated forged brass.
• Stainless steel ball and stem ensures durability.
• Actuator operates on 24 VAC and includes SPDT auxiliary switches.

Product Highlights

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VB6B140+100+AL
• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
