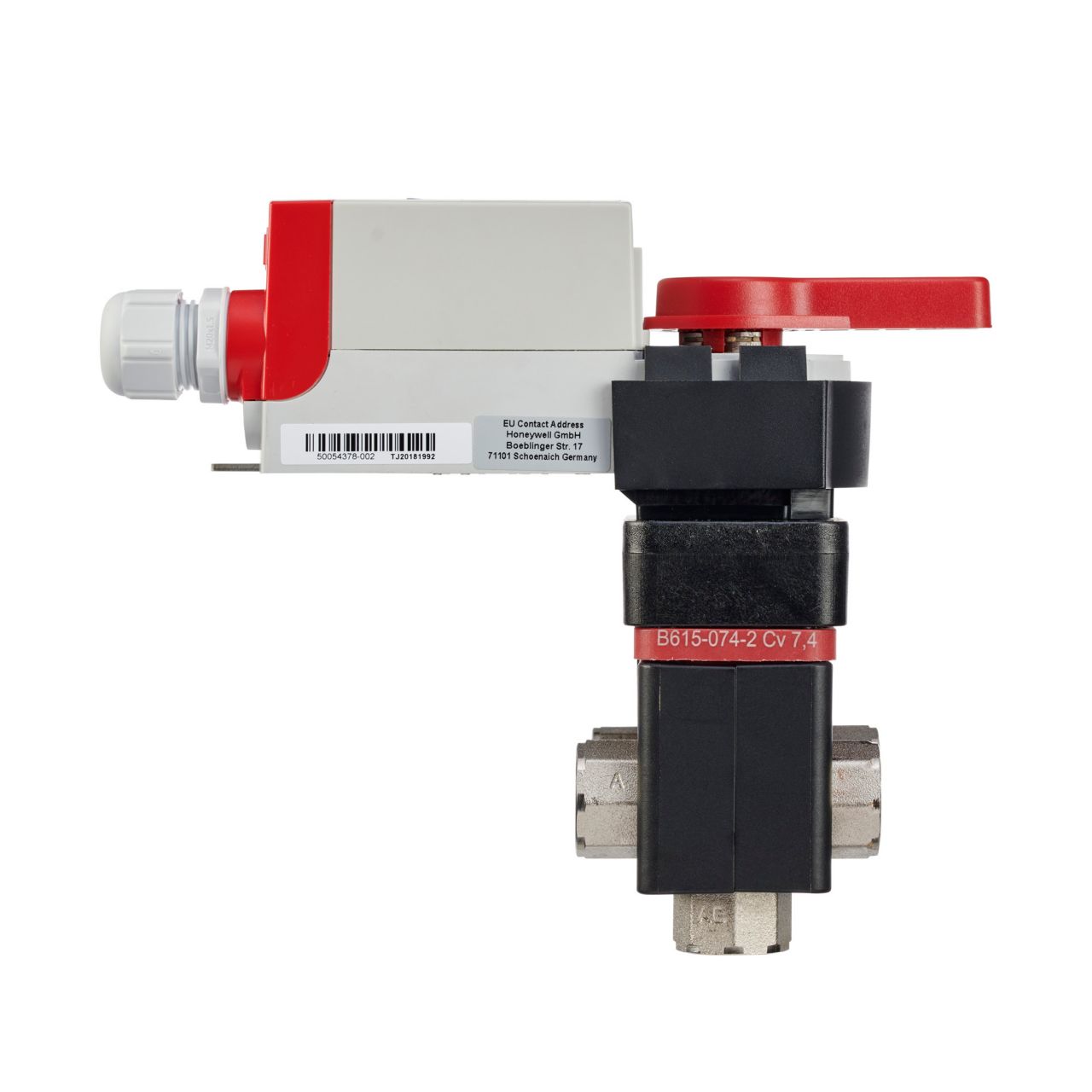

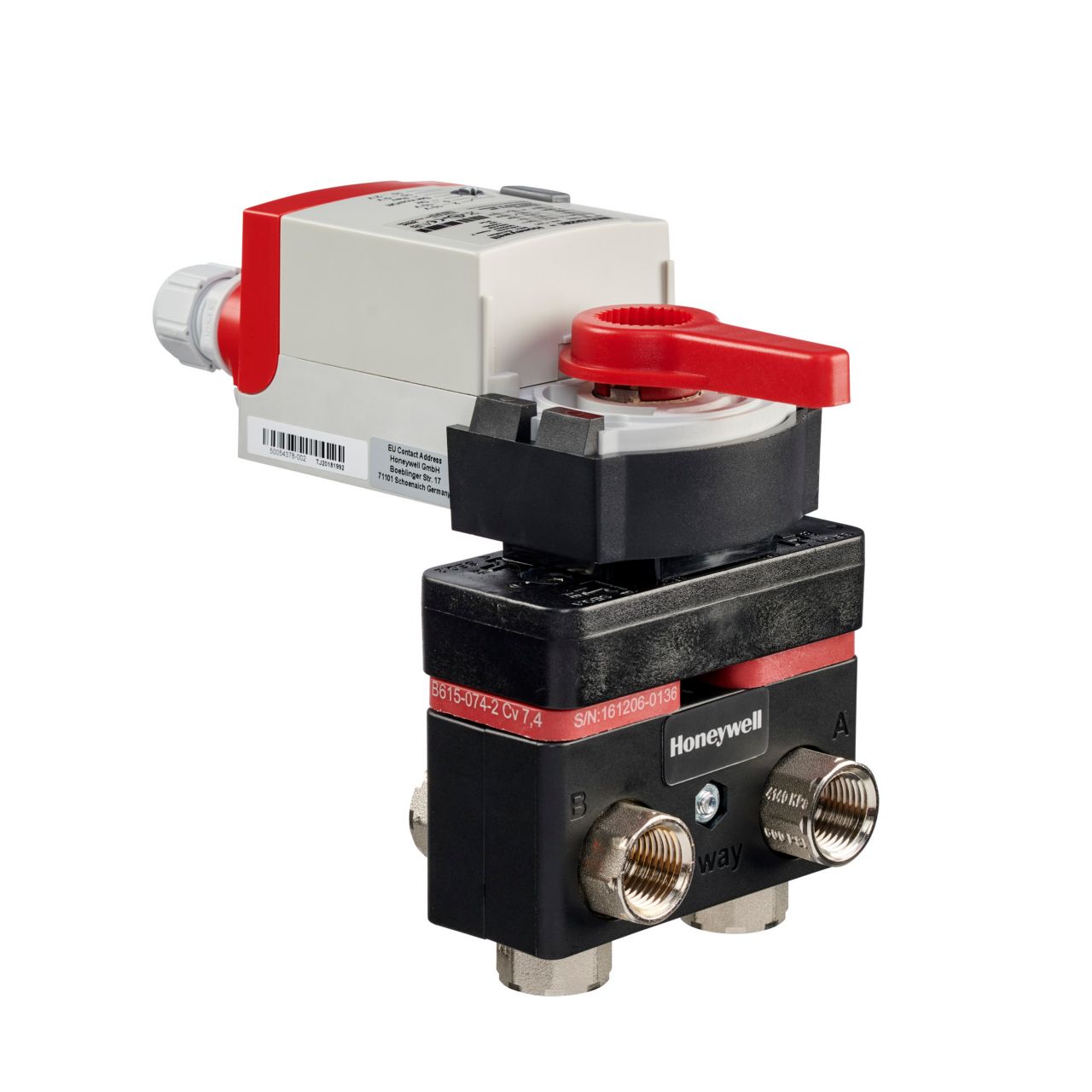

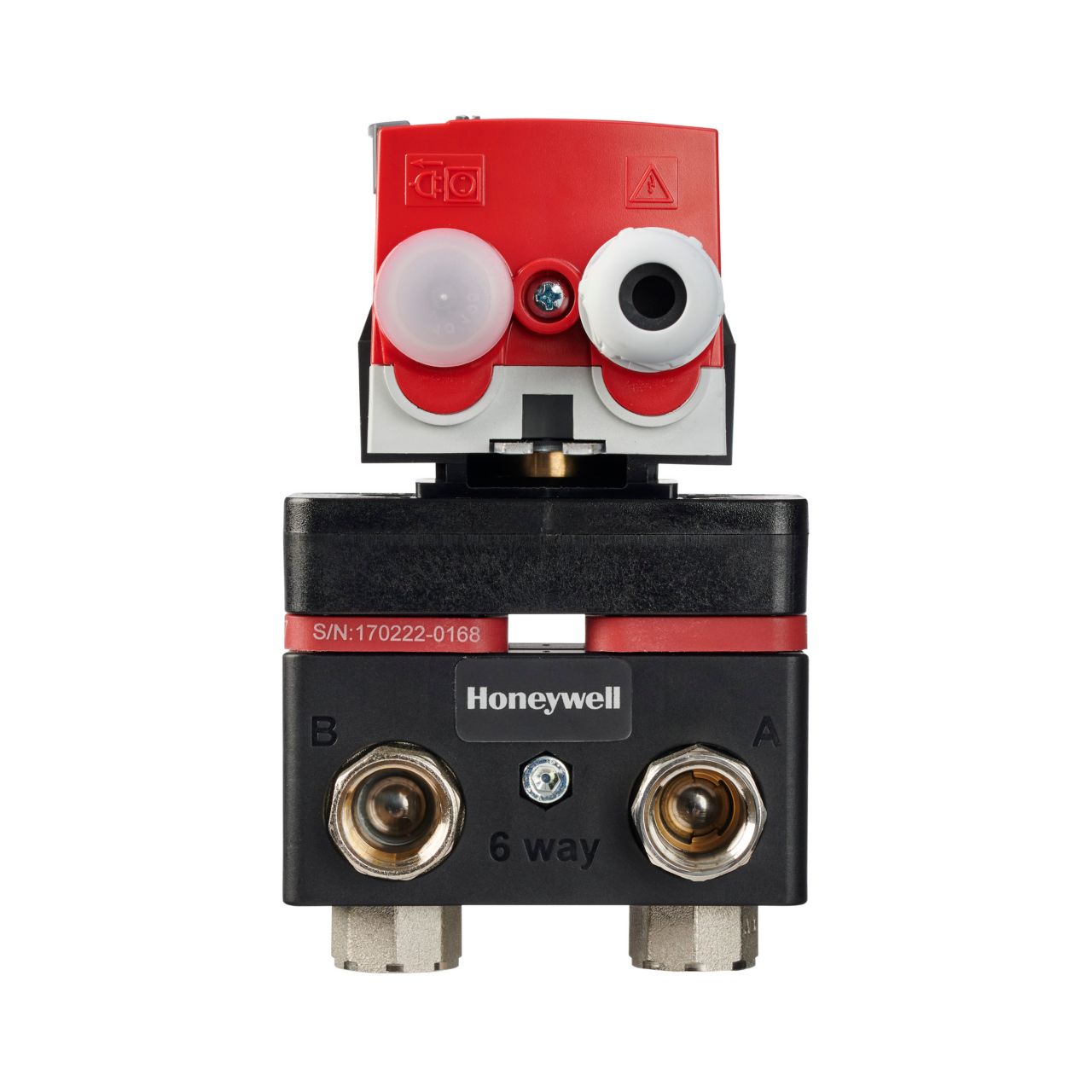

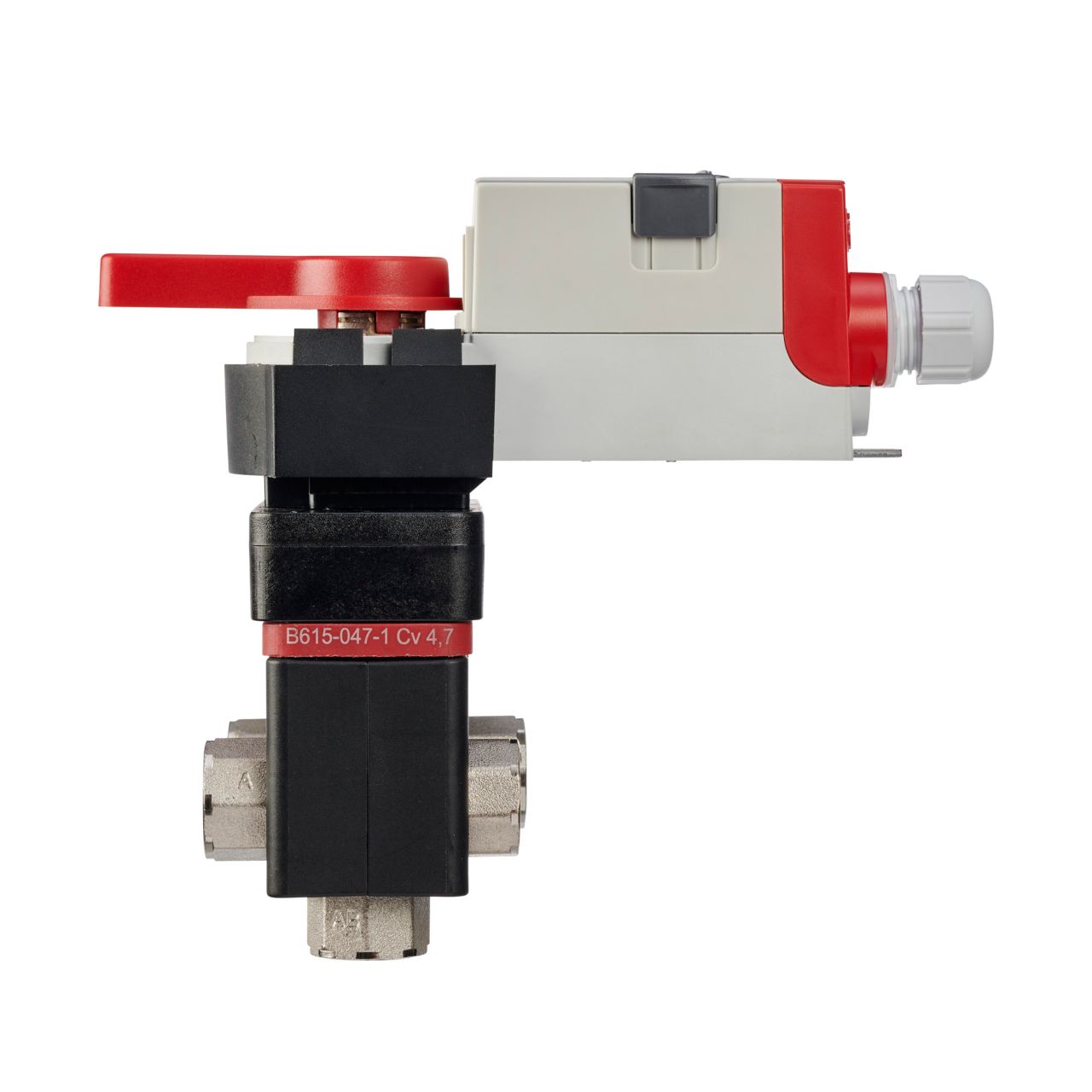

Honeywell VB6B140+047+AL VB6 Series 6-Way Control Valve Assembly

Product Description

The Honeywell VB6B140+047+AL is a 6-way control valve assembly suitable for four-pipe systems. This unit combines the change-over and control valve functions in one assembly. The nickel-plated forged brass body ensures durability, while the stainless steel ball and stem enhance performance. This valve is meant for controlling heating and cooling in single coil setups. It uses a modulating actuator to regulate flow through two distinct control sequences. The valve can handle water and glycol mixtures up to 60%.

• Nickel-plated forged brass body
• Stainless steel ball and stem
• Compatible with water and glycol applications up to 60%

Product Highlights

This control valve is designed for efficient operation in HVAC systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6B140+047+AL

Technical Specifications

• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Material: Brass
