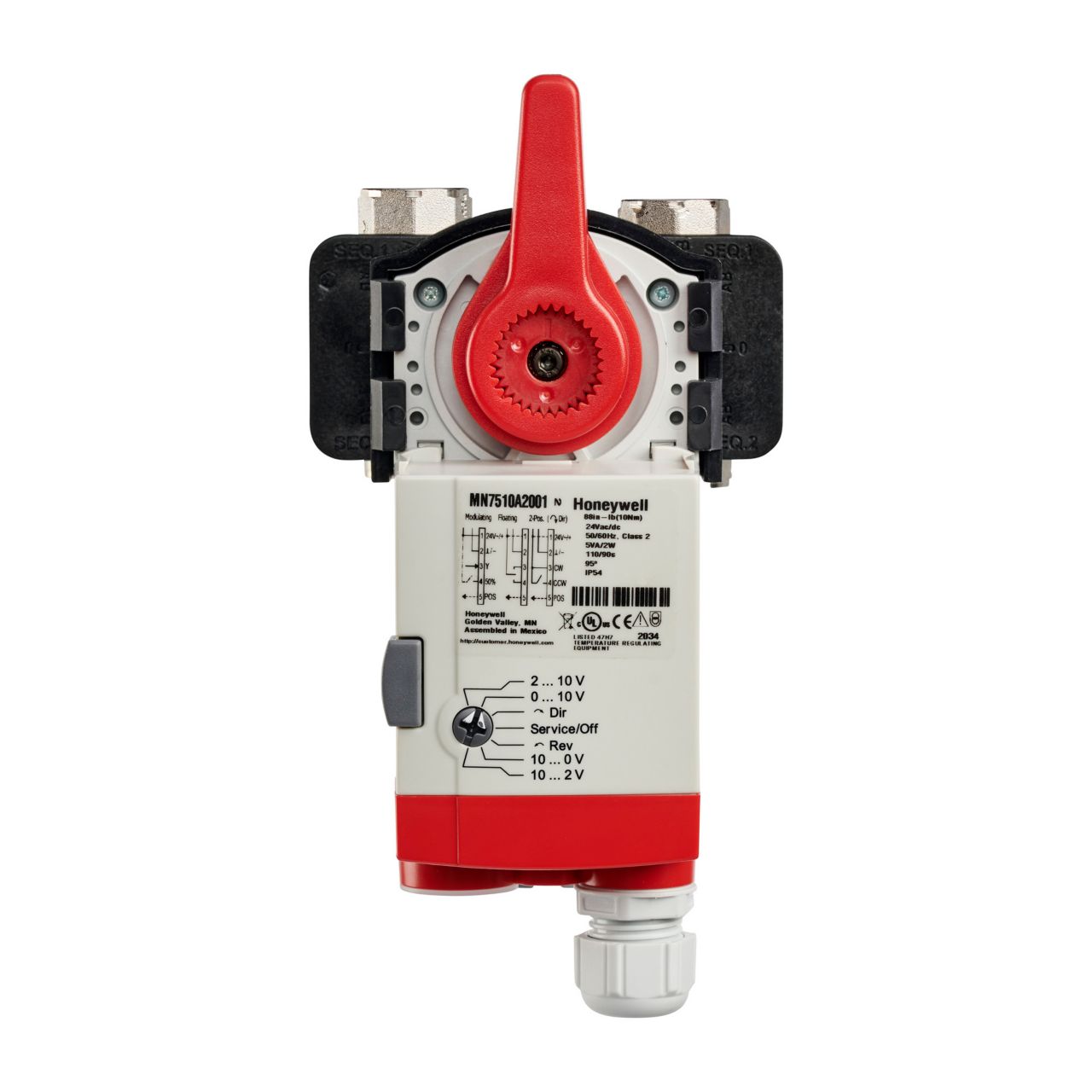

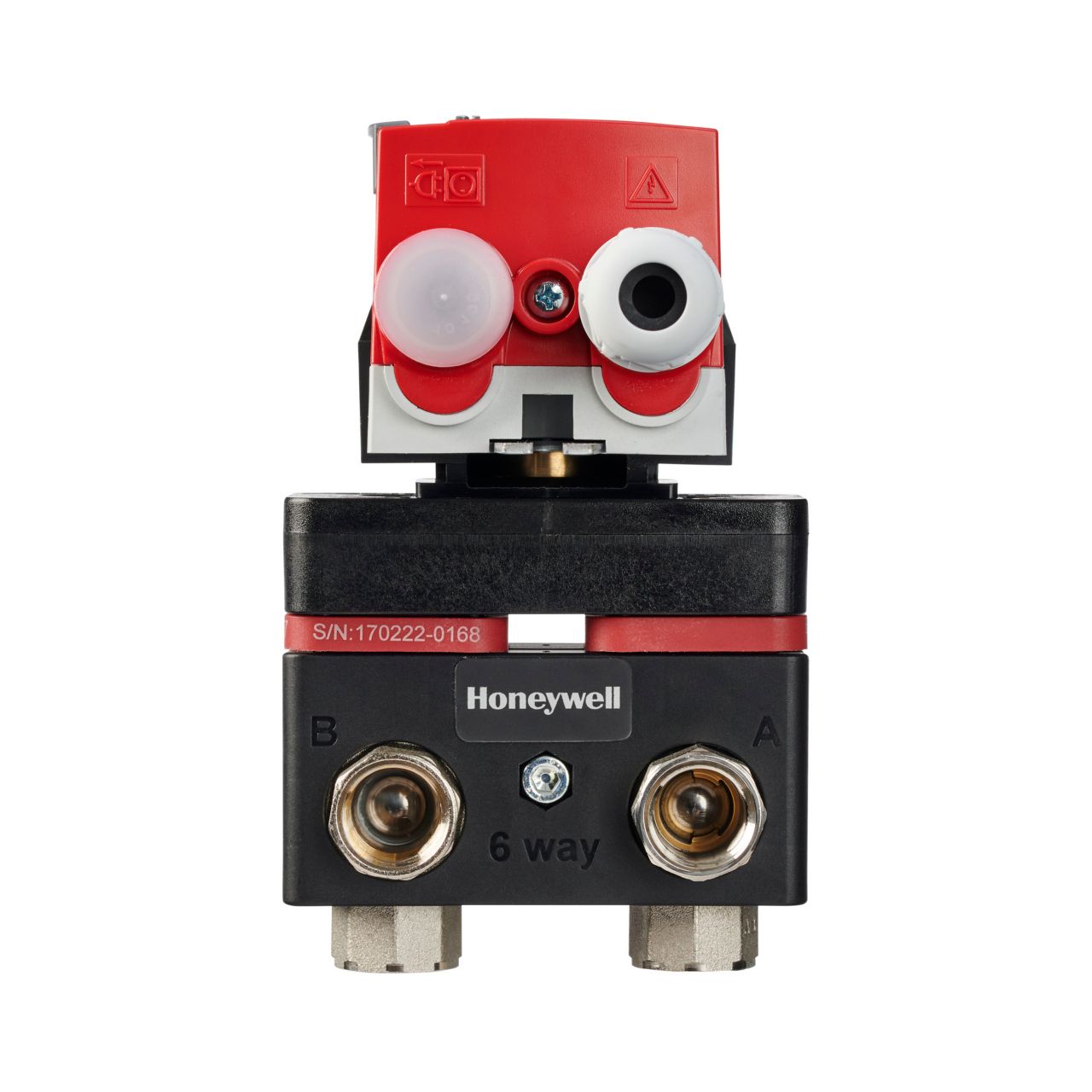

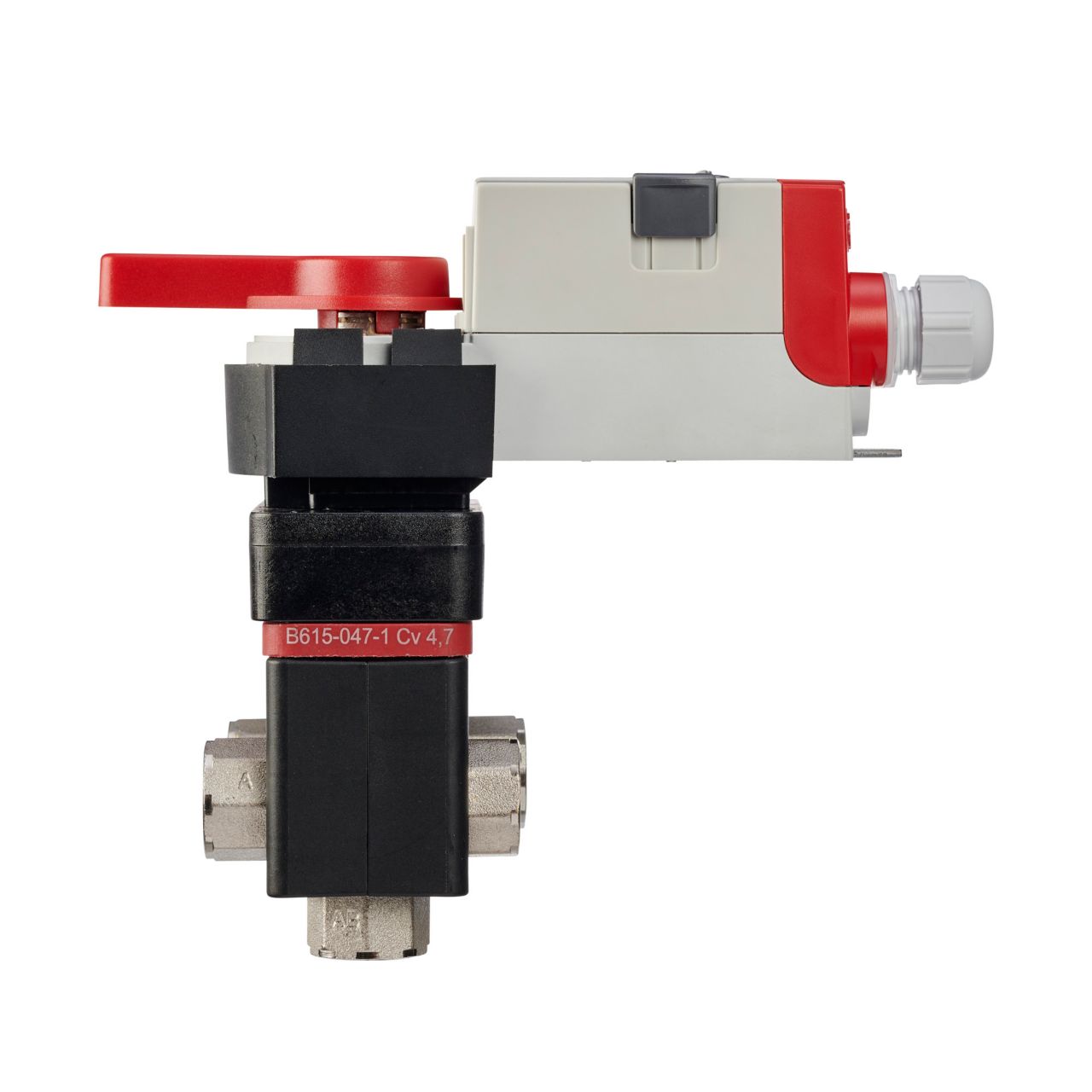

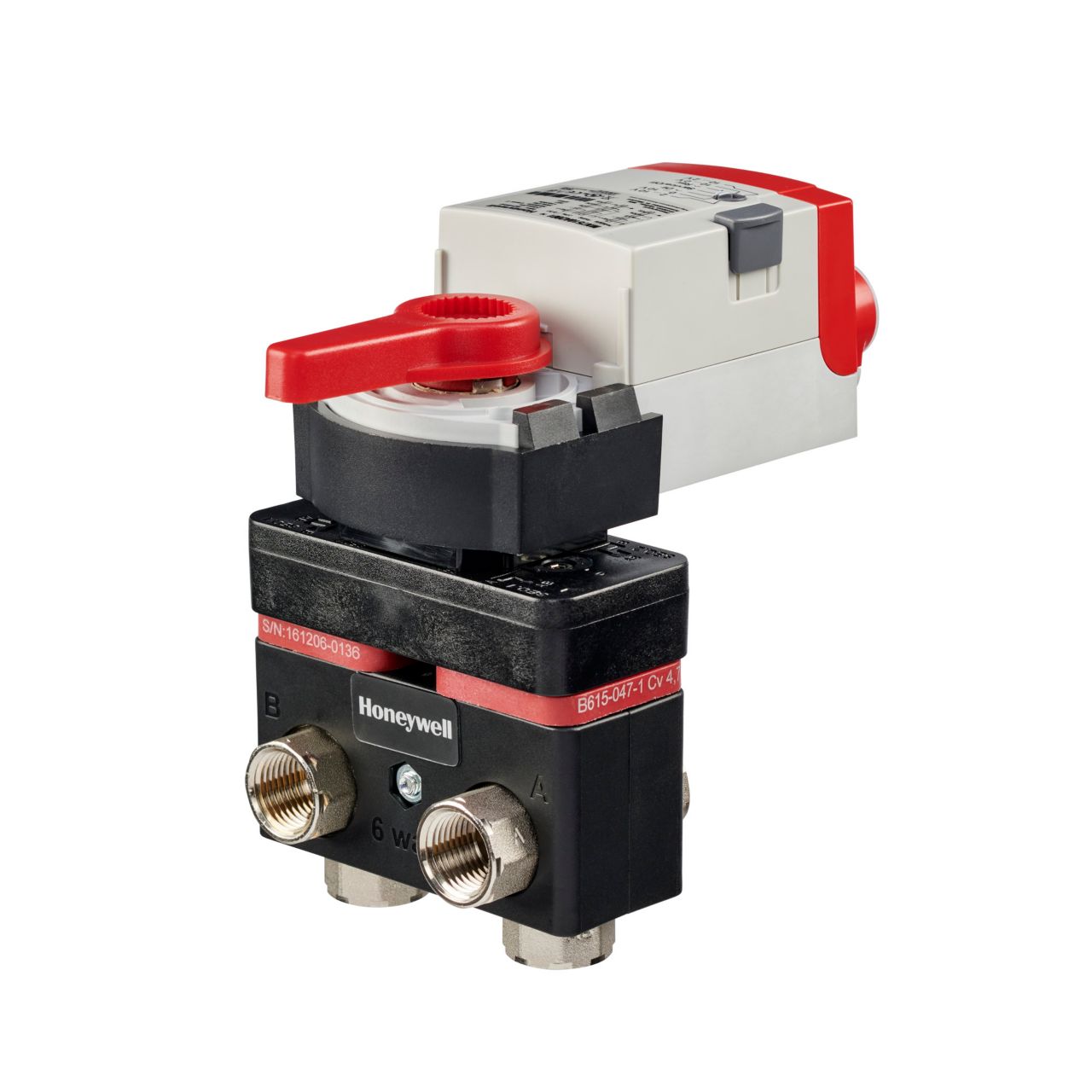

Honeywell VB6B100+100+AL VB6 Series 6-Way Control Valve and Actuator

Product Description

The Honeywell VB6B100+100+AL is a 6-way control valve used in 4-pipe systems with a single 2-pipe heat exchanger. This valve acts as both a change-over and control valve with a modulating actuator.

• Three-fourth inch connection.
• Nickel-plated forged brass body with stainless steel ball and stem.
• Suitable for water and glycol (60%) service.

Product Highlights

The VB6B100+100+AL is effective for managing chilled and hot water in closed loop systems. It includes a direct coupled actuator.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6B100+100+AL
• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 212 F (-18 C to 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F to 140 F (-20 C to 60 C)
• Electrical Connections: Field Wiring 14-22 AWG to Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
