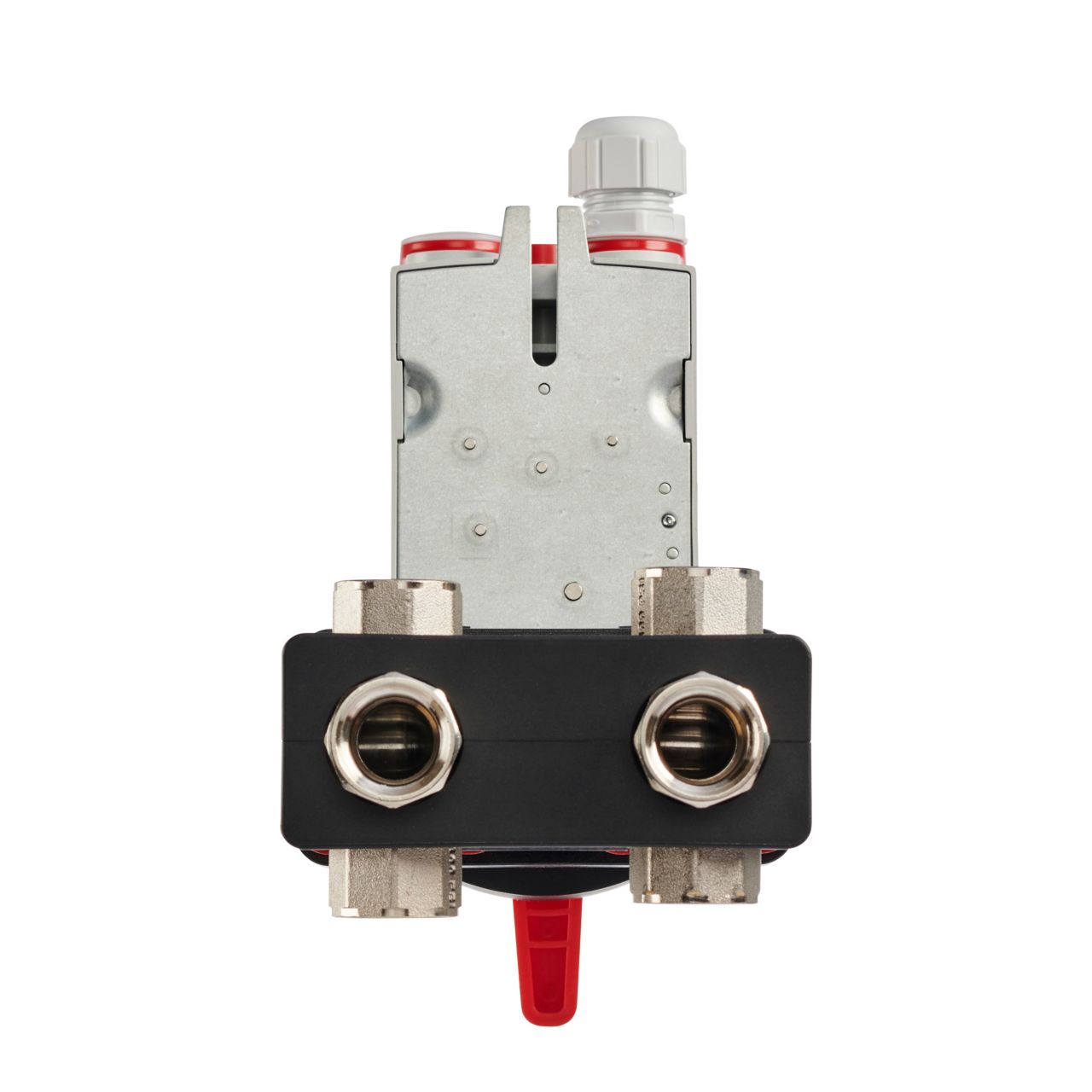

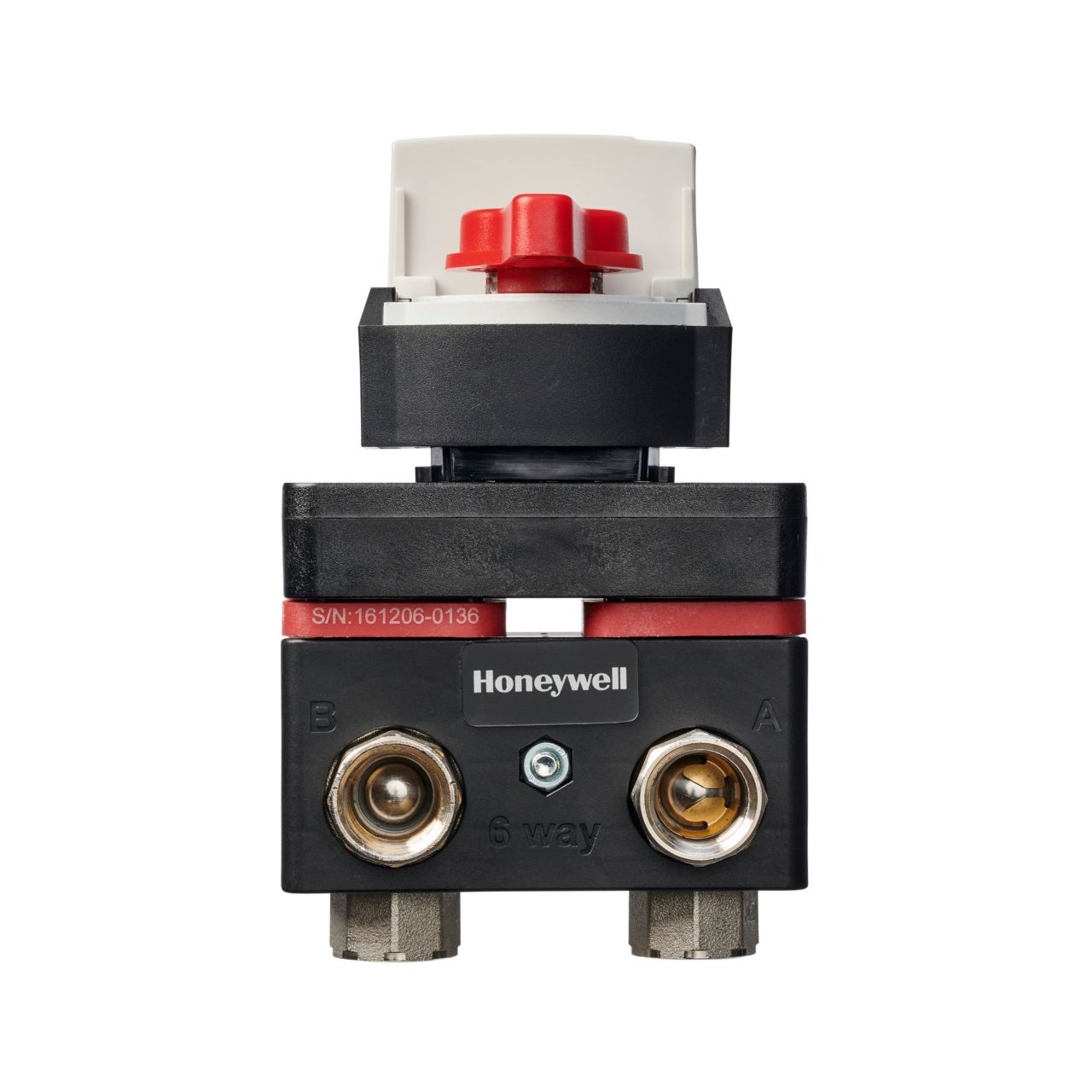

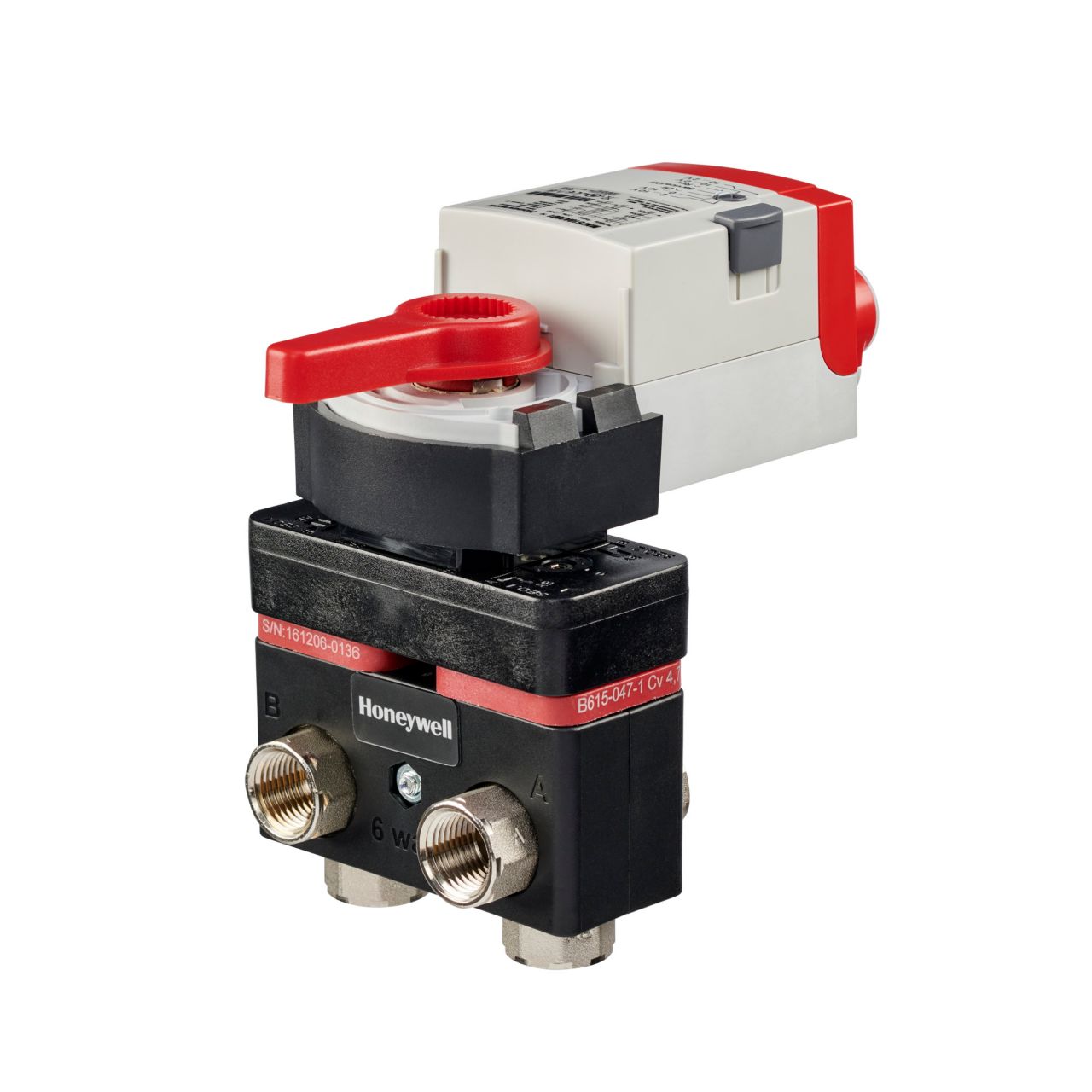

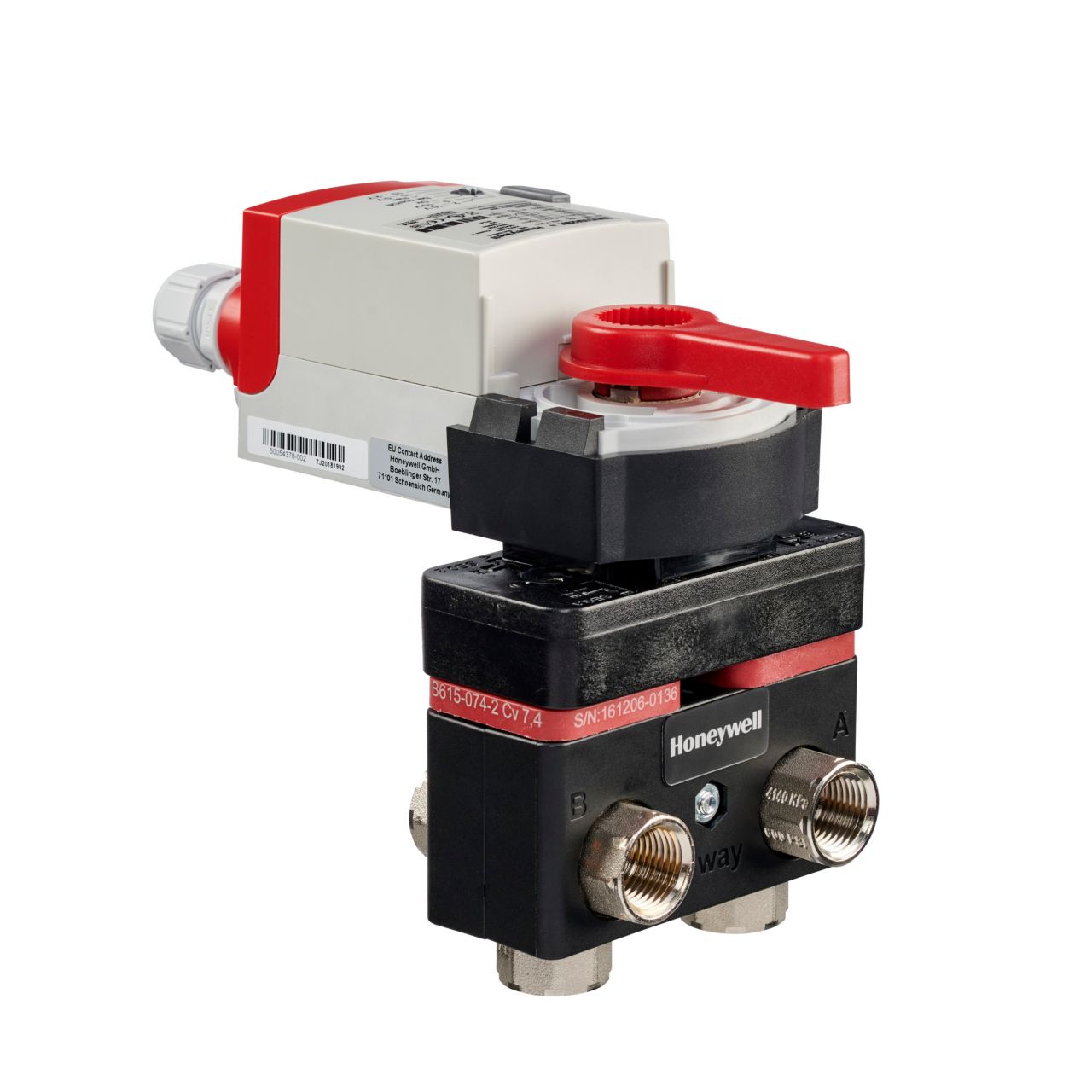

Honeywell VB6B100+074+AL VB6 Series 6-Way Control Ball Valve and Actuator

Product Description

The Honeywell VB6B100+074+AL is a six-way control ball valve with an integrated modulating actuator, designed for effective heating and cooling control in four-pipe systems. This valve connects a single two-pipe heat exchanger to four-pipe systems. The construction includes a nickel-plated forged brass body along with a stainless steel ball and stem, ensuring durability and reliable service.

• Constructed with a nickel-plated forged brass body.
• Features stainless steel ball and stem.
• Compatible with water and glycol at up to sixty percent concentration.

Product Highlights

This product is ideal for applications that demand precise temperature regulation.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell International Inc

Technical Specifications

• Part Number: VB6B100+074+AL
• Model: VB6VALVE
• Type: Valves
• Material: Brass
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
