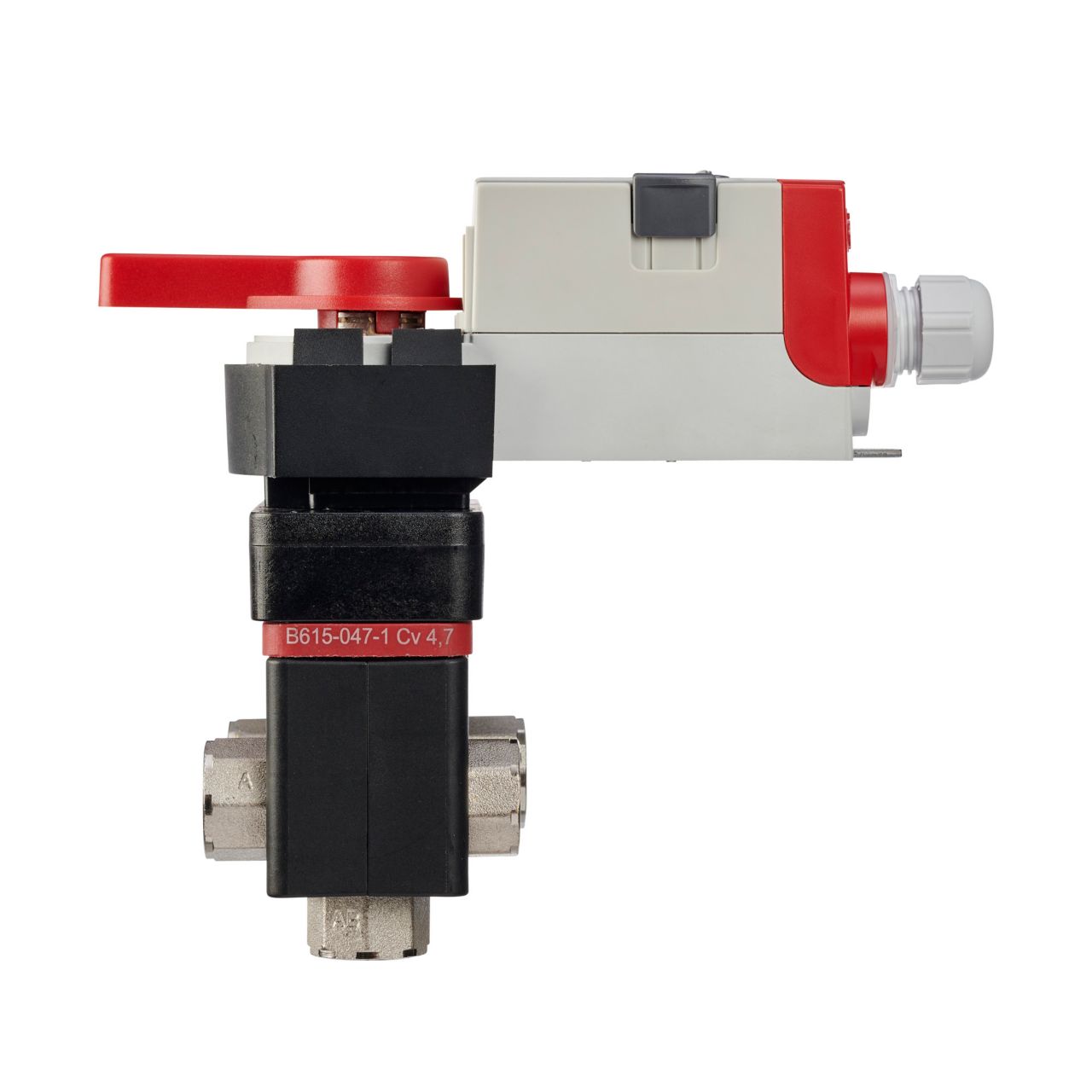

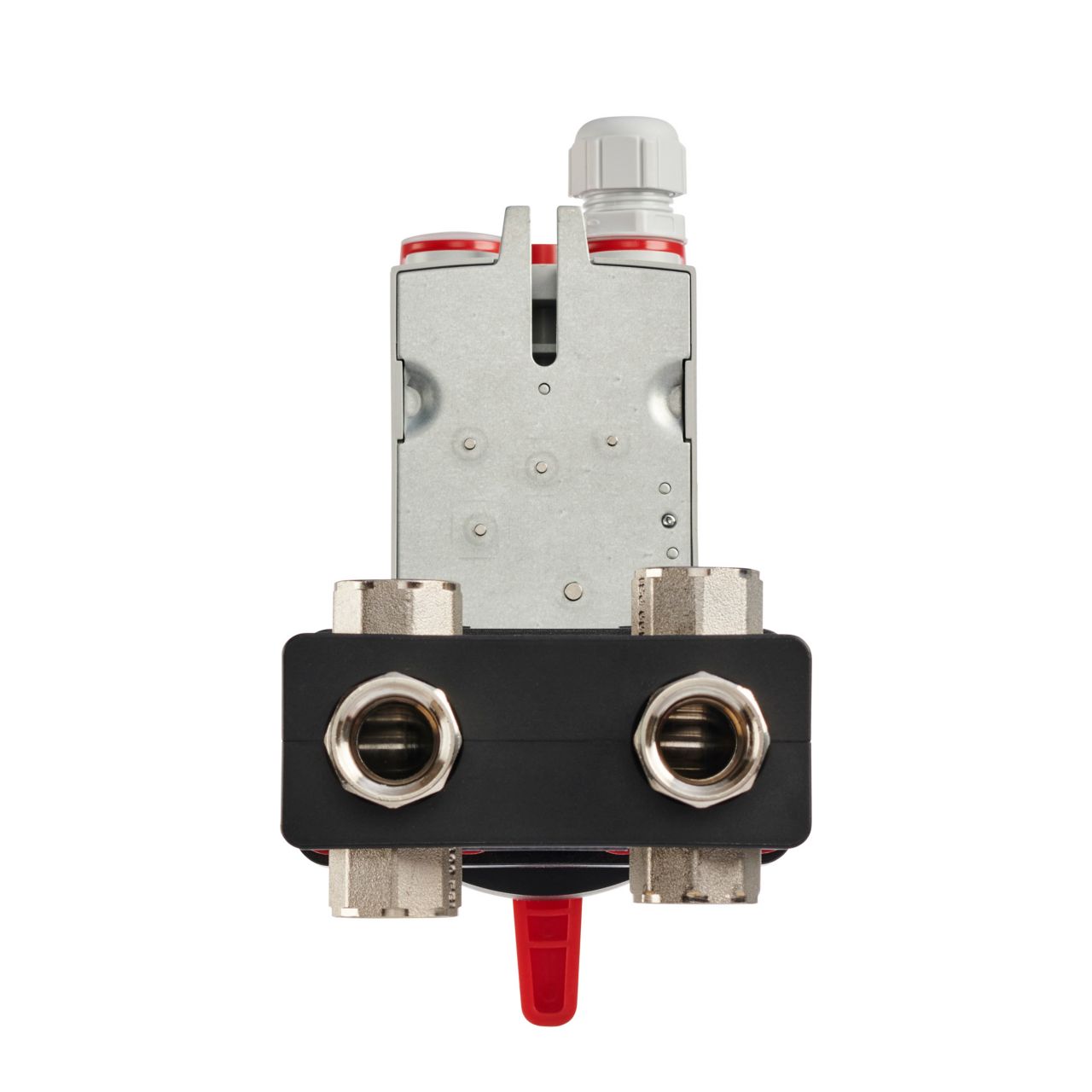

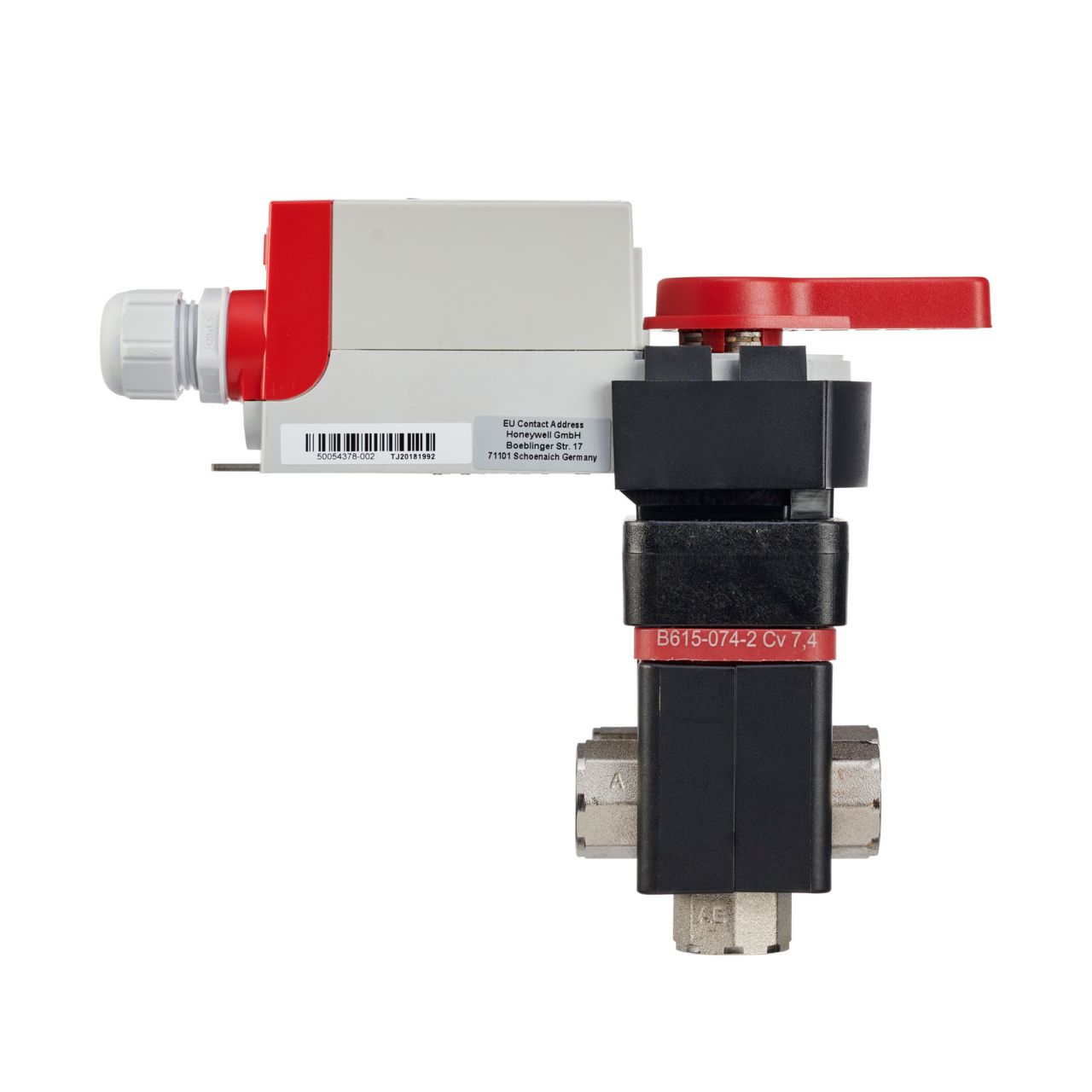

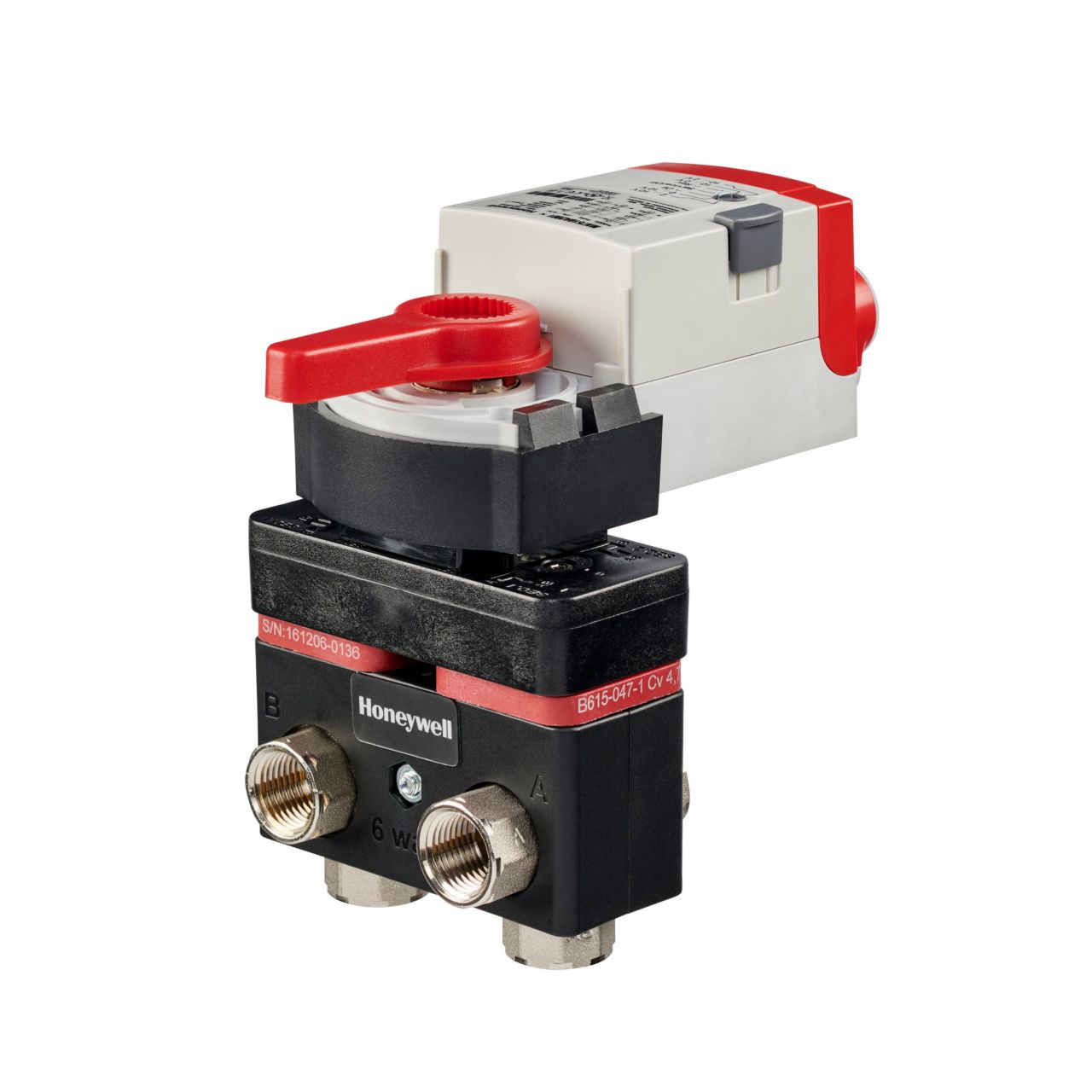

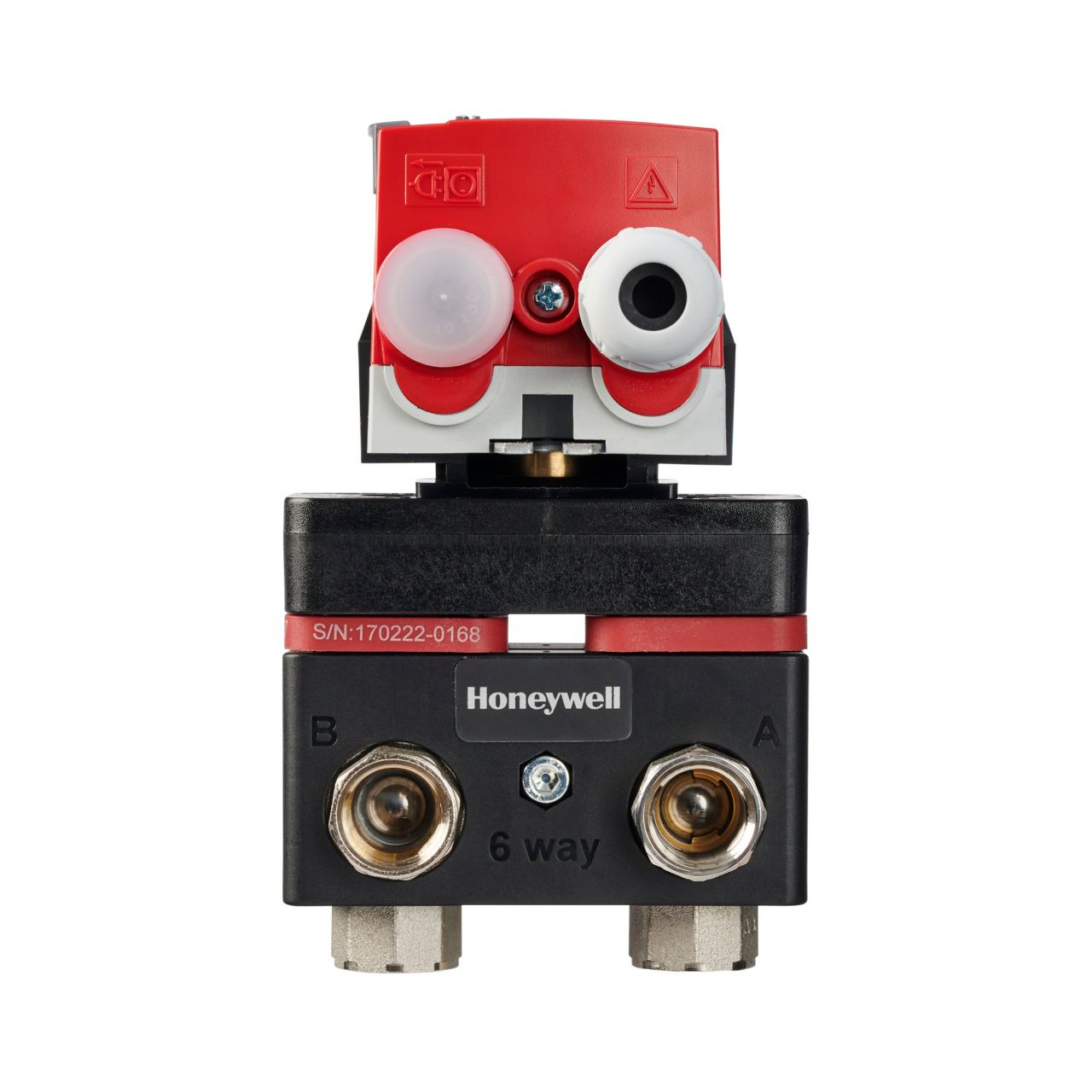

Honeywell VB6B100+047+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6B100+047+AL is a 6-way control valve assembly intended for closed loop systems. It consists of a nickel-plated forged brass body and stainless steel components, ensuring durability and reliability. This valve serves multiple functions, acting as both a change-over and control valve. It effectively links a single two-pipe heat exchanger to a four-pipe system. A direct coupled actuator with a non-spring return is included, enabling efficient control sequences for both heating and cooling applications.

• Valve body made from nickel-plated brass.
• Includes robust stainless steel balls and stems.
• Compatible with water and up to sixty percent glycol solutions.

Product Highlights

This valve is designed for effective hydraulic control in HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6B100+047+AL
• Flow Characteristic: Equal Percentage
• Service: Water, Glycol 60%
• Close-Off Pressure: 200 psi
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
• Power Consumption: 24 VAC
