HONEYWELL VB6B047+140+AL VB6 6-Way Control Valve with Modulating Actuator

Product Description

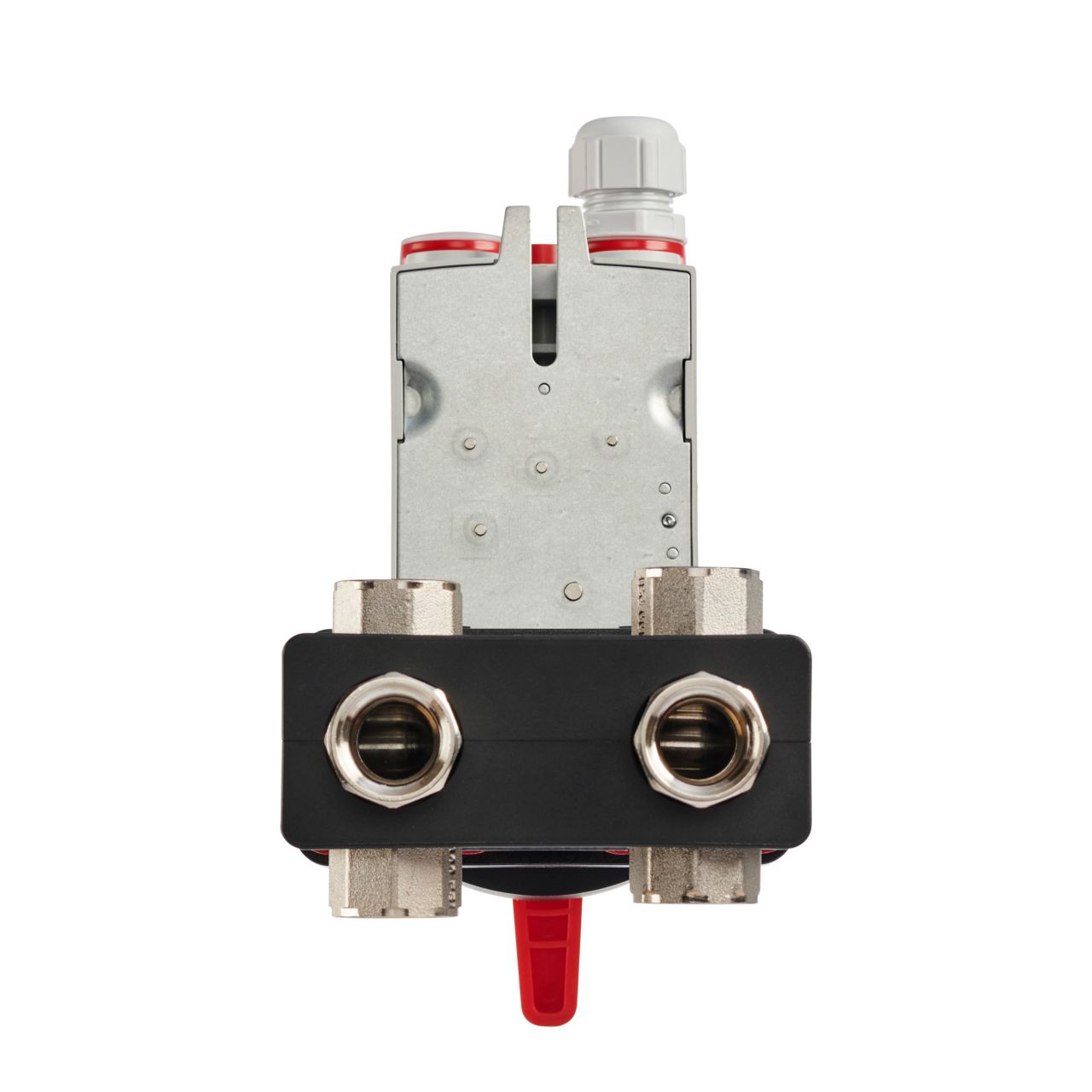

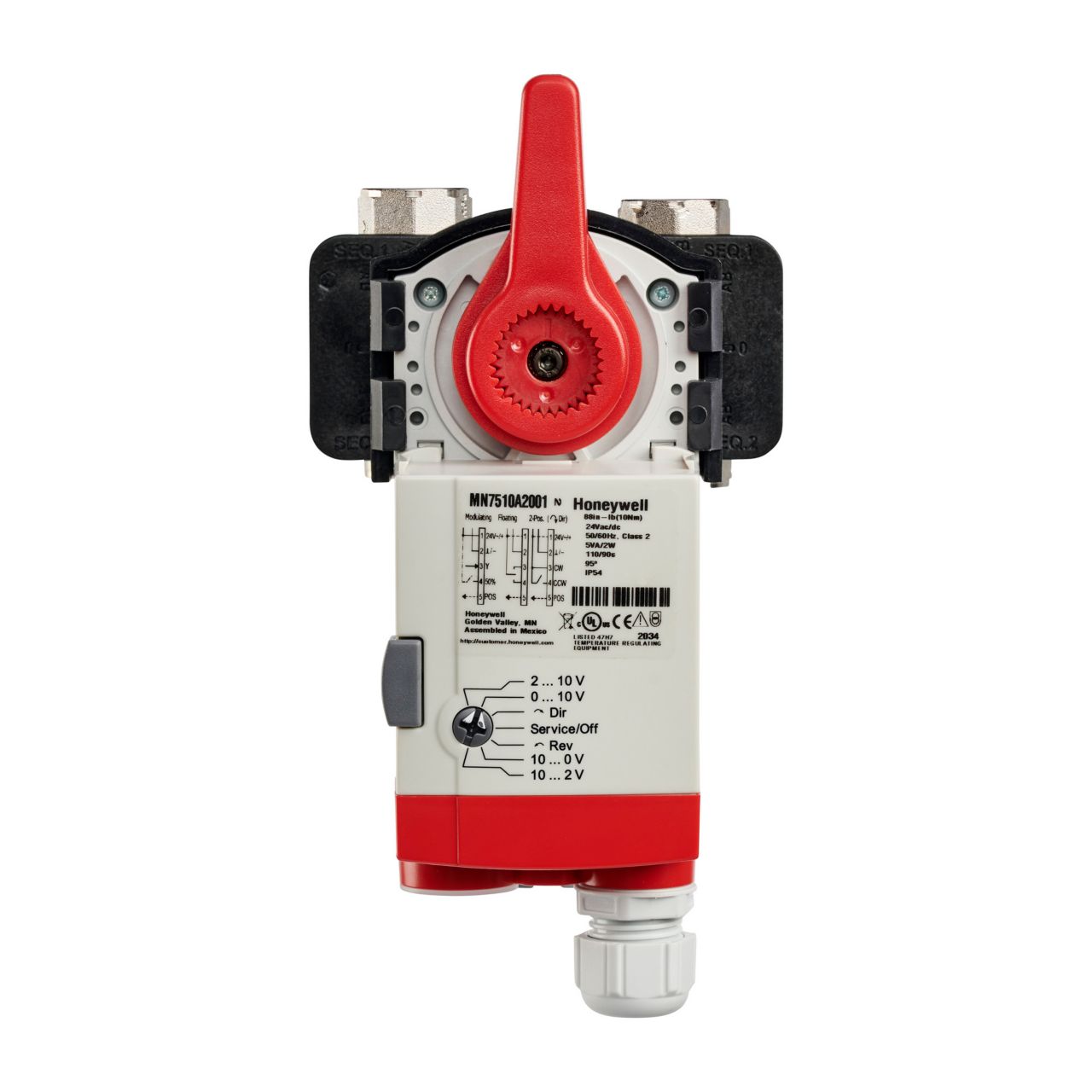

The Honeywell VB6B047+140+AL is a VB6 6-way ball valve designed for change-over and control functions in one unit.

It connects a single 2-pipe heat exchanger to 4-pipe systems, utilizing one modulating actuator. The valve features simultaneous rotation of two balls linked to a stem, opening supply and return ports in one control sequence while keeping the other closed. It is suitable for controlling chilled or hot water in closed loop systems.

• Functions as both a change-over valve and a control valve.
• Designed for 2-pipe to 4-pipe system connections.
• Features self-cleaning technology.

Product Highlights

This valve is highly versatile and efficient for applications such as chilled beam units, fan coil units, and small air handling coils.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6B047+140+AL

Technical Specifications

• Model: VB6VALVE
• Item: 3/4 inch 6W VLV 4.7/14CV 24V MOD
• OEM: Honeywell
• OEM #: VB6B047+140+AL
• Condition: New OEM Original
