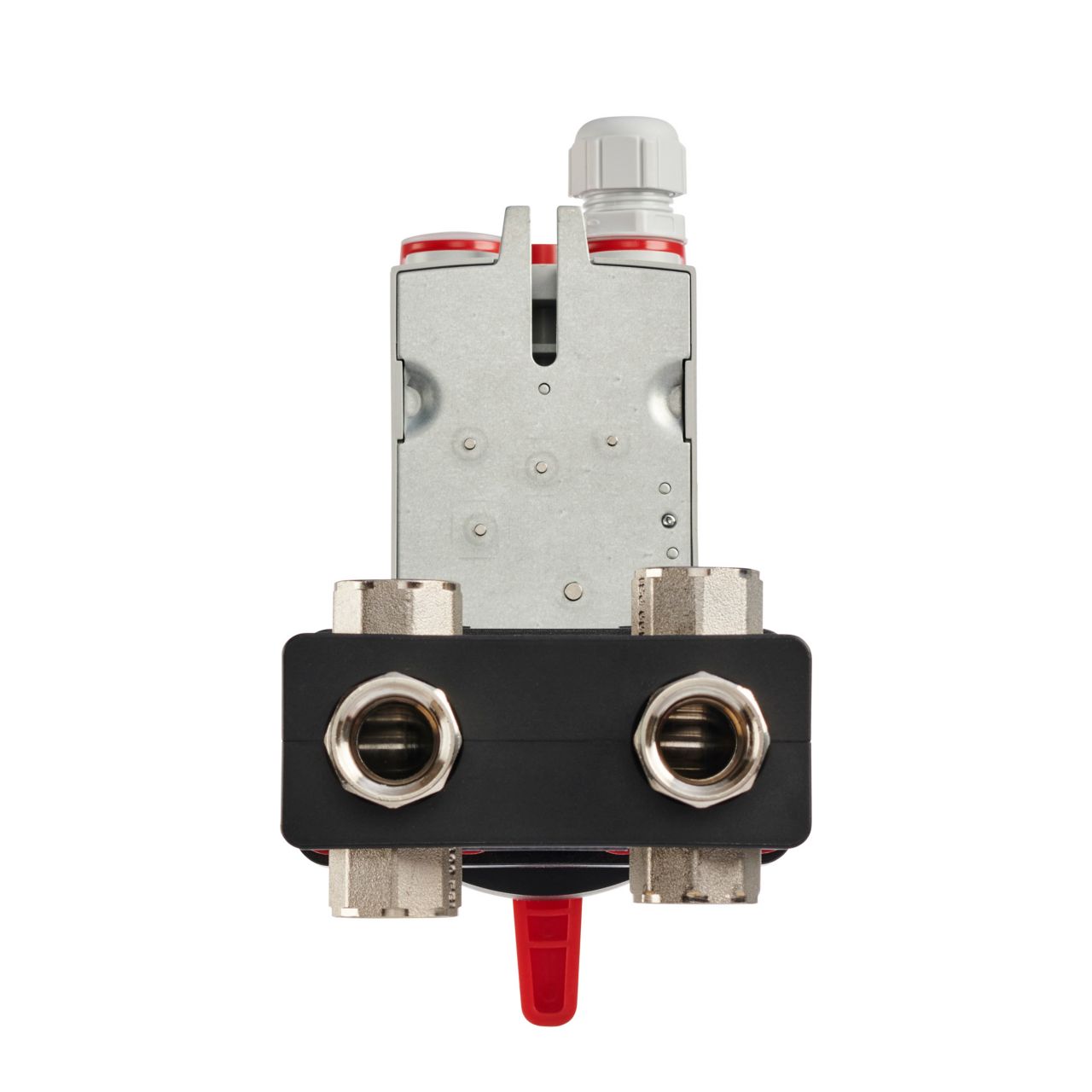

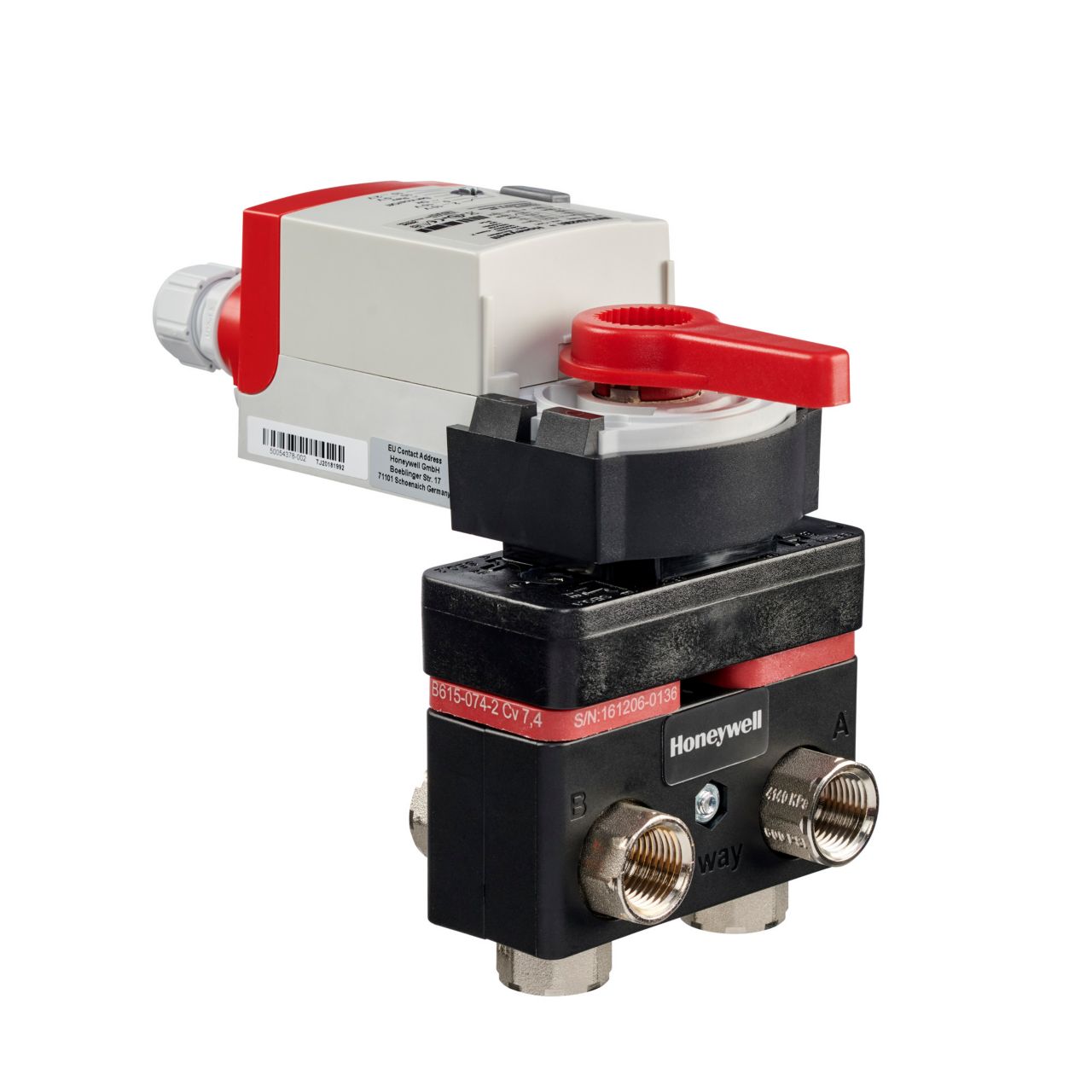

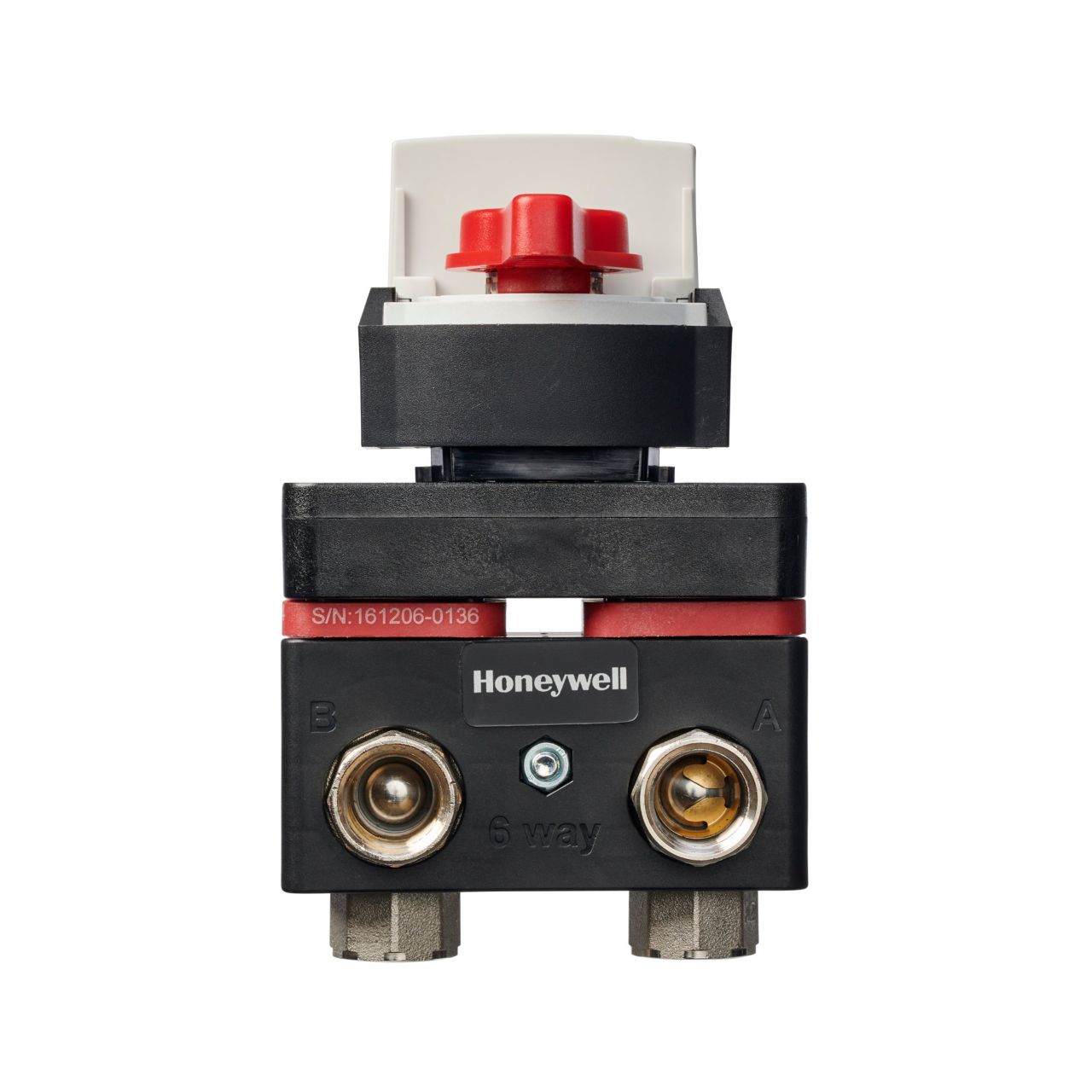

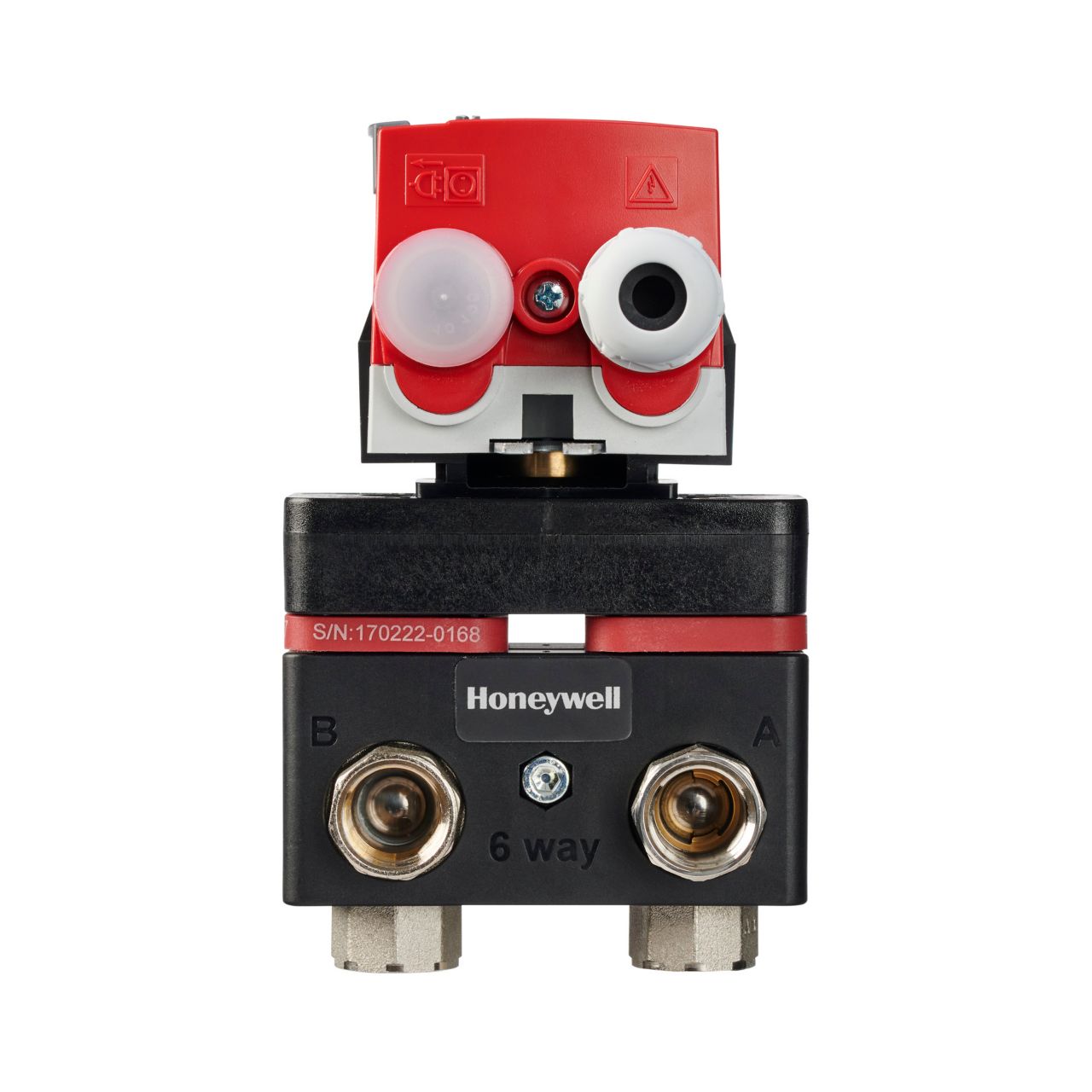

HONEYWELL VB6B047+100+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6B047+100+AL is a six-way ball valve ideal for control in four-pipe systems. This valve uses one modulating actuator to manage heating and cooling effectively. It features two balls that rotate together to open designated ports while keeping others closed, preventing flow mixing. Designed specifically for chilled or hot water control in closed loop systems, it ensures precise temperature regulation.

• Nickel-plated brass body for durability.
• Stainless steel balls and stems enhance performance.
• Ideal for four-pipe systems with a single heat exchanger.

Product Highlights

Durable construction with efficient water management capabilities.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6B047+100+AL

Technical Specifications

• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0°F to 212°F (-18°C to 100°C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5°F to 140°F (-20°C to 60°C)
• Electrical Connections: Field Wiring 14-22 AWG to screw terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-centering shaft adapter
