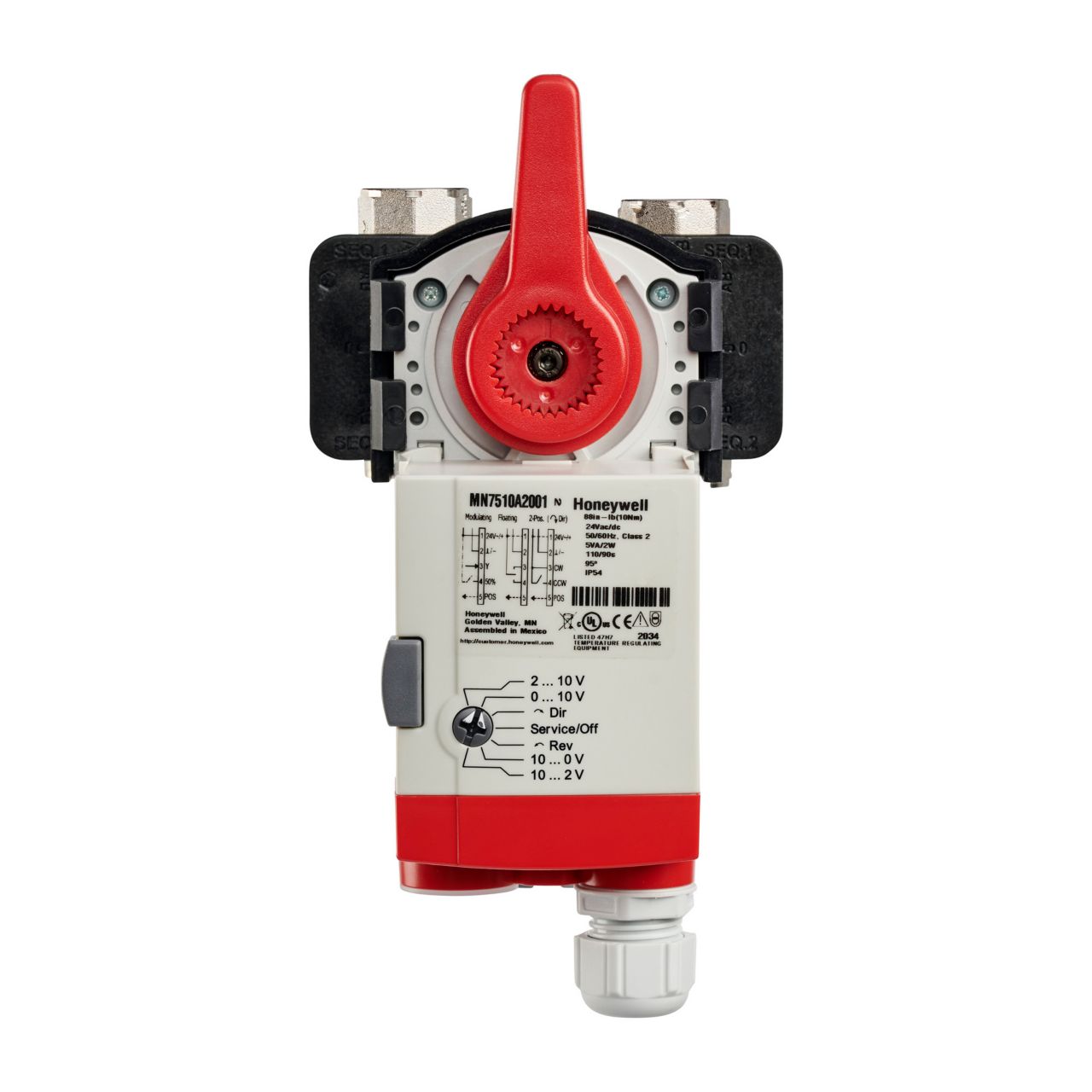

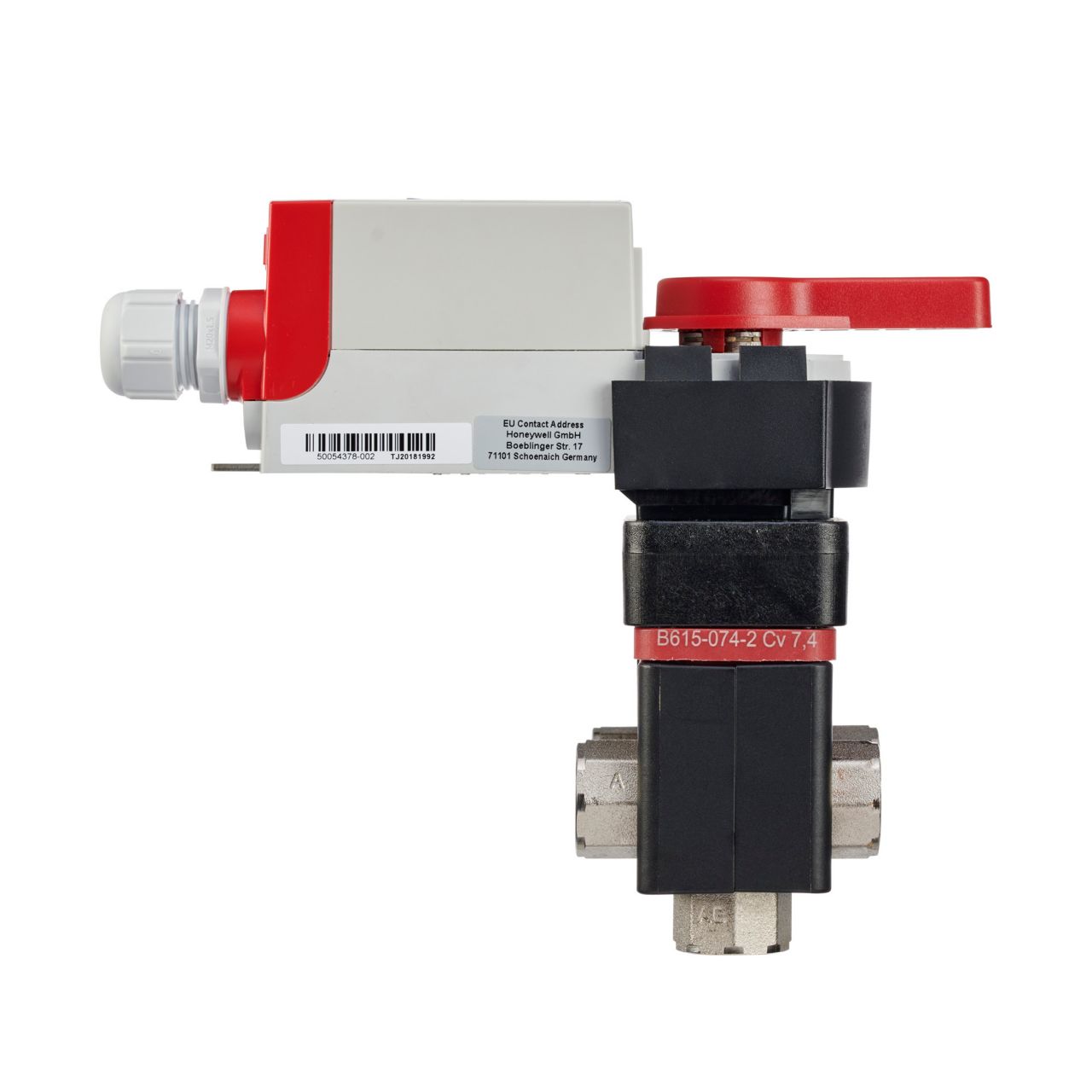

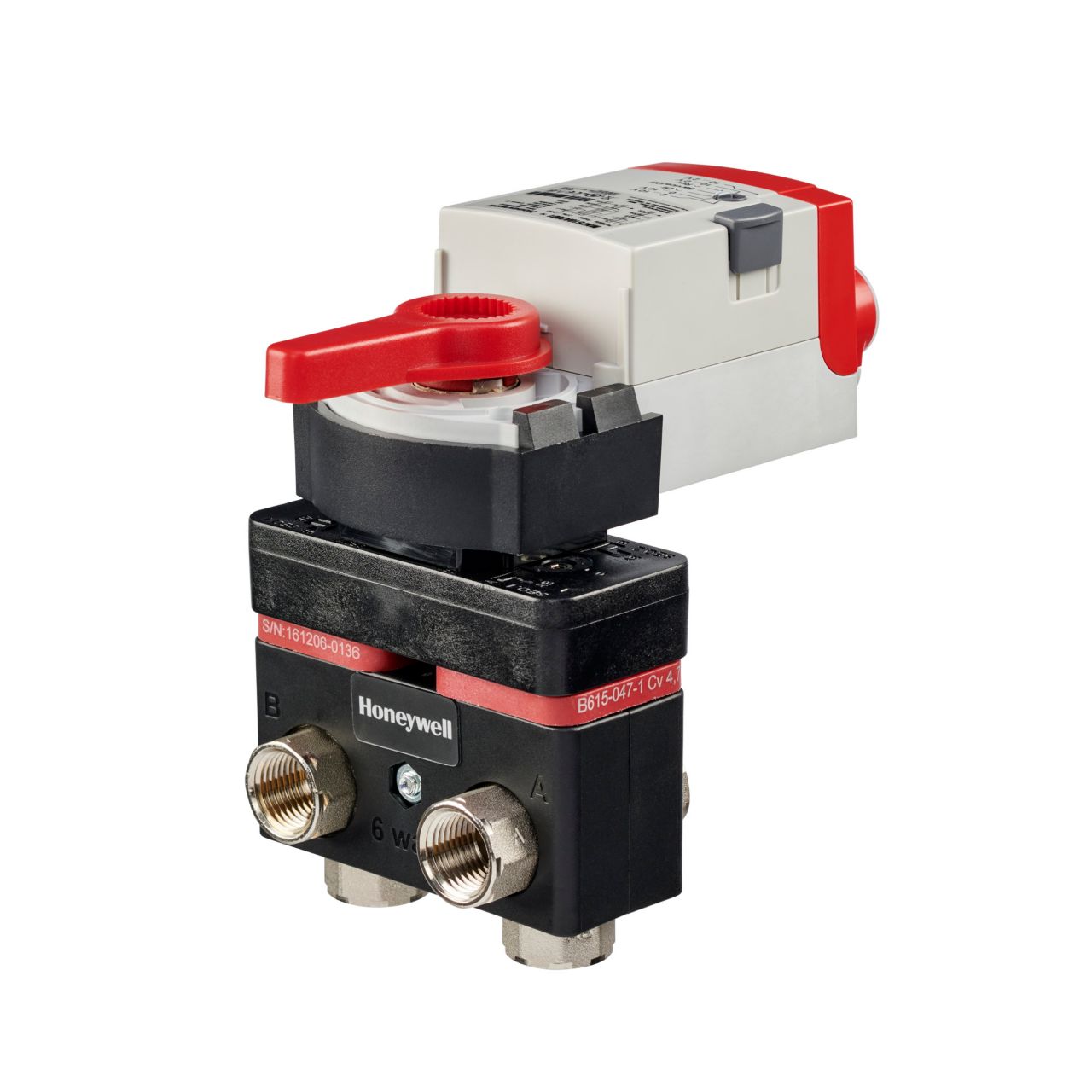

Honeywell VB6B047+047+AL VB6 6-Way Control Valve and Actuator

Product Description

The Honeywell VB6B047+047+AL is a 6-way control valve suitable for 4-pipe systems. This valve combines change-over functionality with control capabilities, using a single modulating actuator. It effectively connects a 2-pipe heat exchanger to 4-pipe systems. The design includes simultaneous rotation of two mechanically linked balls, facilitating the opening of supply and return ports during one control sequence while the other sequence remains closed. This function prevents unwanted flow mixing, making it ideal for managing chilled or hot water in closed-loop systems.

• Nickel-plated brass body adds durability.
• Features stainless steel balls and stems for longevity.
• Equipped with MN7510A2001 modulating actuator for precise control.

Product Highlights

Efficiently controls water flow in HVAC systems, ensuring optimal performance and reliability.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6B047+047+AL

Technical Specifications

• Model: VB6VALVE
• Unit of Measurement: EA (Each)
• Production Status: Active
