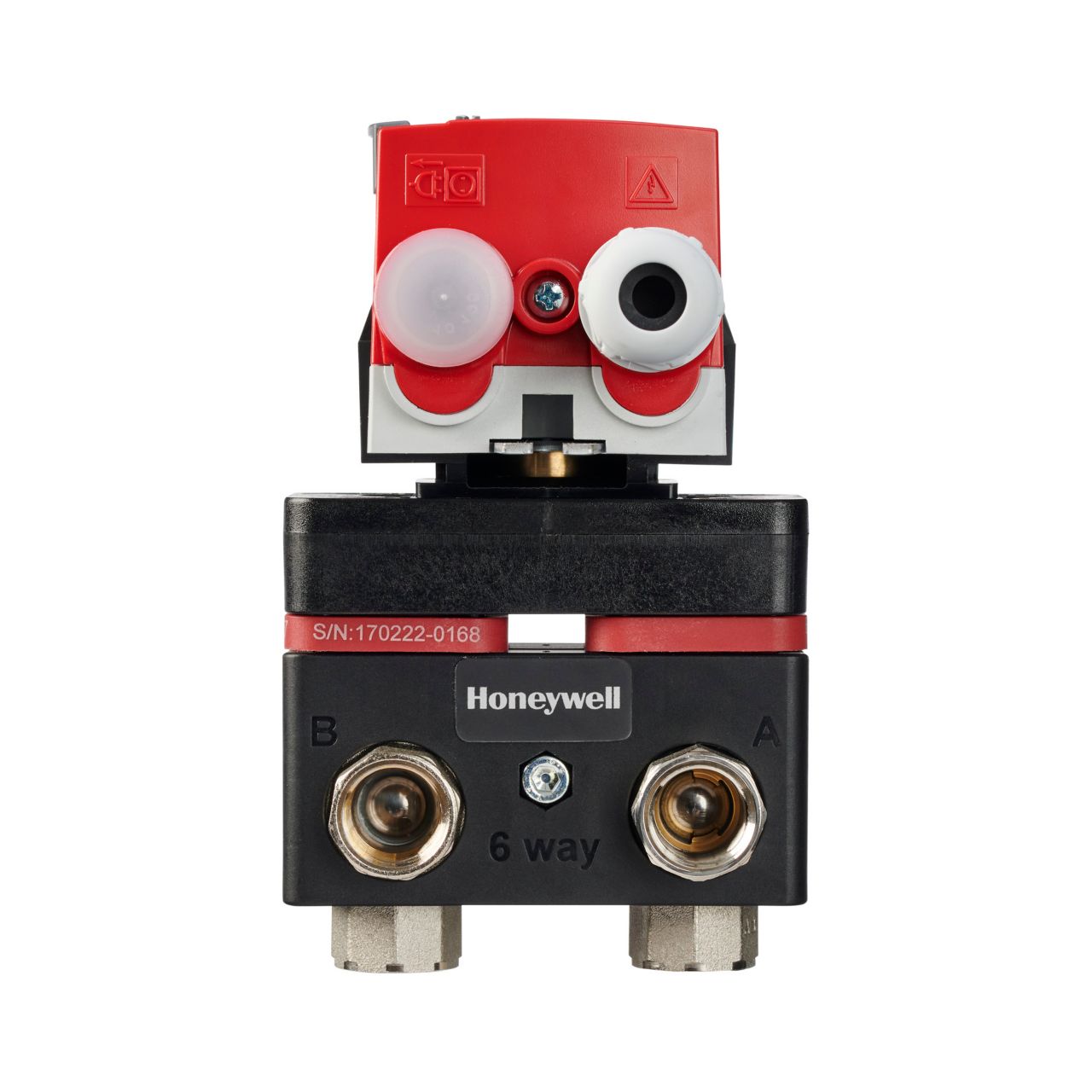

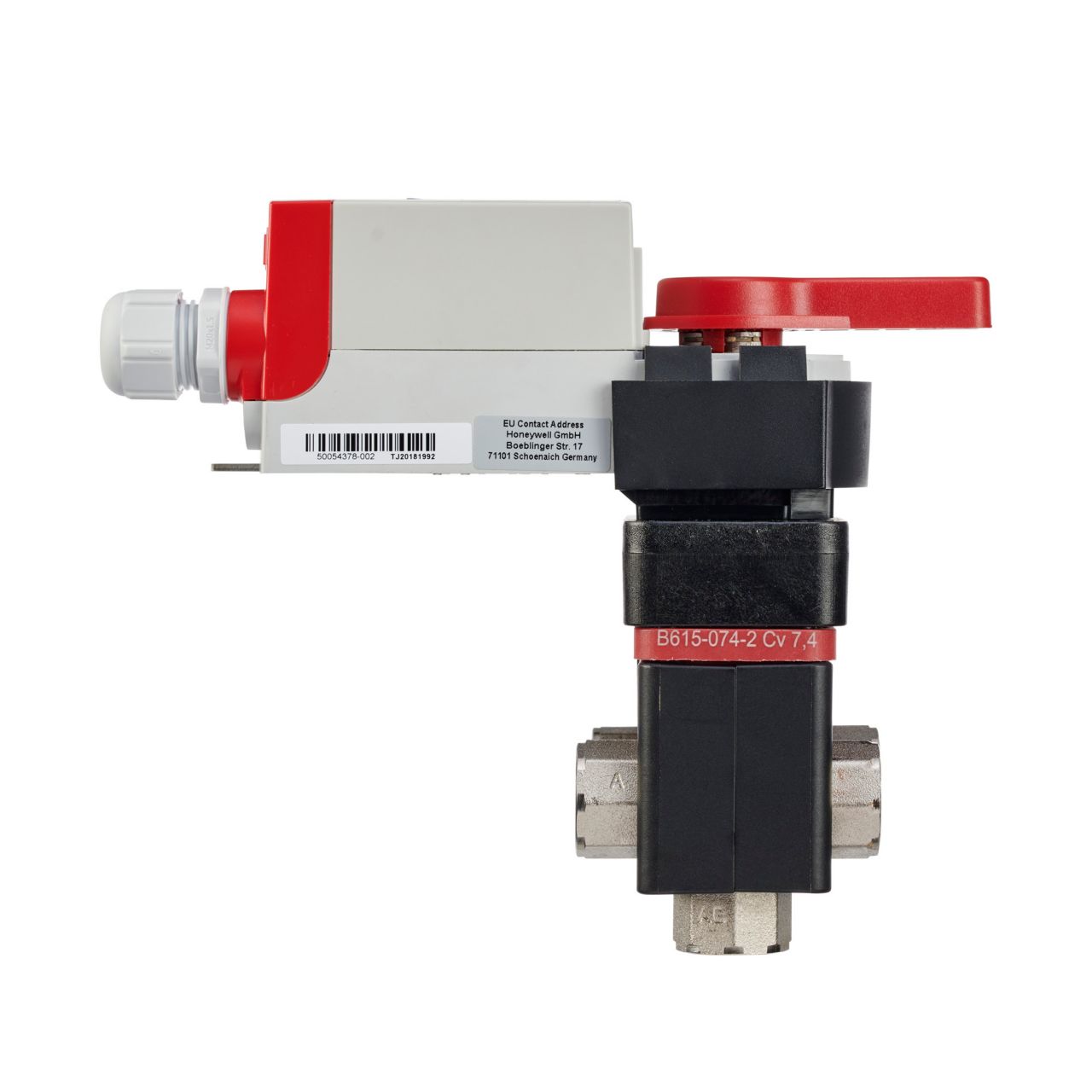

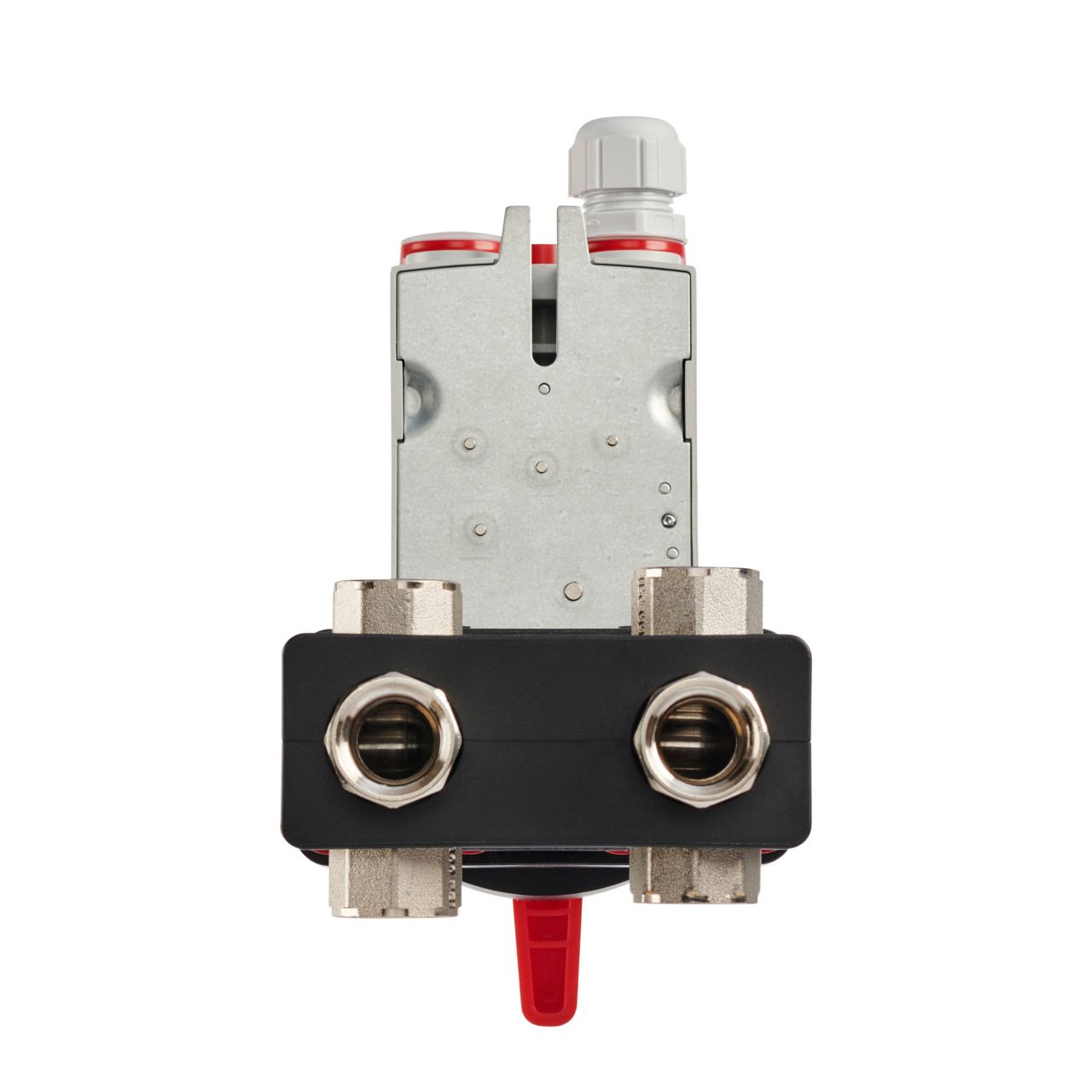

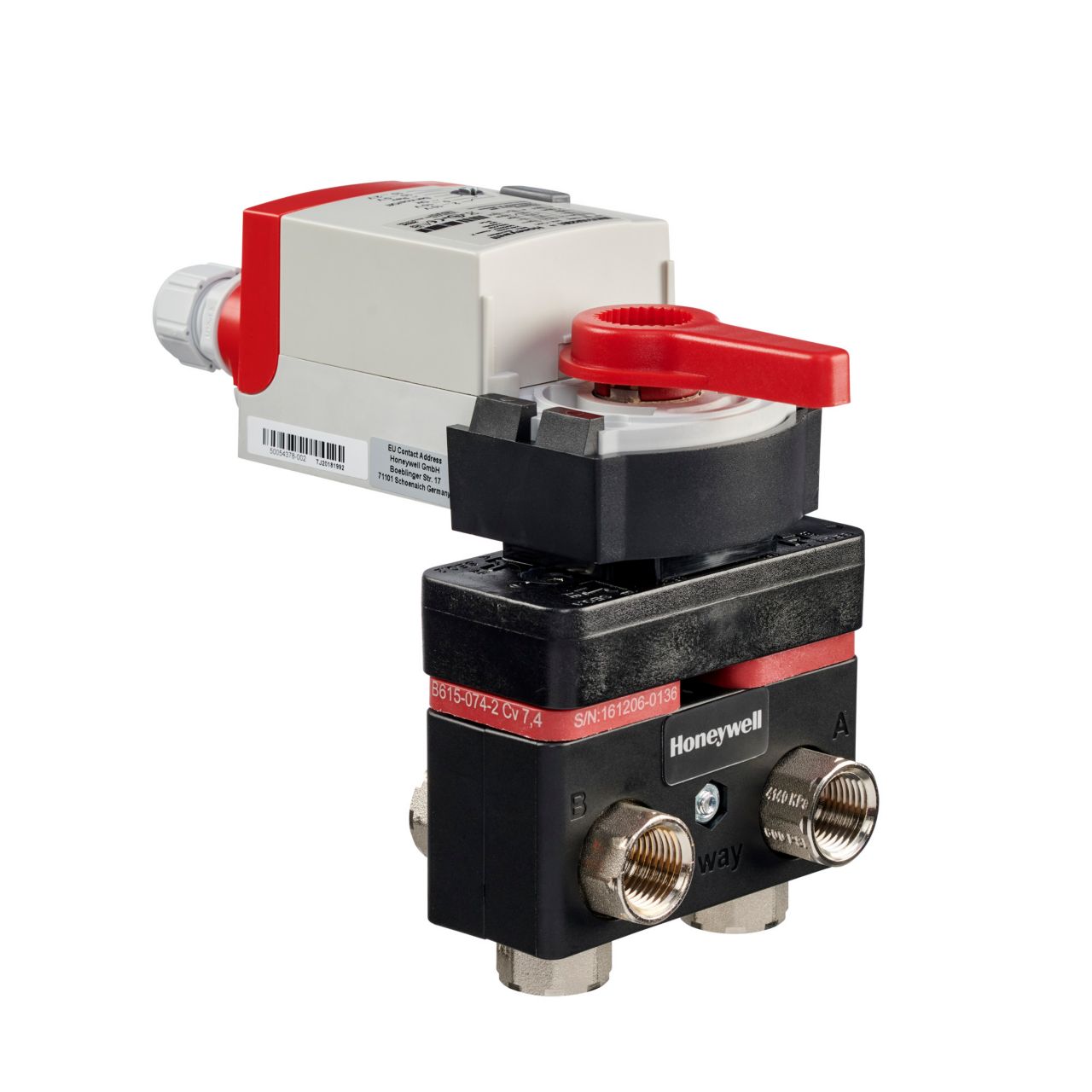

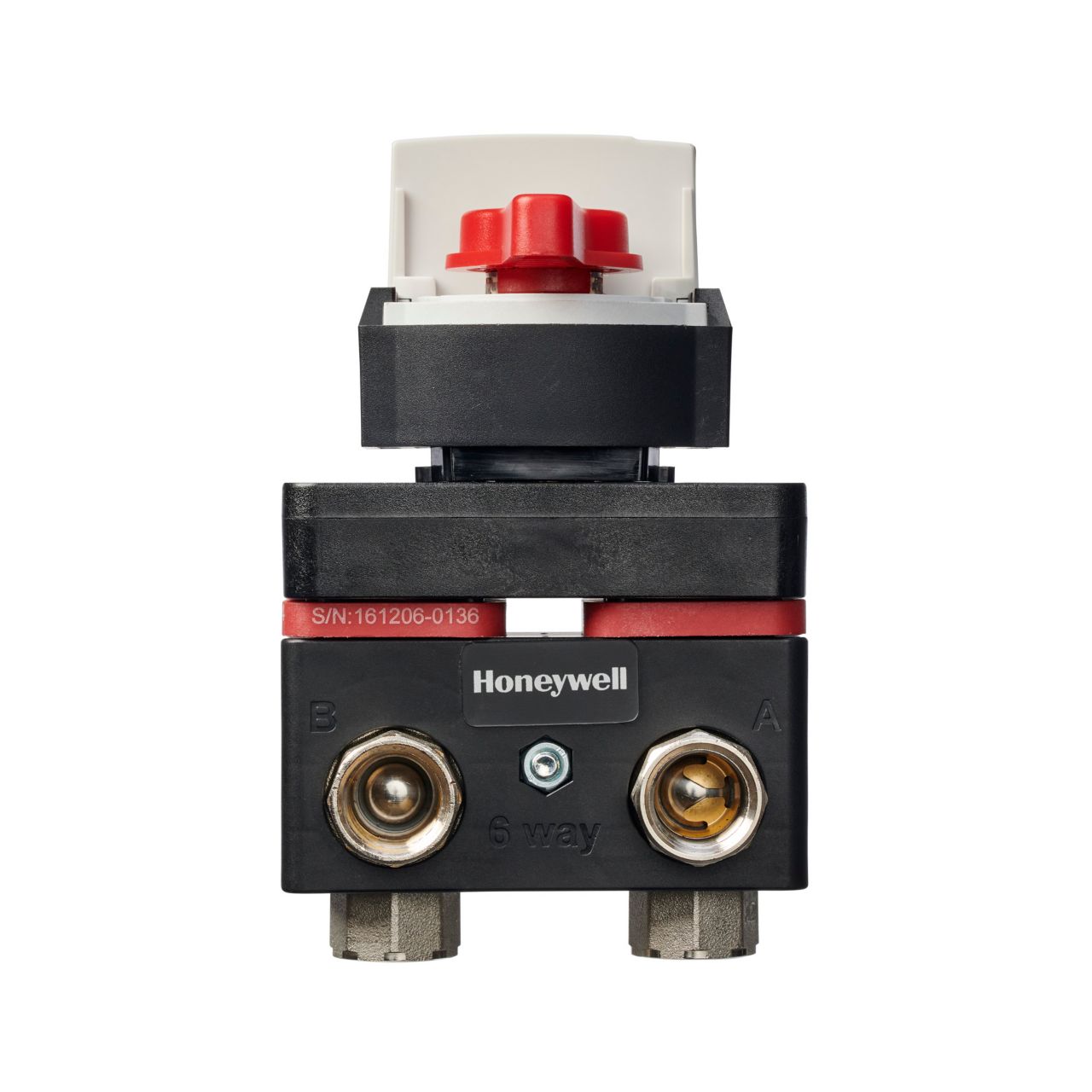

HONEYWELL VB6A074+074+AL VB6 6-Way Control Valve with Modulating Actuator

Product Description

The Honeywell VB6A074+074+AL is a 6-way control valve suitable for 4-pipe systems. This valve combines change-over and control functions in one unit. It features two mechanically connected balls that rotate together to open both supply and return ports while keeping the alternate flow blocked. This prevents mixing of flow between hot and cold water. It is ideal for systems using a single heat exchanger to manage chilled or hot water.

• Valve size: Half Inch
• Excellent for closed loop systems
• Includes MN7510A2001 modulating actuator

Product Highlights

Designed for efficiency in controlling heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• Weight: 1.5 lbs

Technical Specifications

• Item Number: VB6A074+074+AL
• Part Number: VB6A074+047+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Condition: New
• Unit of Measurement: Each
• Production Status: Active
