HONEYWELL VB6A074+012+AL VB6 Series 6-Way Control Valve and Actuator

Product Description

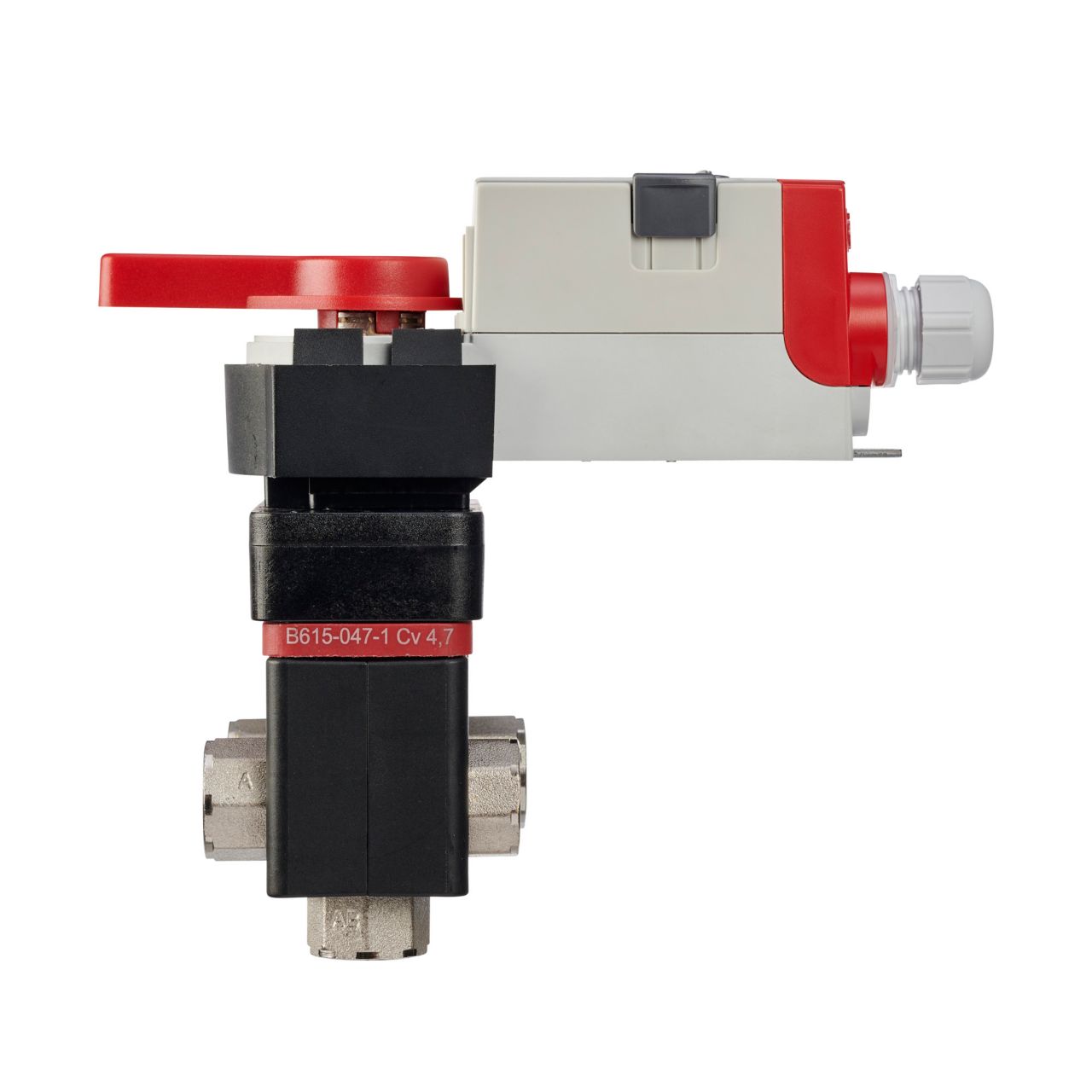

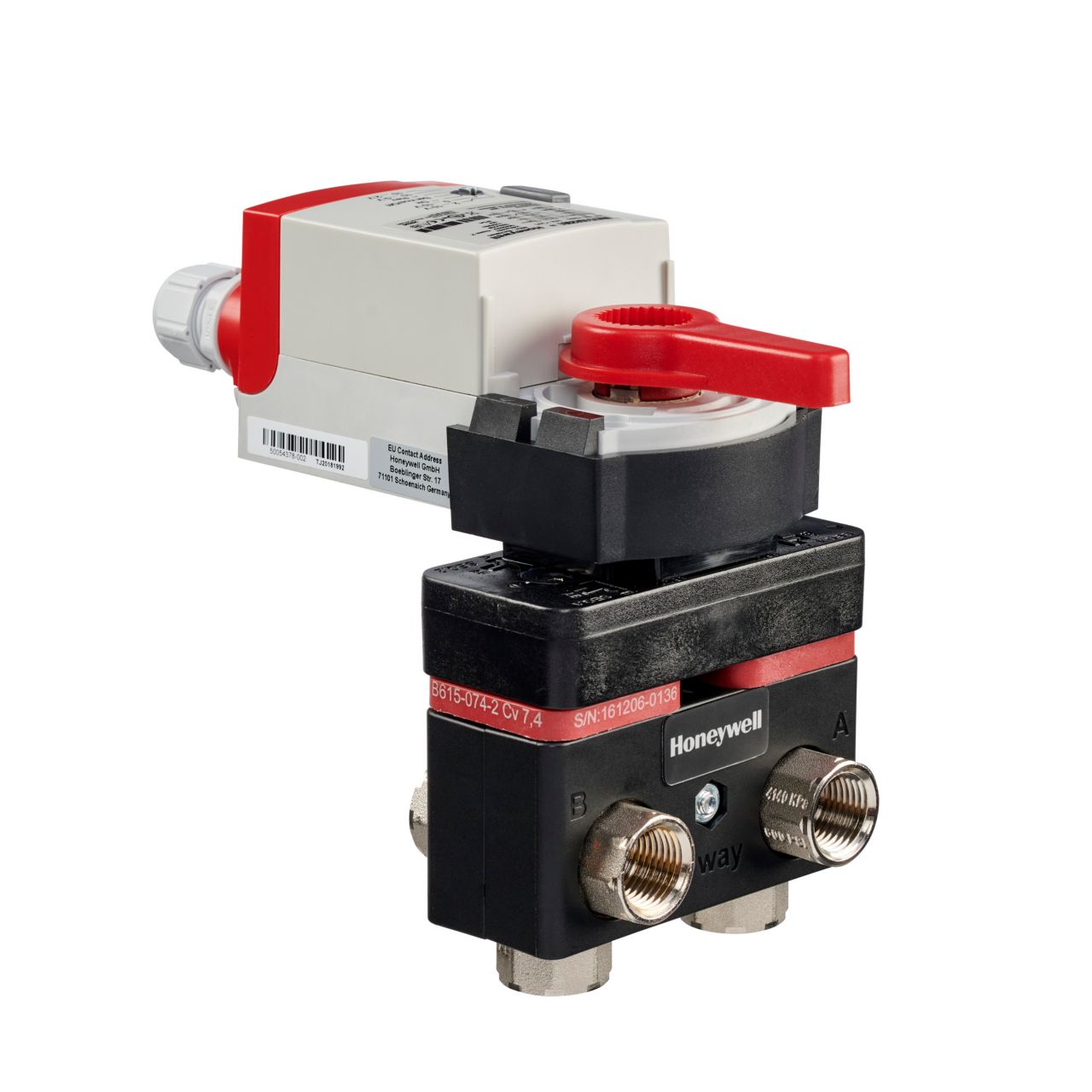

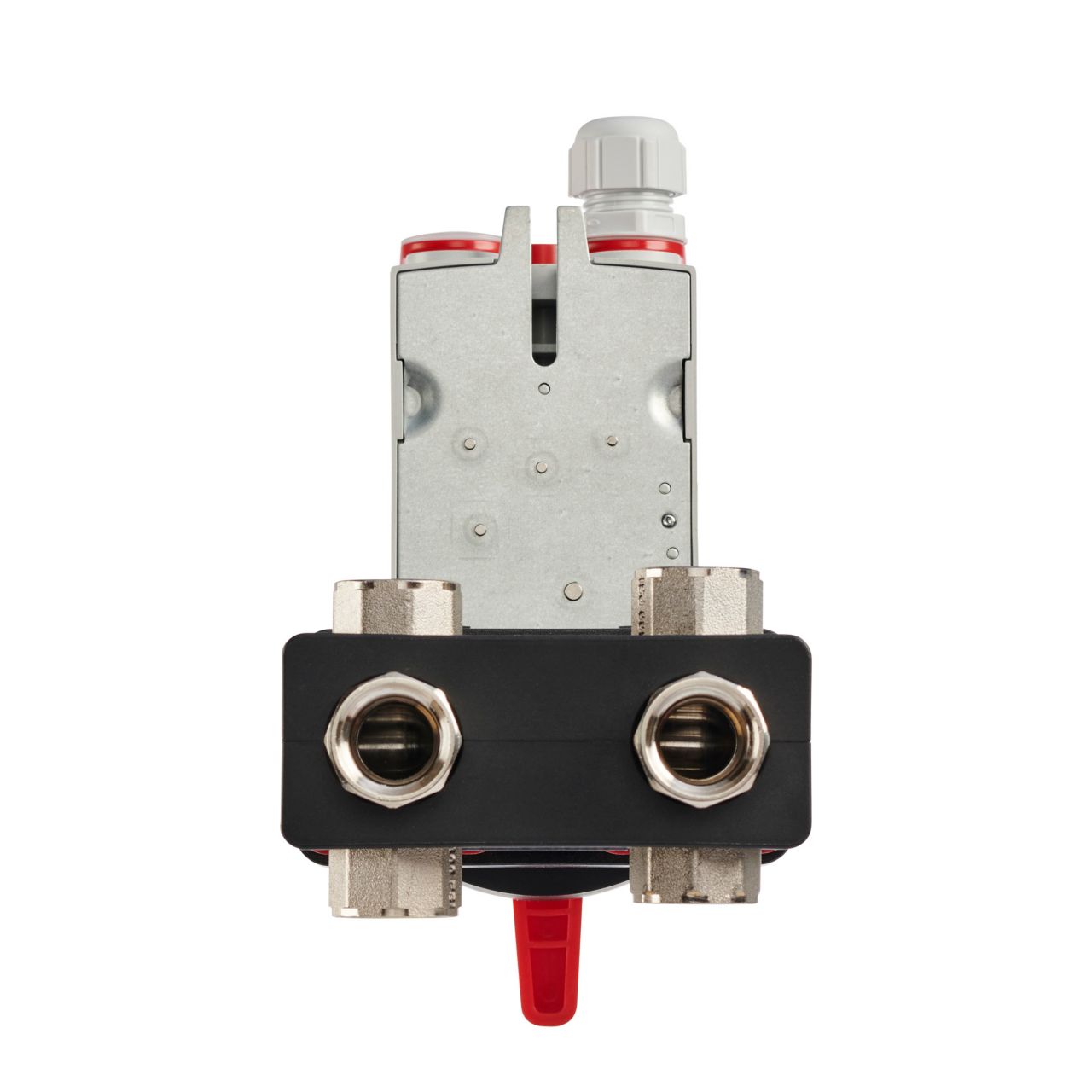

The Honeywell VB6A074+012+AL is a reliable six-way control valve assembly that includes a modulating actuator. It is suitable for four-pipe systems, enabling both change-over and control for single coil applications. This assembly comes with a nickel-plated forged brass body and stainless steel ball and stem for enhanced durability.

• 1/2 inch connection for diverse piping arrangements.
• Features Cv values of 7.4 and 1.2 for efficient operation in sequences one and two.
• Direct coupled actuator with removable access cover for easy wiring access.

Product Highlights

This valve assembly is designed for performance in water and glycol systems, operating efficiently under various temperatures and conditions.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Model Code: VB6A074+012+AL
• Part Number: VB6A074+012+AL
• Type: Valves
• Material: Brass
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
• Weight: 1.5 lbs
