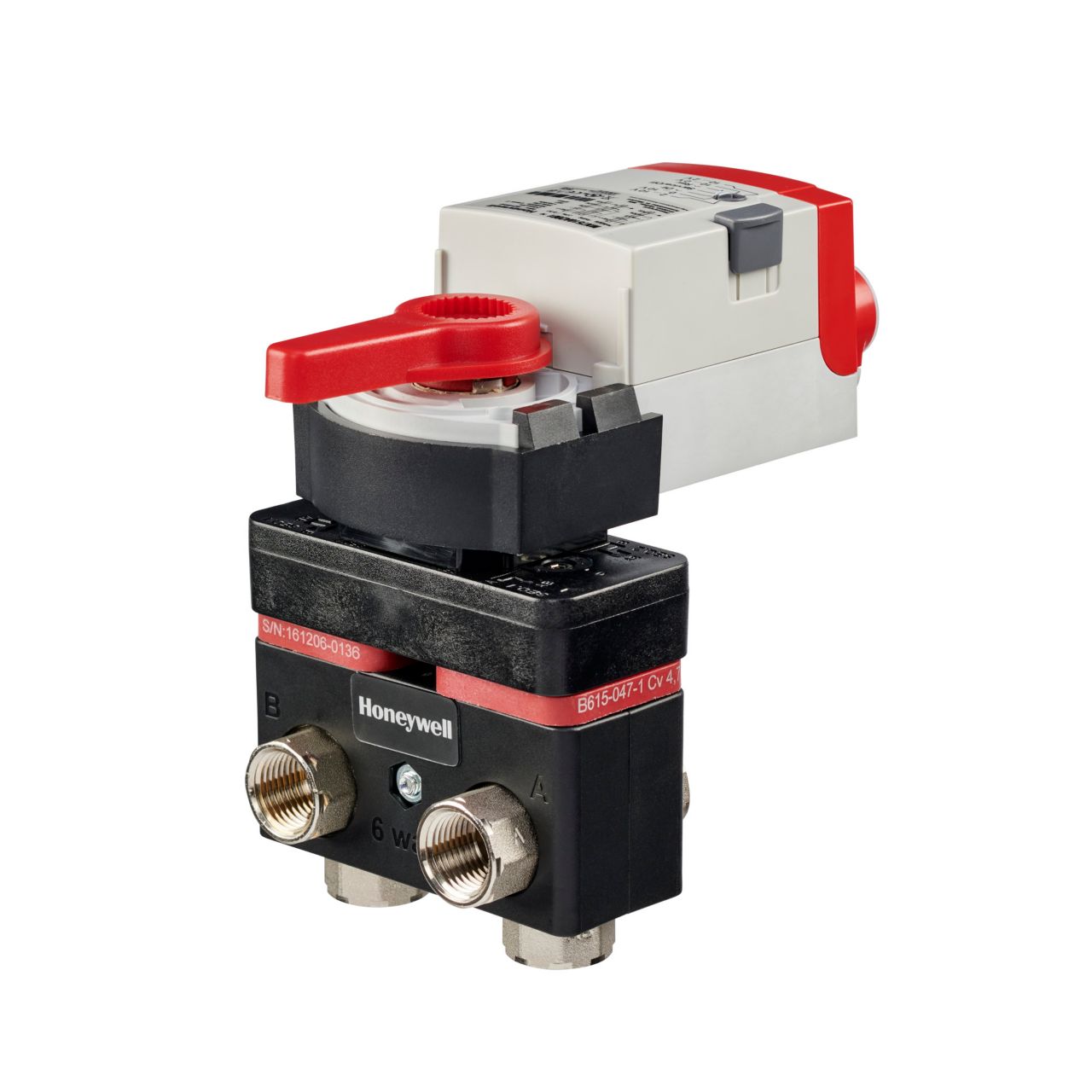

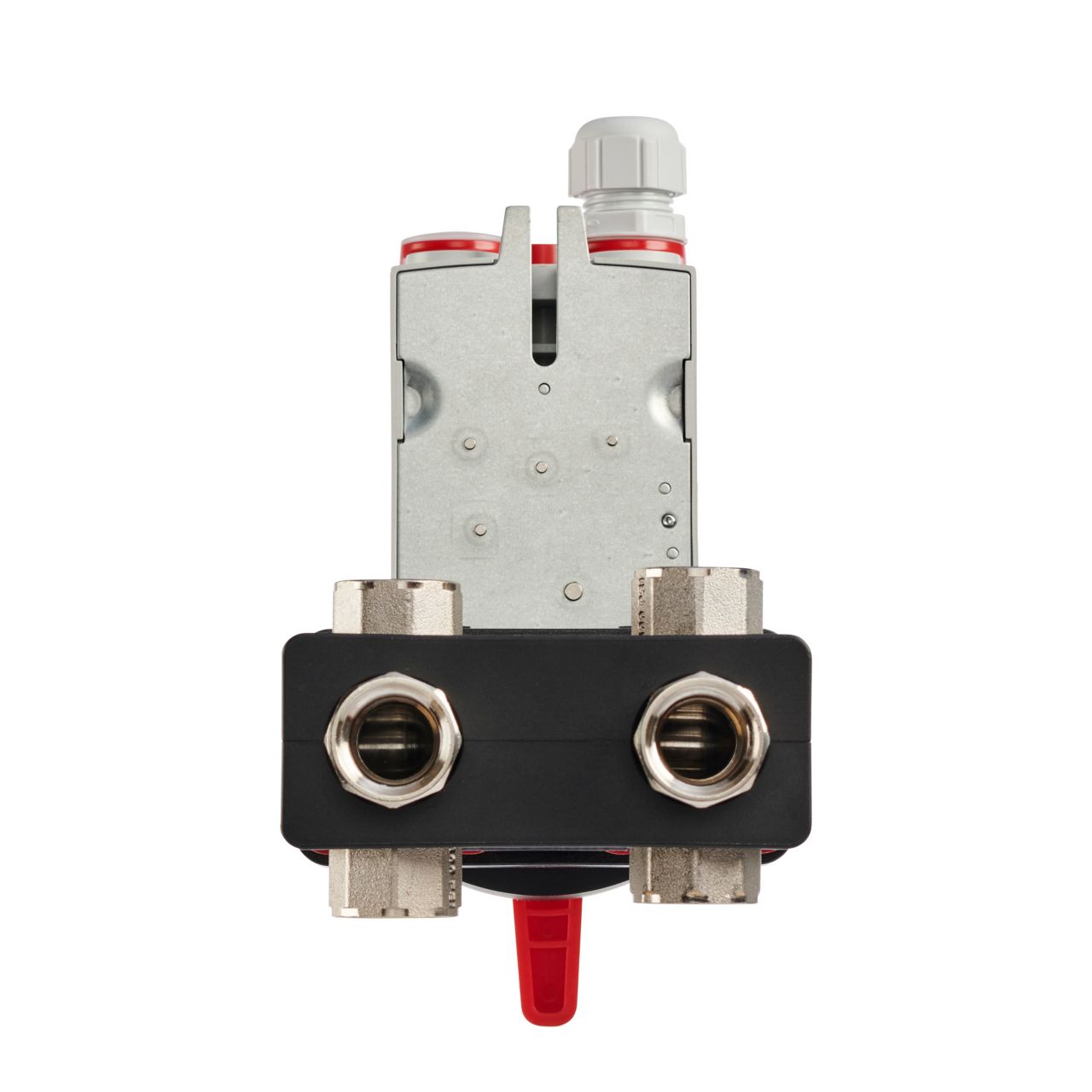

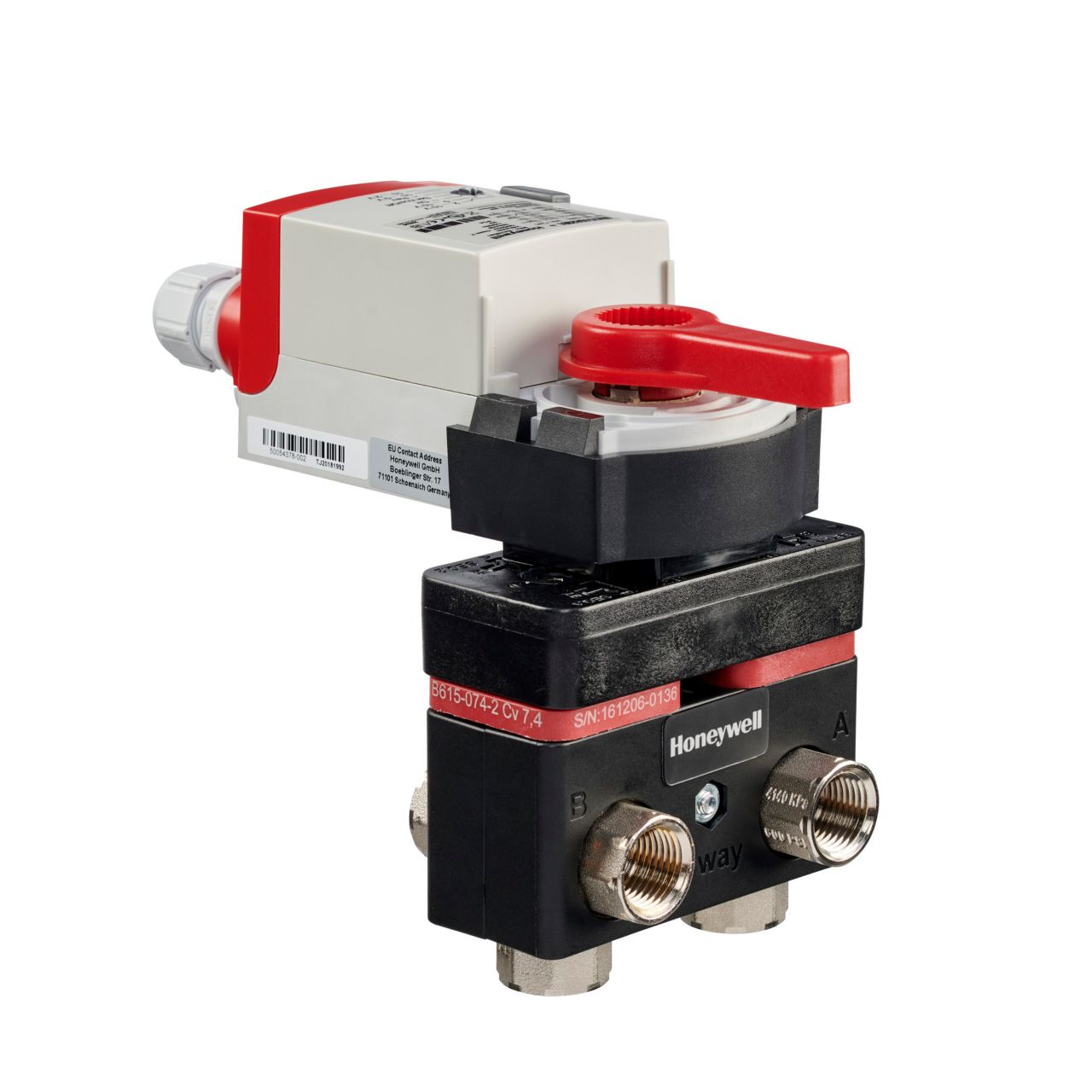

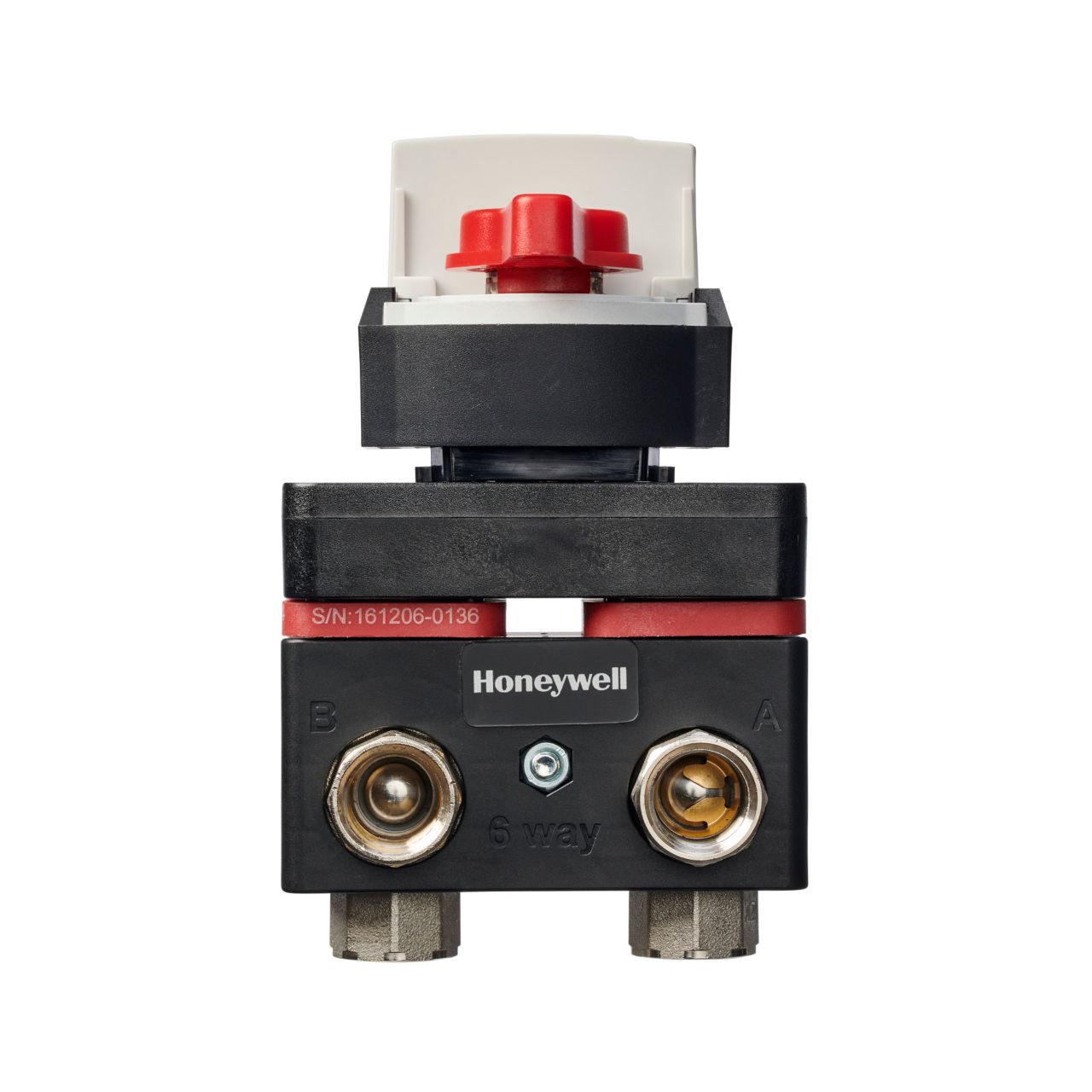

HONEYWELL VB6A074+008+AL 6-Way Control Valve with Modulating Actuator

Product Description

The Honeywell VB6A074+008+AL is a 6-way control valve designed for efficient change-over and control in four-pipe systems. This valve connects a single two-pipe heat exchanger and uses one modulating actuator for operation. The valve's unique design allows for simultaneous rotation of two balls linked to a stem, enabling the opening of supply and return ports during one control sequence while closing the other. This feature helps to prevent flow mixing, making it suitable for managing chilled or hot water in closed loop systems applied in chilled beam units, fan coil units, and small air handling coils.

• Cv values of 7.4 for sequence one and 0.8 for sequence two.
• Includes MN7510A2001 modulating actuator.
• Constructed with nickel-plated brass body and stainless steel trim.

Product Highlights

This valve ensures effective control of fluid flow and temperature regulation in HVAC systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A074+008+AL

Technical Specifications

• Model: VB6VALVE
• Valve Size: 1/2 inches
• Number of Ways: 6-Way
• Sequence 1 Cv: 7.4
• Sequence 2 Cv: 0.8
• Actuator Voltage: 24V
• Production Status: Active
• Condition: New
